Extension Housing Gasket - 4X4: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to TRANSFER CASE .
  2. Using the special tool, remove the output shaft retaining nut.
    Fig 1: Removing Output Shaft Retaining Nut
    G02775666Courtesy of FORD MOTOR CO.
  3. Disconnect the output shaft speed (OSS) sensor electrical connector.
    Fig 2: Disconnecting Output Shaft Speed Sensor Electrical Connector
    G02775667Courtesy of FORD MOTOR CO.

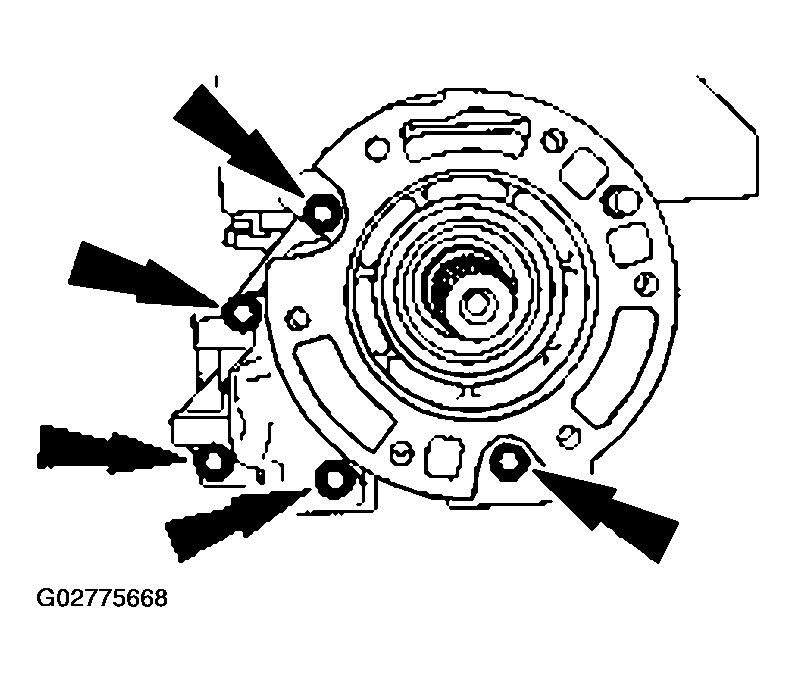

  4. Remove the bolts and the transmission extension housing.
    Fig 3: Removing Bolts And Transmission Extension Housing
    G02775668Courtesy of FORD MOTOR CO.

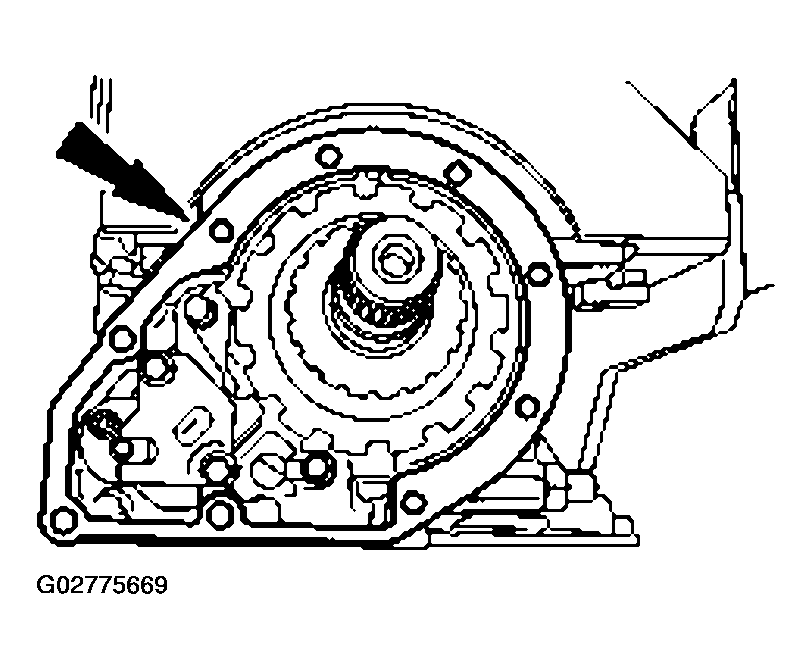

  5. Remove and discard the extension housing gasket.
    Fig 4: Removing Extension Housing Gasket
    G02775669Courtesy of FORD MOTOR CO.
