Extension Housing Gasket - 4X2: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the driveshaft. Refer to DRIVESHAFT .
Vehicles equipped with a fixed flange

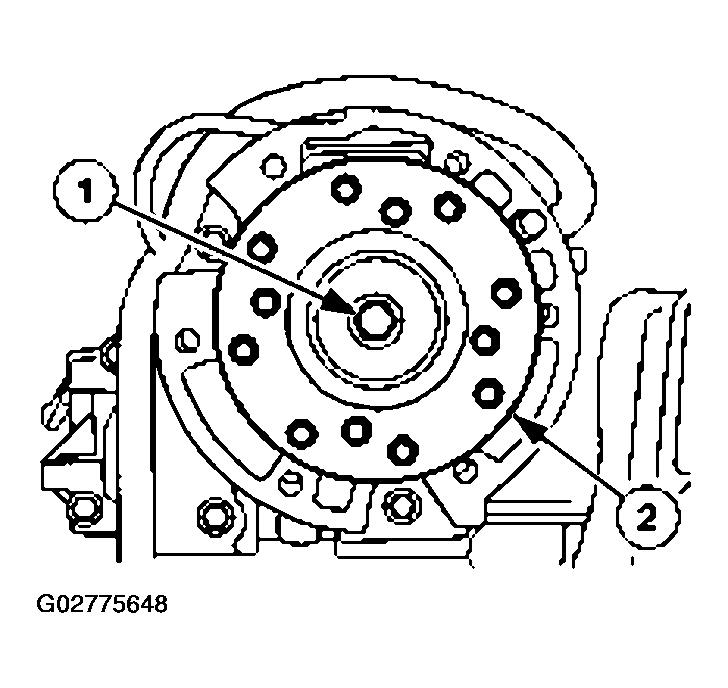

Remove the output shaft flange.
1. Remove and discard the output shaft flange bolt.
2. Remove the output shaft flange.

  Fig 1: Removing Output Shaft Flange
  Courtesy of FORD MOTOR CO.
All vehicles
Remove the transmission rear crossmember support insulator nuts.

Fig 2: Removing Transmission Rear Crossmember Support Insulator Nuts
Courtesy of FORD MOTOR CO.
Install a suitable transmission jack.

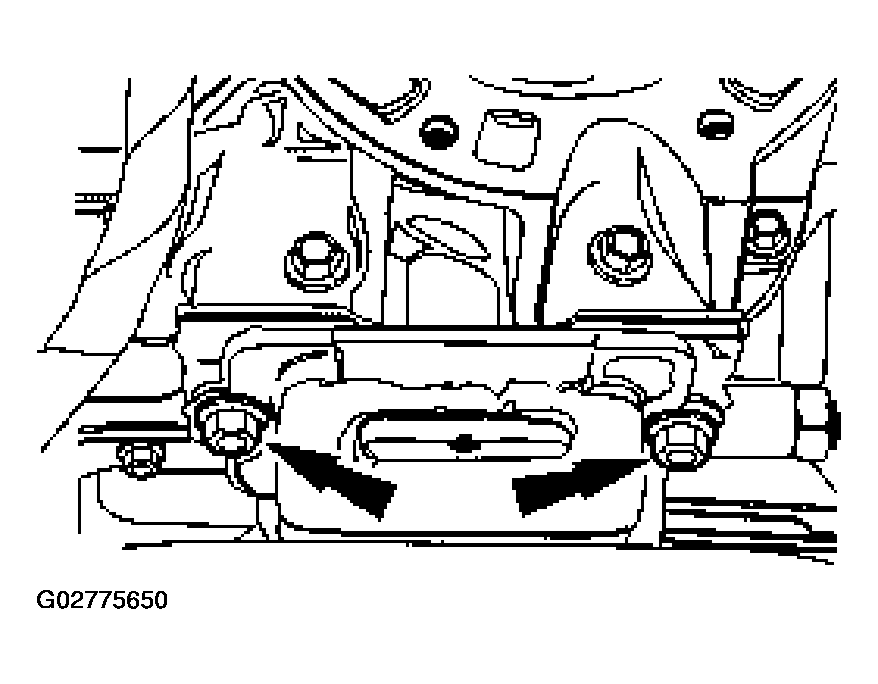

Remove the transmission rear crossmember support insulator bolts.

Fig 3: Removing Transmission Rear Crossmember Support Insulator Bolts
Courtesy of FORD MOTOR CO.

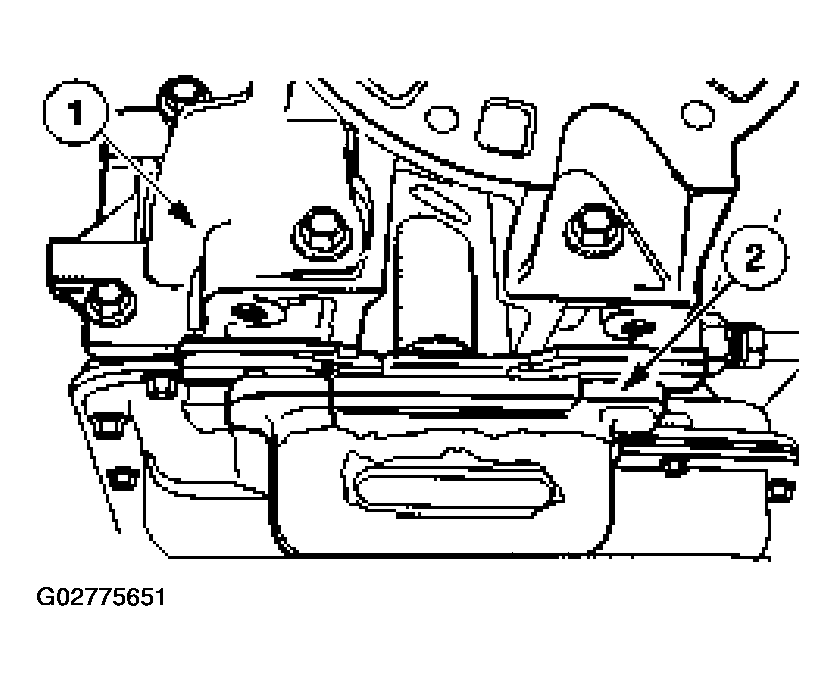

Remove the rear transmission mount.
1. Raise the transmission upward, off the rear crossmember support.
2. Remove the rear transmission mount.

  Fig 4: Removing Rear Transmission Mount
  Courtesy of FORD MOTOR CO.
Disconnect the output shaft speed (OSS) sensor electrical connector.

Fig 5: Disconnecting Output Shaft Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

Vehicles equipped with a fixed flange
Using the special tool, remove the output shaft retaining nut.

Fig 6: Removing Output Shaft Retaining Nut
Courtesy of FORD MOTOR CO.

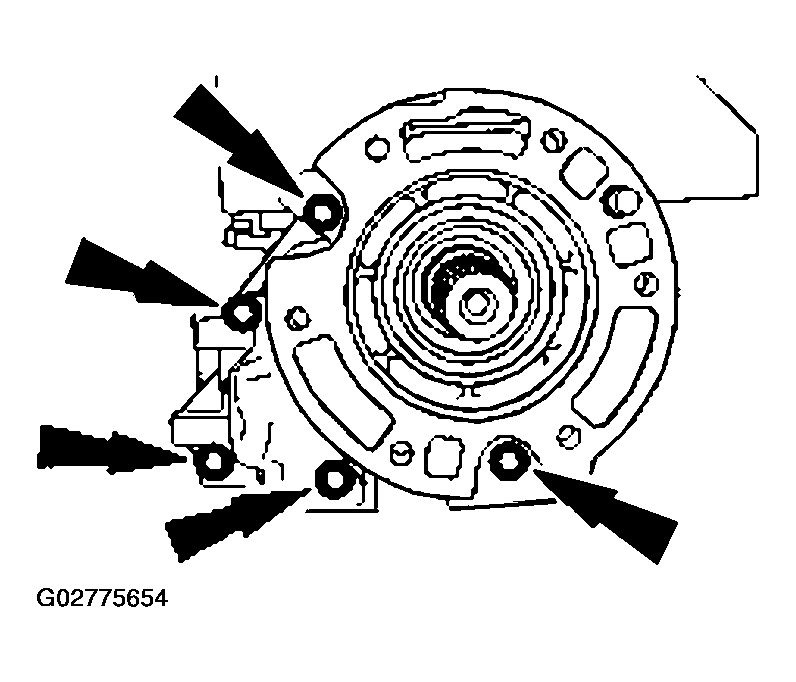

Remove the bolts and the transmission extension housing.

Fig 7: Removing Bolts And Transmission Extension Housing
Courtesy of FORD MOTOR CO.

Vehicles not equipped with a fixed flange

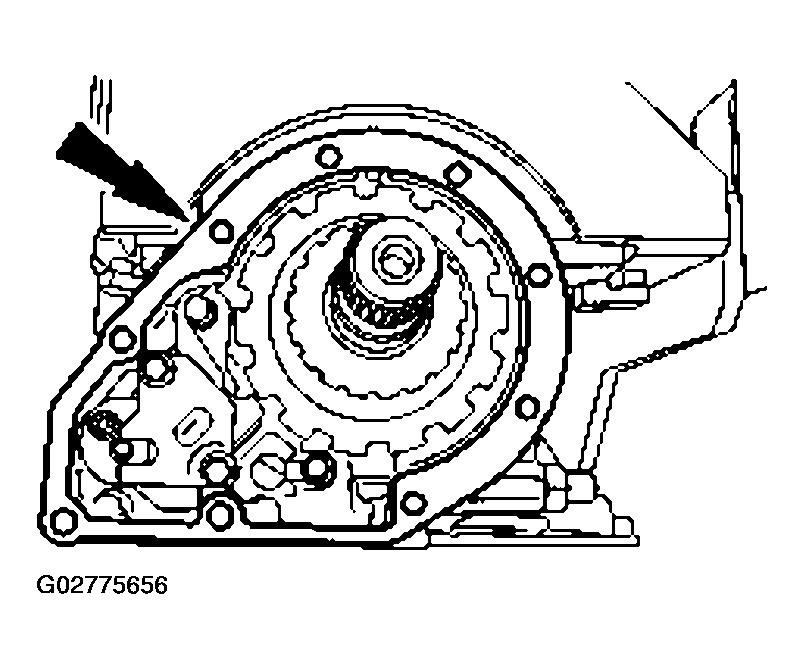

Remove the bolts and the transmission extension housing.

Fig 8: Removing Bolts And Transmission Extension Housing
Courtesy of FORD MOTOR CO.

All vehicles
Remove and discard the extension housing gasket.

Fig 9: Removing Extension Housing Gasket
Courtesy of FORD MOTOR CO.
