Solenoid Body: Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

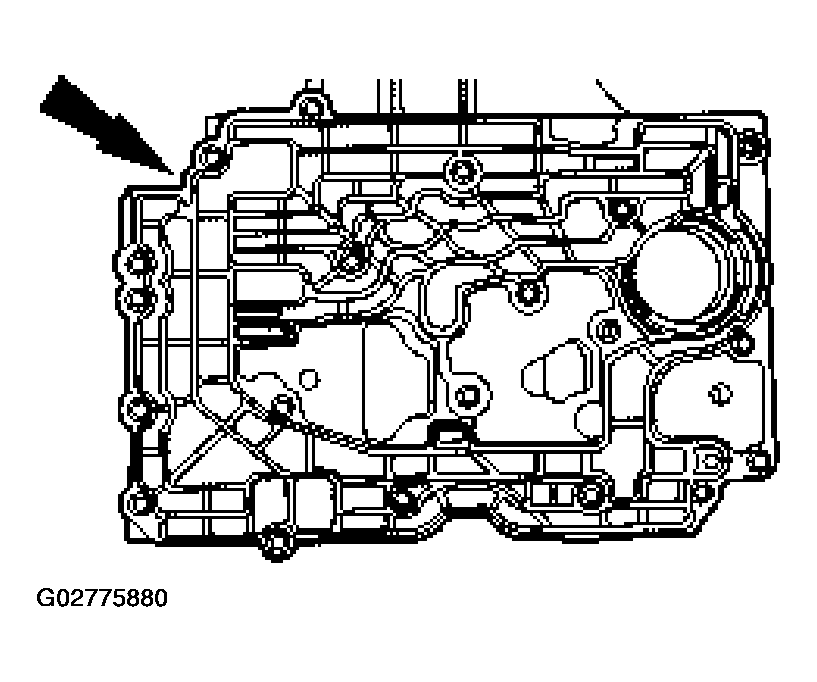

Install a new gasket and the backing plate.

Fig 1: Installing Gasket And Backing Plate
Courtesy of FORD MOTOR CO.
Install a new filter screen gasket.

Fig 2: Installing Filter Screen Gasket
Courtesy of FORD MOTOR CO.

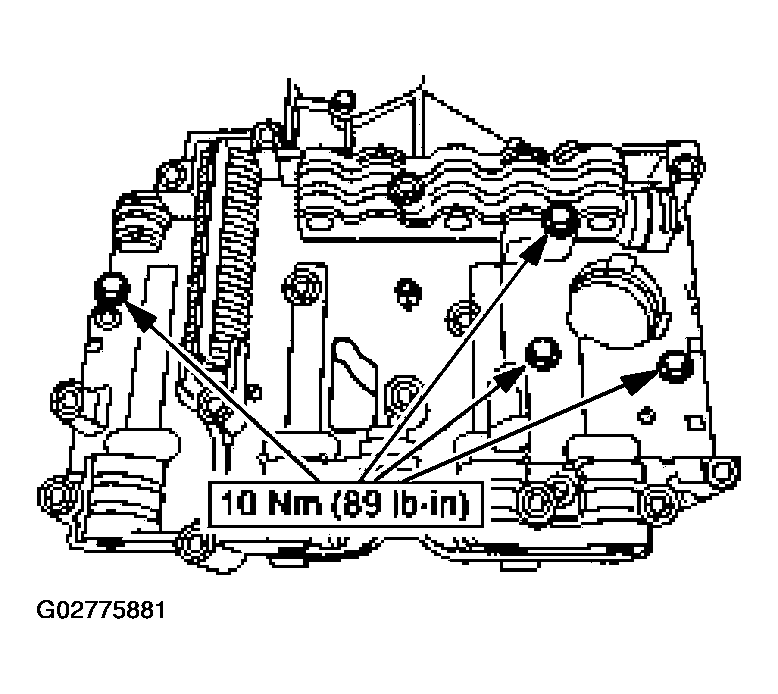

NOTE: Tighten the bolts in a crisscross pattern to prevent the gasket from becoming distorted.

Fig 3: Tightening Bolts In Crisscross Pattern

Courtesy of FORD MOTOR CO.

Assemble the top and bottom halves of the solenoid body.

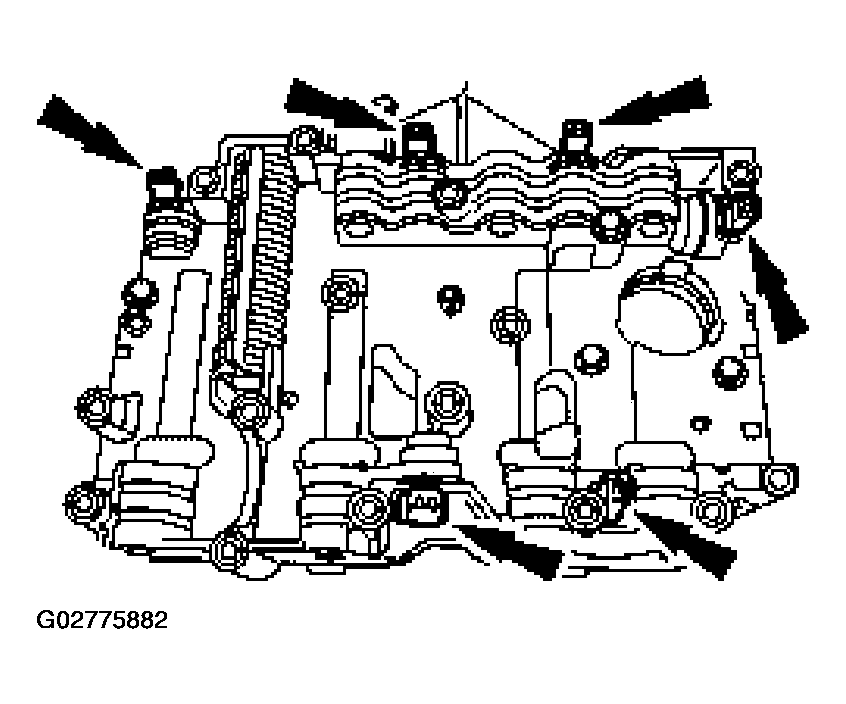

Install the pressure switches with the "W" retaining clips (if equipped) and the TFT sensor.

Fig 4: Installing Pressure Switches With "W" Retaining Clips
Courtesy of FORD MOTOR CO.

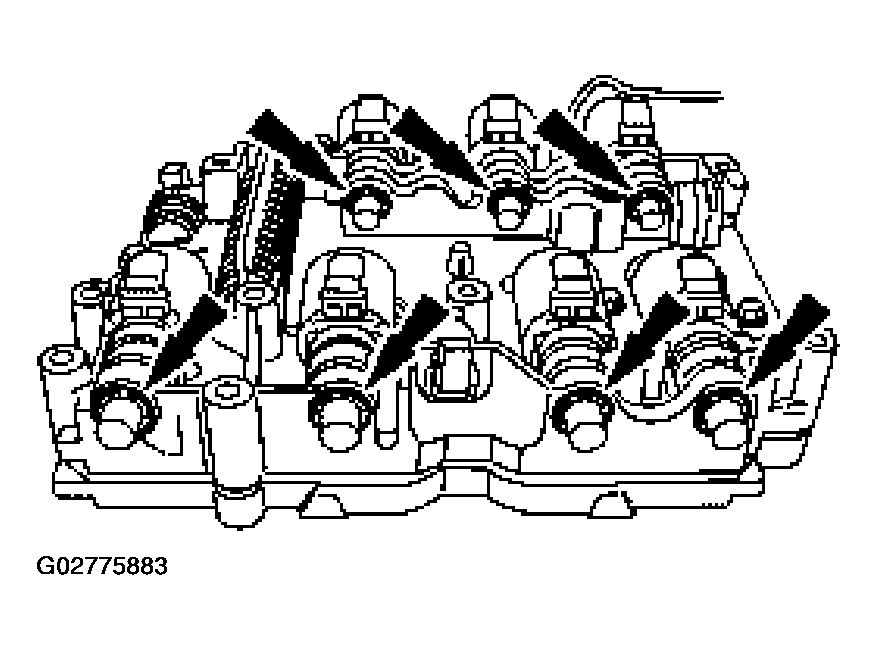

Install the shift solenoids with the "E" retaining clips.

Fig 5: Installing Shift Solenoids With "E" Retaining Clips
Courtesy of FORD MOTOR CO.
Prior to installing the O-ring, push the solenoid body harness electrical connector through the solenoid body without any O-rings on it at all and twist it to lock it in place. Install a new O-ring on the solenoid body harness electrical connector in the uppermost groove.

Fig 6: Installing O-Ring
Courtesy of FORD MOTOR CO.

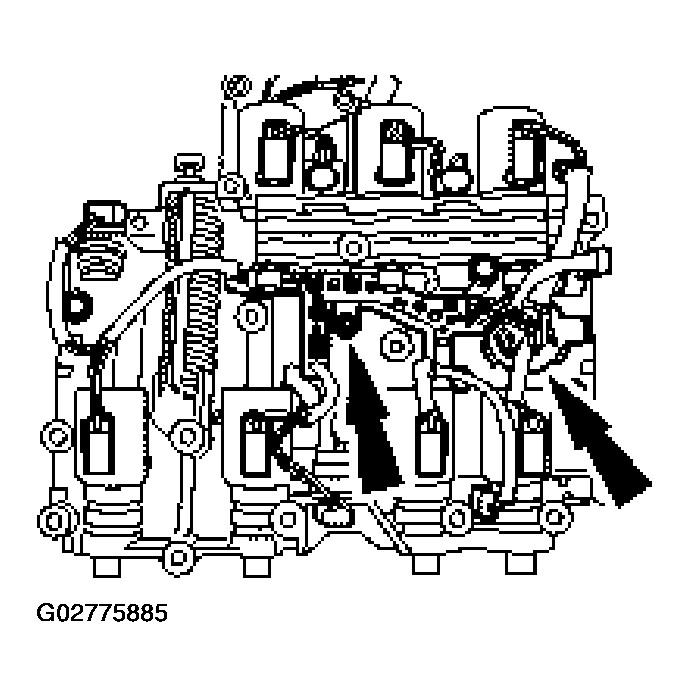

Install the solenoid body harness and connect the connectors.

Fig 7: Installing Solenoid Body Harness And Connect Connectors
Courtesy of FORD MOTOR CO.

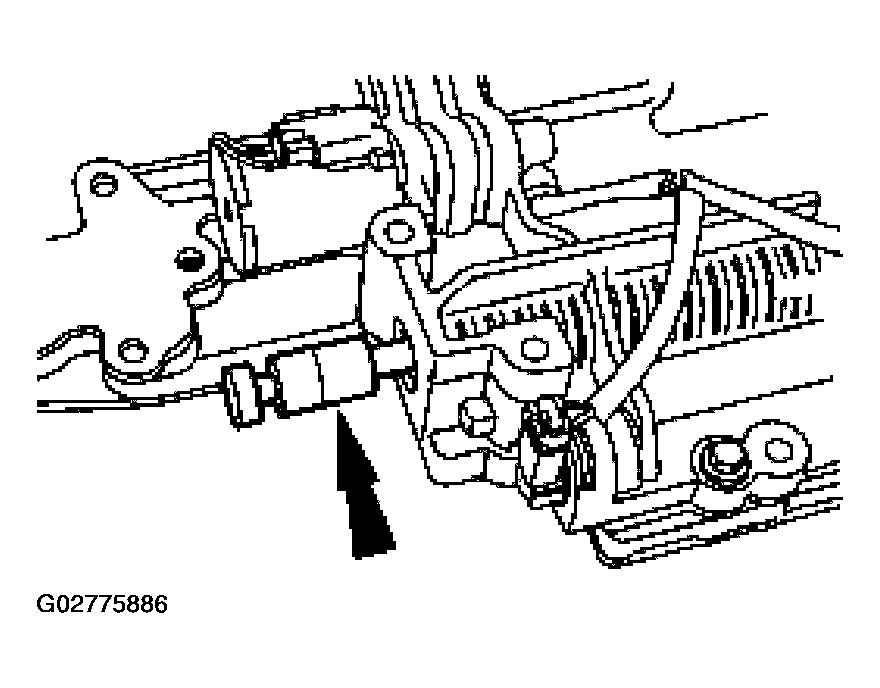

Install the manual valve.

Fig 8: Installing Manual Valve
Courtesy of FORD MOTOR CO.
