Forward GEARTRAIN Assembly - Disassembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the special tools.

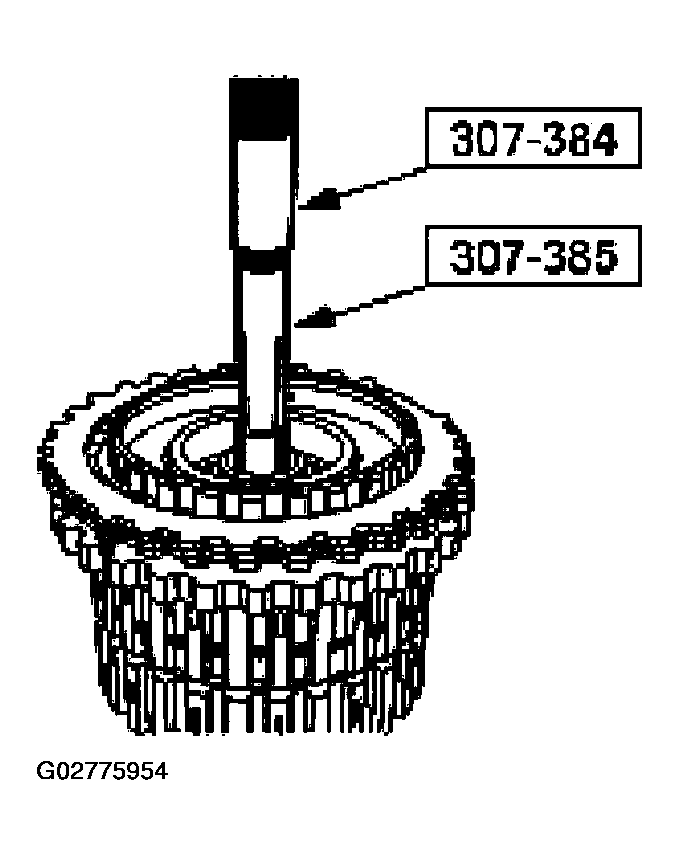

    Fig 1: Removing Special Tools
    G02775954Courtesy of FORD MOTOR CO.
  2. Remove the intermediate clutch plates and pressure plate.

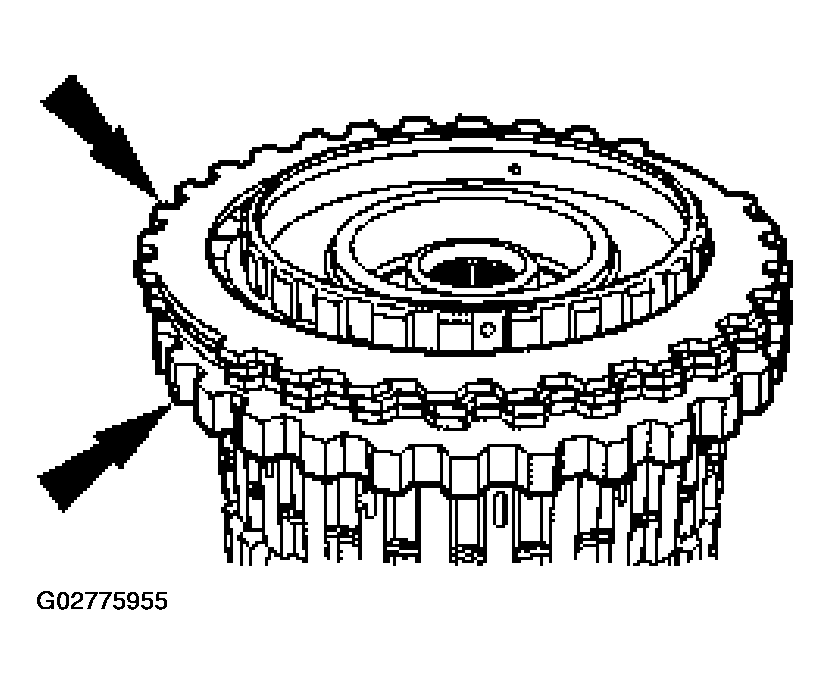

    Fig 2: Removing Intermediate Clutch Plates And Pressure Plate
    G02775955Courtesy of FORD MOTOR CO.
  3. Remove the direct clutch assembly.
    Fig 3: Removing Direct Clutch Assembly
    G02775956Courtesy of FORD MOTOR CO.
