Forward GEARTRAIN Assembly - Assembly: Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

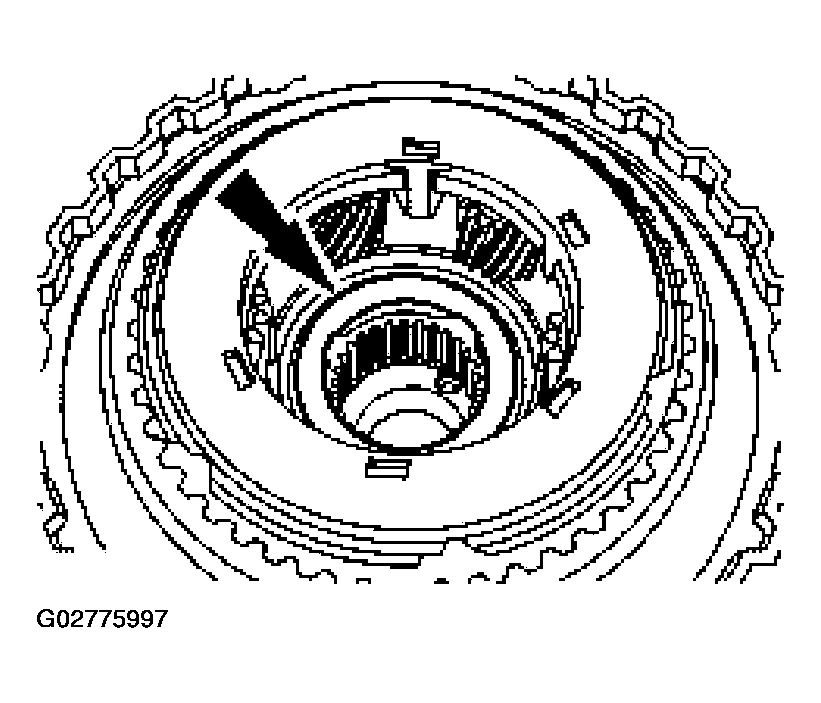

Install the forward clutch assembly into the direct clutch assembly.

Fig 1: Installing Forward Clutch Assembly
Courtesy of FORD MOTOR CO.

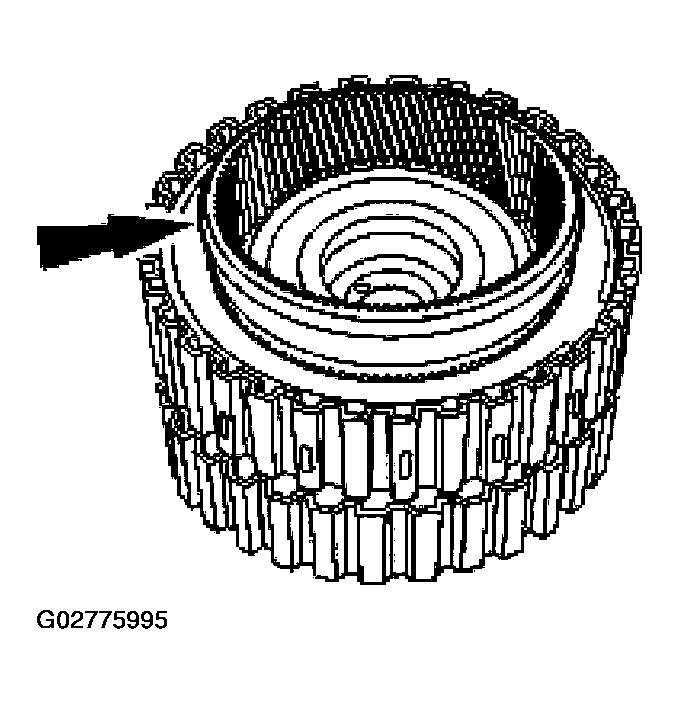

Install the No. 9 forward clutch bearing.

Fig 2: Installing Forward Clutch Bearing
Courtesy of FORD MOTOR CO.

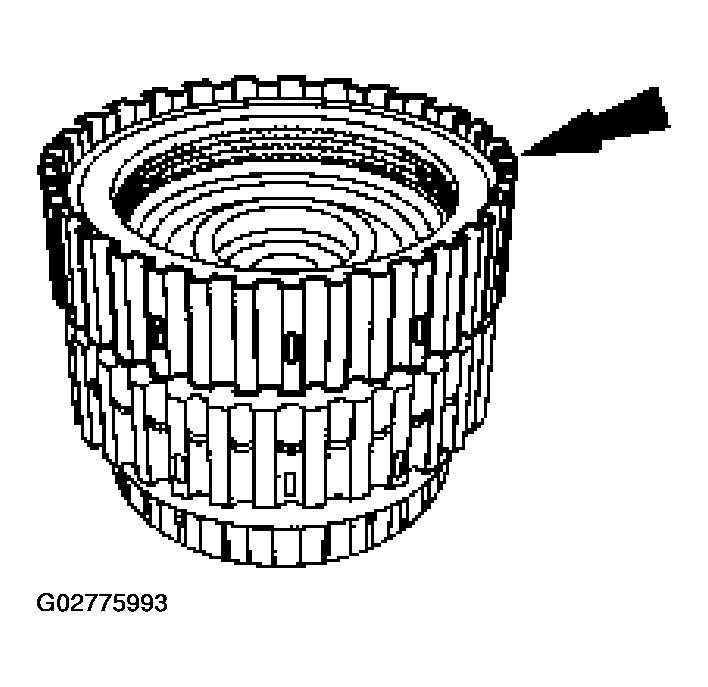

Install the forward hub and ring gear assembly.

Fig 3: Installing Forward Hub And Ring Gear Assembly
Courtesy of FORD MOTOR CO.

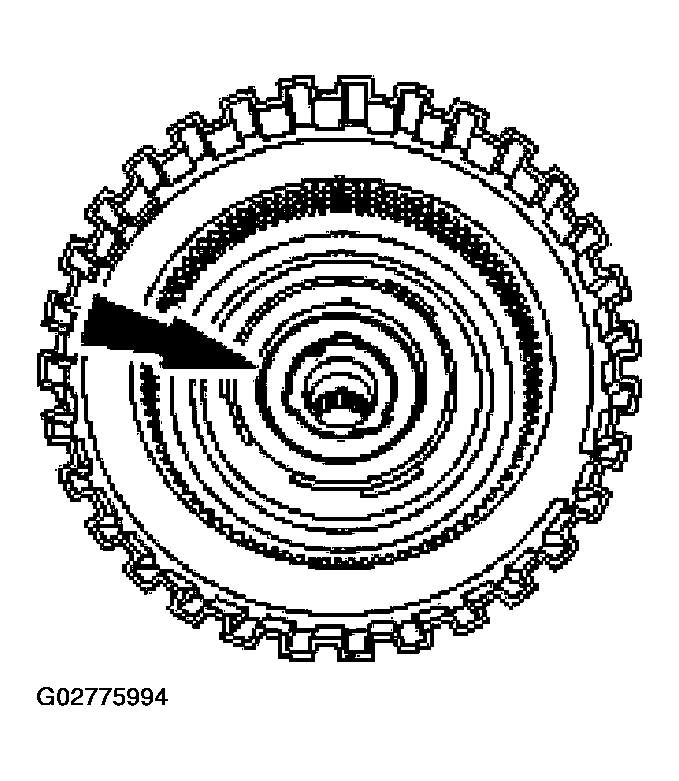

Install the planet carrier and bearing assembly.

Fig 4: Installing Planet Carrier And Bearing Assembly
Courtesy of FORD MOTOR CO.
Install the No. 12 thrust bearing onto the forward carrier assembly.

Fig 5: Installing Thrust Bearing
Courtesy of FORD MOTOR CO.
Install the input shell assembly.
- Make sure the tab is engaged in the forward clutch assembly.

  Fig 6: Installing Input Shell Assembly
  Courtesy of FORD MOTOR CO.
Install the special tools. Position aside to use during assembly.

Fig 7: Installing Special Tools
Courtesy of FORD MOTOR CO.
