Transmission Failure Mode Effects Management (FMEM), Shift Concerns: Erratic/Hunting or Erratic Scheduling

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The pressure switches listed in this routine will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

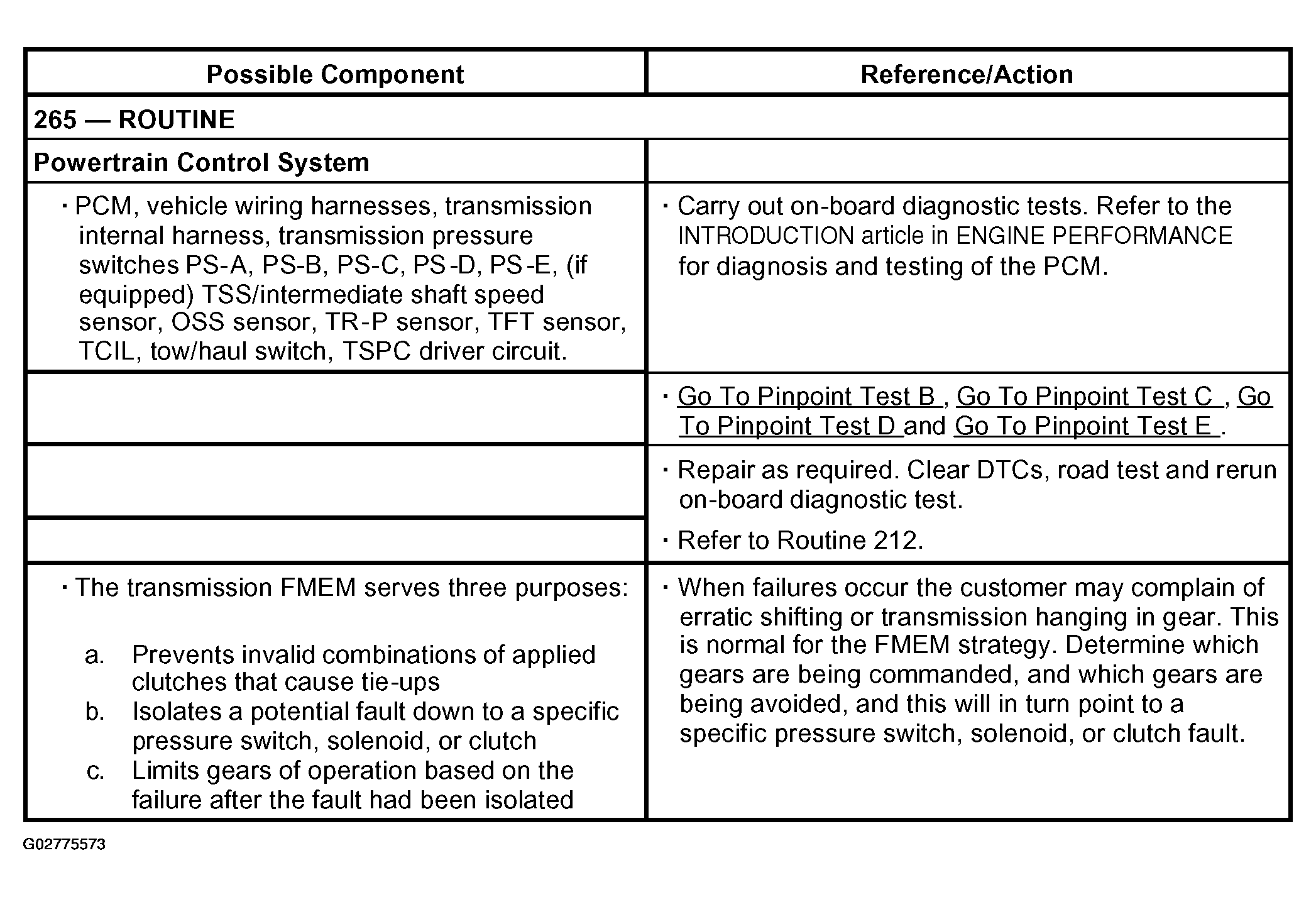

Fig 1: Diagnostic Routines Chart (Transmission Failure Mode Effects Management Shift Concerns)
G02775573Courtesy of FORD MOTOR CO.
