Timing Concerns - Erratic/Hunting (Some/All)

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The pressure switches listed in this routine will not be applicable to all vehicle applications. Some vehicles will not have the pressure switches installed in the valve body.

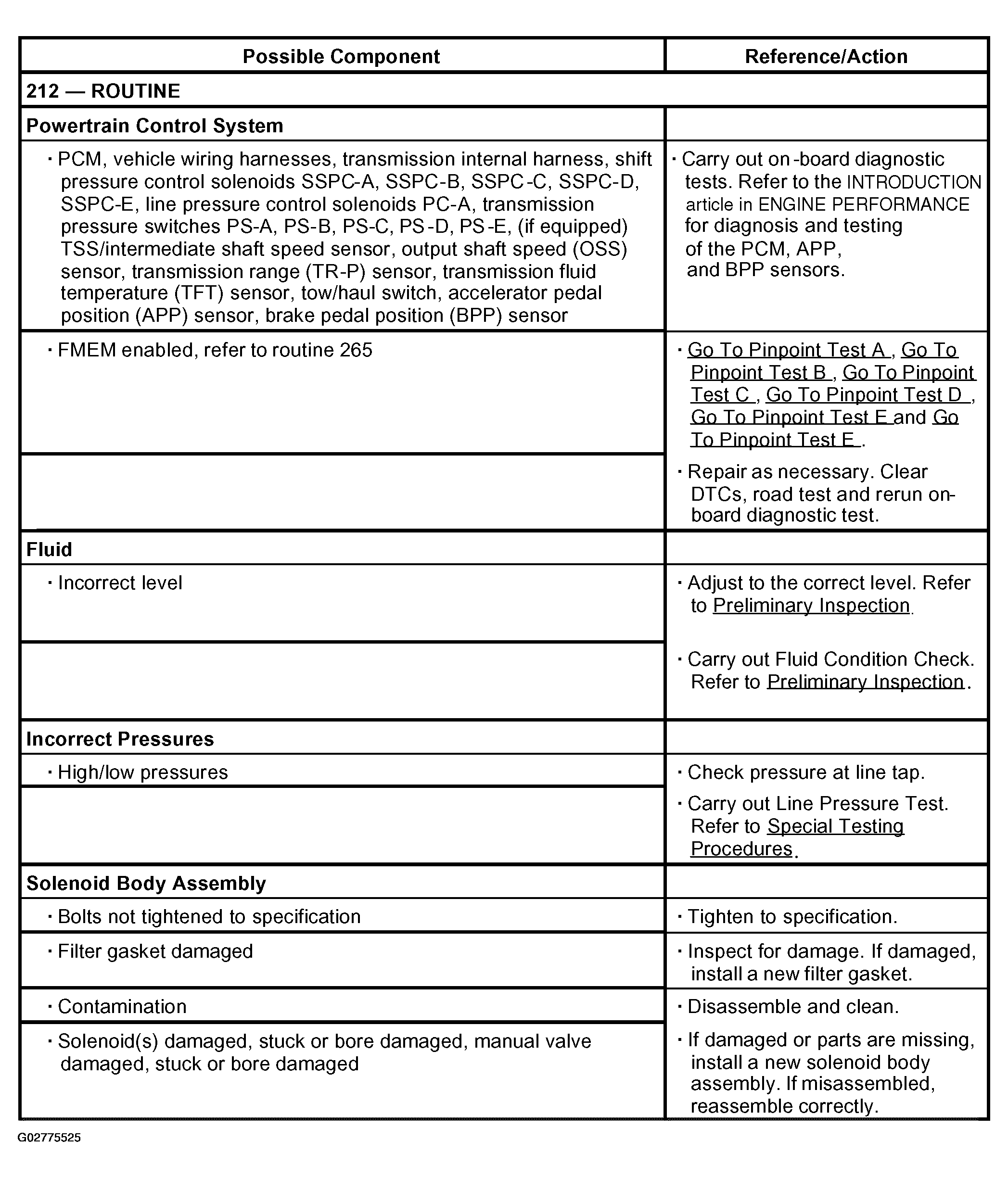

Fig 1: Diagnostic Routines Chart (Timing Concerns - Erratic/Hunting) (1 Of 3)

Courtesy of FORD MOTOR CO.

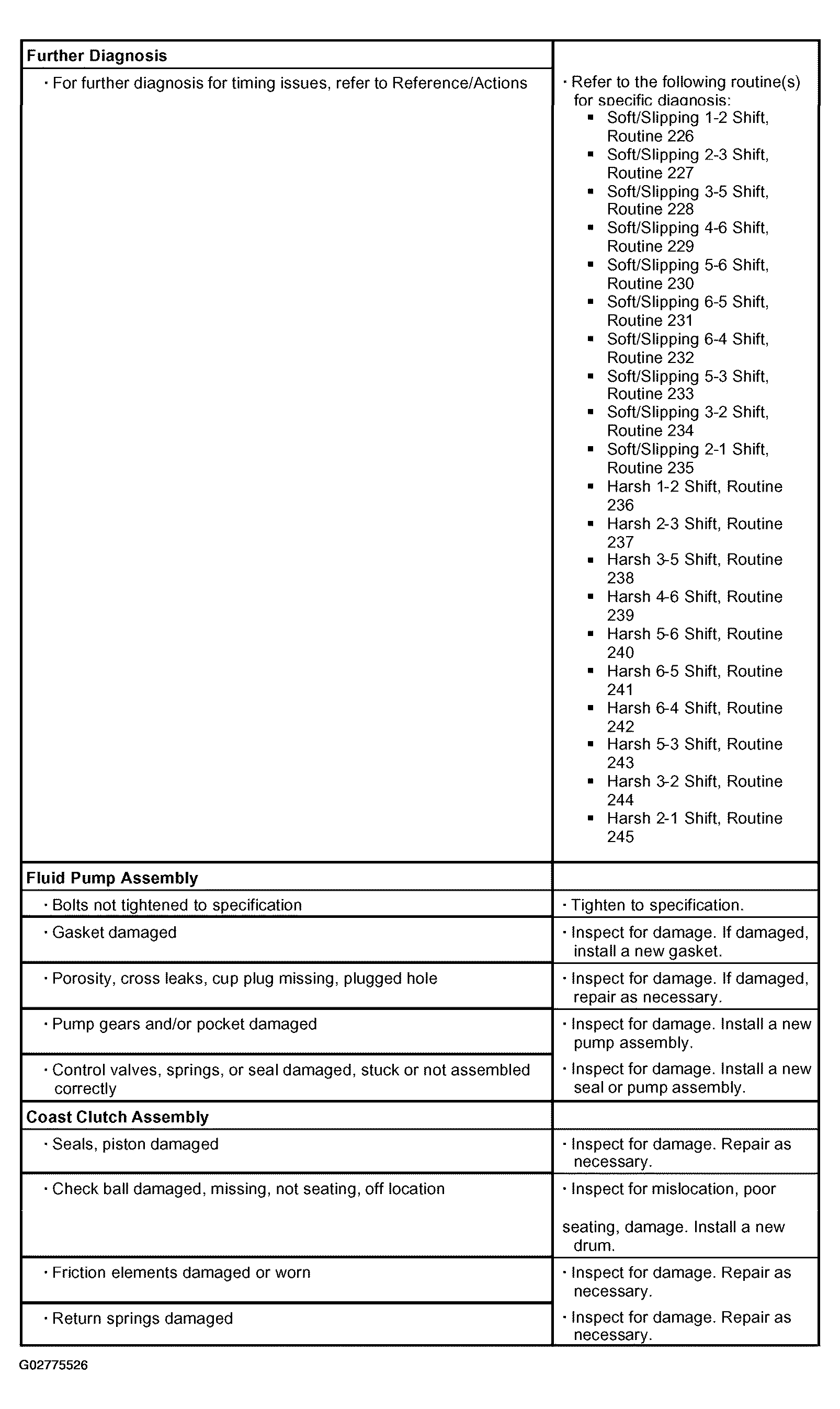

Fig 2: Diagnostic Routines Chart (Timing Concerns - Erratic/Hunting) (2 Of 3)

Courtesy of FORD MOTOR CO.

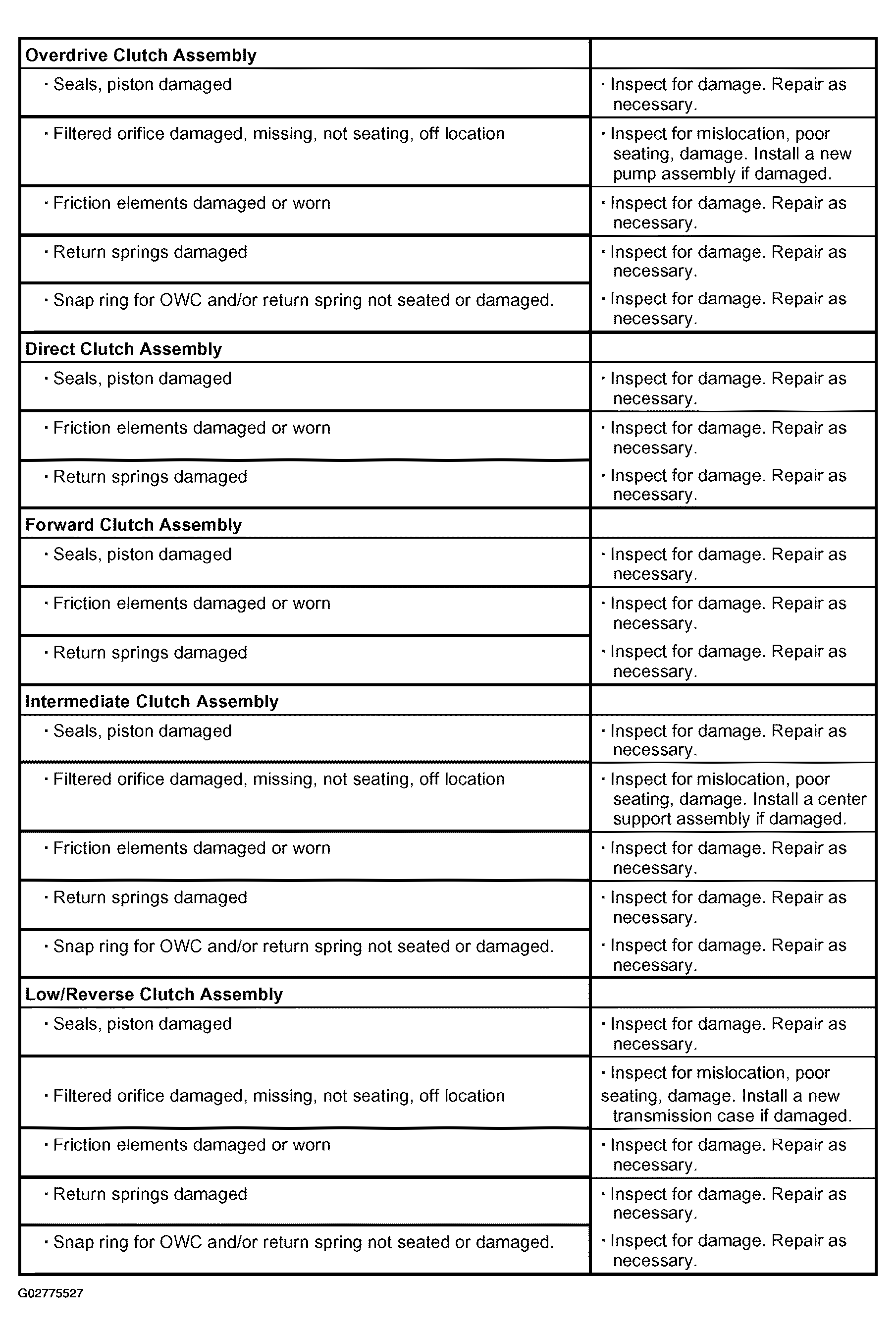

Fig 3: Diagnostic Routines Chart (Timing Concerns - Erratic/Hunting) (3 Of 3)

Courtesy of FORD MOTOR CO.
