Transmission Fluid Drain & Refill: Refill

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use only clean automatic transmission fluid.
  2. Once the fluid exchange has been completed, disconnect the flush and fill machine. Reconnect any disconnected fluid cooler tubes.
  3. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).


  1. After the torque converter has drained, install a new drain plug.

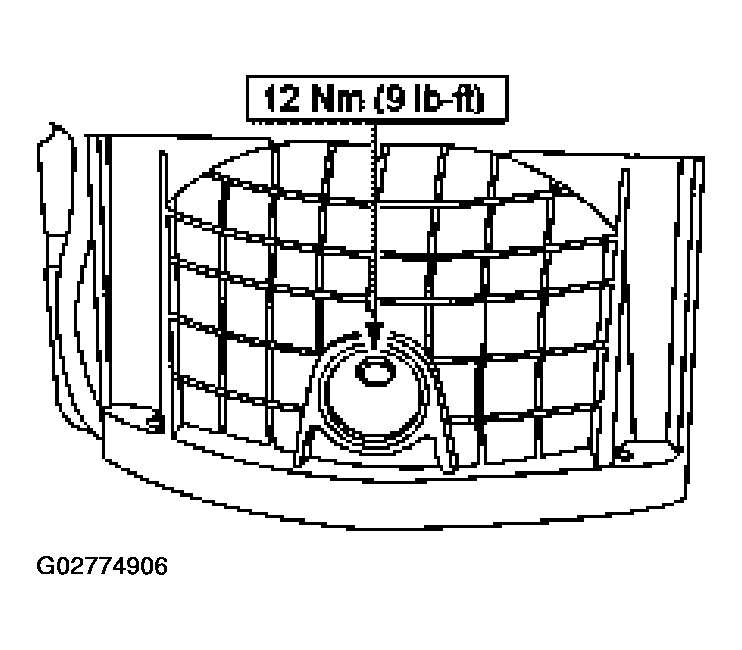

    Fig 1: Installing A New Drain Plug
    G02774906Courtesy of FORD MOTOR CO.
  2. Install the torque converter drain plug cover.

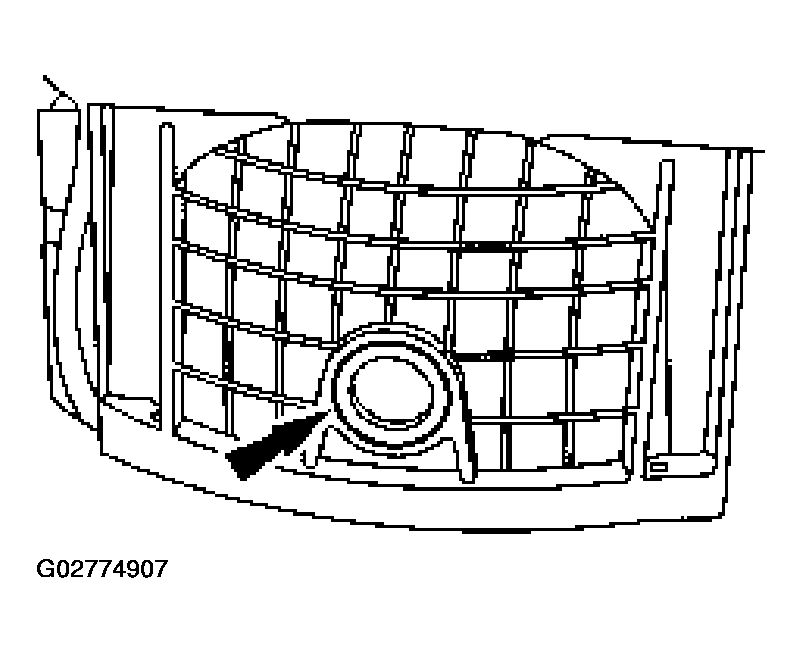

    Fig 2: Installing Torque Converter Drain Plug Cover
    G02774907Courtesy of FORD MOTOR CO.

    All vehicles

  3. Install the drain plug.

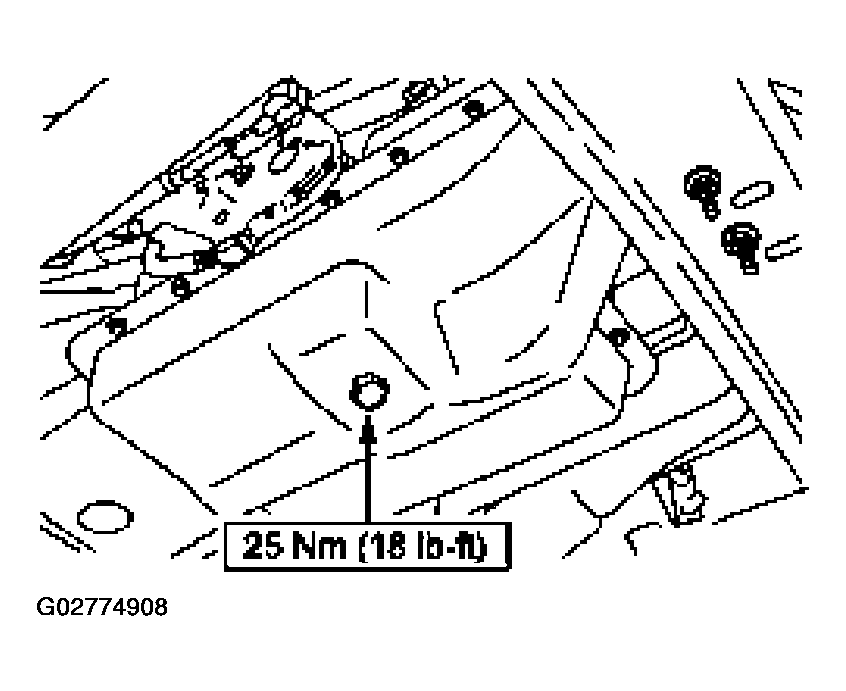

    Fig 3: Installing Drain Plug
    G02774908Courtesy of FORD MOTOR CO.
    4. CAUTION: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.
  4. Fill the transmission.
    • Add 6.2 liters (6.5 qts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
  5. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
  6. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).


    NOTE: Do not discard the gasket unless damaged. This is a reusable gasket.
    NOTE: Apply a light coat of petroleum jelly to hold the gasket to the fluid pan.

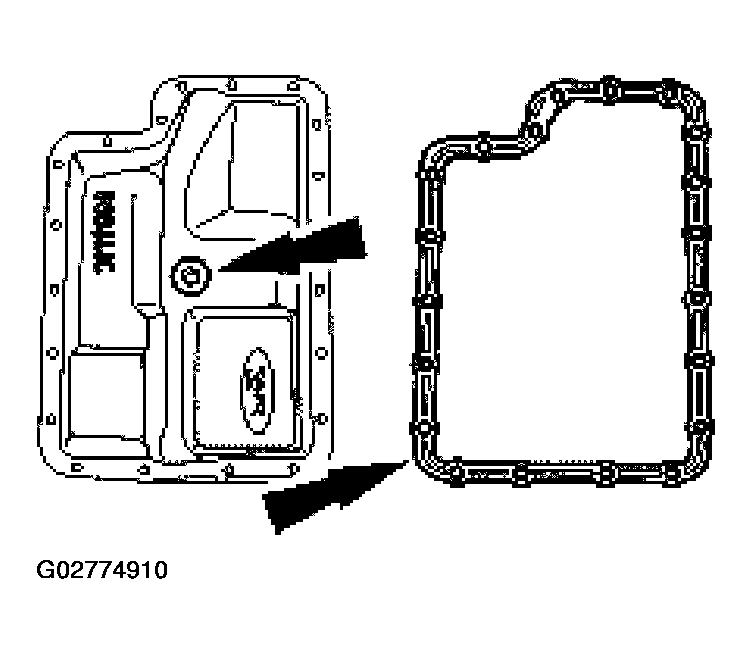

    Fig 1: Positioning Gasket Onto Clean Fluid Pan
    G02774910Courtesy of FORD MOTOR CO.
  1. Position the gasket onto the clean fluid pan. Make sure the magnet is positioned over the dimple in the fluid pan.
  2. Install the pan with the gasket. Alternately tighten the bolts.
    Fig 2: Installing Pan With Gasket
    G02774911Courtesy of FORD MOTOR CO.
    3. CAUTION: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.
  3. Fill the transmission.
    • Add 6.2 liters (6.5 qts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
  4. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
  5. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).


  1. After the torque converter has drained, install a new drain plug.

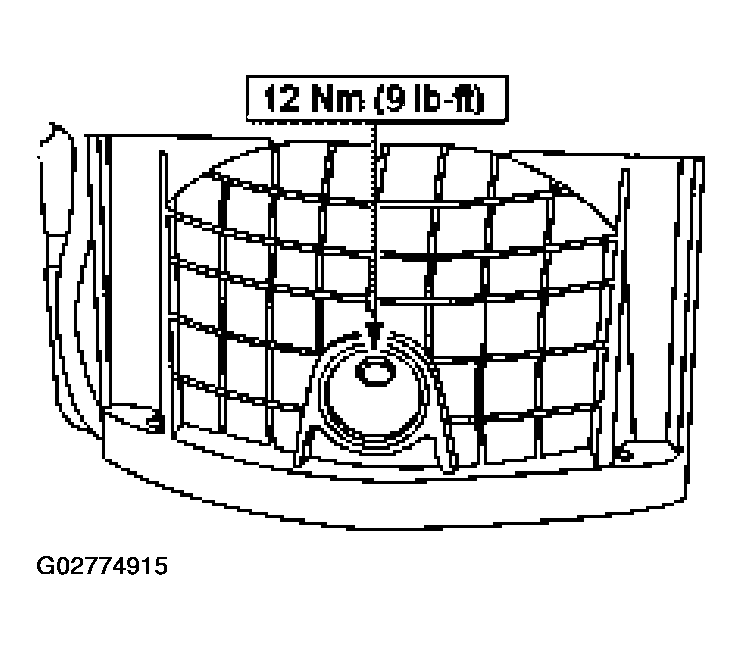

    Fig 1: Installing A New Drain Plug
    G02774915Courtesy of FORD MOTOR CO.
  2. Install the torque converter drain plug cover.

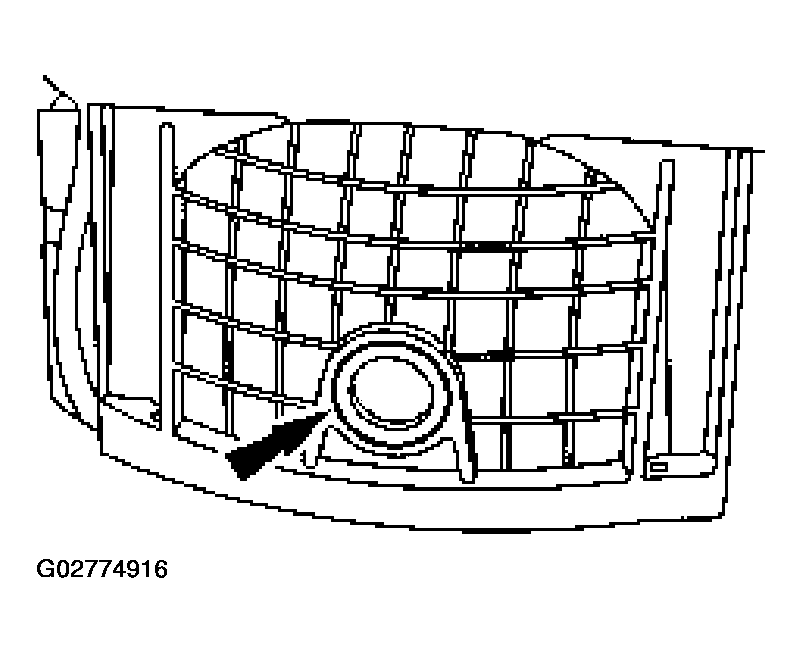

    Fig 2: Installing Torque Converter Drain Plug Cover
    G02774916Courtesy of FORD MOTOR CO.

    All vehicles

  3. Install the pan with the gasket. Alternately tighten the bolts.
    Fig 3: Installing Pan With Gasket
    G02774917Courtesy of FORD MOTOR CO.
    4. CAUTION: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.
  4. Fill the transmission.
    • Add 6.2 liters (6.5 qts) of clean automatic transmission fluid to the transmission through the fluid filler tube.
  5. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
  6. With the engine running and the transmission at normal operating temperature 66-77°C (150-170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed, add fluid in increments of 0.24-liter (0.5-pint) until the correct level is achieved (fluid should be in the cross-hatched area of the fluid level indicator).
