Transmission Fluid Drain & Refill: Draining

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Always refer to the instructions supplied with the flush and fill machine.
NOTE: Draining fluid from the transmission by removing only the fluid pan is acceptable for vehicles that do not have a torque converter drain plug, and for normal or severe duty fluid maintenance.
NOTE: A new procedure for draining and adding transmission fluid, using a suitable transmission flush and fill machine, has been added. The following procedure has different methods for draining and refilling the listed vehicle types:

Use the method that is applicable to your vehicle.

All vehicles using a suitable flush and fill machine

  1. With the vehicle in NEUTRAL position it on a hoist. Refer to Jacking & Lifting .
  2. Use a suitable flush and fill machine to change the fluid.
  3. When connecting the flush and fill machine, connect the machine to the fluid cooler tube after the fluid cooler on the cooler return line. This will help remove any foreign material trapped in the fluid coolers.


Vehicles equipped with a fluid pan and torque converter drain plug

  1. With the vehicle in NEUTRAL position it on a hoist. Refer to Jacking & Lifting .
  2. Remove the drain plug and allow the fluid to drain.
    Fig 1: Removing Drain Plug And Fluid-Drain
    G02774903Courtesy of FORD MOTOR CO.
  3. Remove the torque converter drain plug cover.
    Fig 2: Removing Torque Converter Drain Plug Cover
    G02774904Courtesy of FORD MOTOR CO.
  4. Remove the torque converter drain plug and discard.
    Fig 3: Removing Torque Converter Drain Plug
    G02774905Courtesy of FORD MOTOR CO.

    All vehicles

  5. Allow the fluid to drain.
    6. NOTE: If equipped with a radiator in-tank transmission fluid cooler, the cooler will need to be flushed.
  6. Only flush the cooler tubes, in-tank fluid cooler and the bypass valve if carrying out a transmission overhaul. Vehicles equipped with auxiliary OTA coolers cannot be flushed completely. Only new coolers should be installed. Refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .


Vehicles not equipped with a fluid pan or a torque converter drain plug

  1. With the vehicle in NEUTRAL position it on a hoist. Refer to Jacking & Lifting .
    2. NOTE: Do not discard the fluid pan gasket unless damaged. This is a reusable gasket.
  2. Remove the transmission fluid pan and gasket.
    1. Loosen, but do not remove the bolts.
    2. Remove the front and side bolts.
    3. Lower the front of the fluid pan and allow the fluid to drain.
    4. Remove the remaining fluid pan bolts and the fluid pan.
      Fig 1: Removing Remaining Fluid Pan Bolts And Fluid Pan
      G02774909Courtesy of FORD MOTOR CO.
  3. Do not remove or install a new fluid filter.
    4. NOTE: If equipped with a radiator in-tank transmission fluid cooler, the cooler will need to be flushed.
  4. Only flush the cooler tubes, in-tank fluid coolers and the bypass valve if carrying out a transmission overhaul. Vehicles equipped with auxiliary OTA coolers cannot be flushed completely. Only new coolers should be installed. Refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .


Vehicles equipped with a torque converter drain plug and without a fluid pan drain plug

  1. With the vehicle in NEUTRAL position it on a hoist. Refer to Jacking & Lifting .
    2. NOTE: Do not discard the fluid pan gasket unless damaged. This is a reusable gasket.
  2. Remove the transmission fluid pan and gasket.
    1. Loosen, but do not remove the bolts.
    2. Remove the front and side bolts.
    3. Lower the front of the fluid pan and allow the fluid to drain.
    4. Remove the remaining fluid pan bolts and the fluid pan.
      Fig 1: Removing Remaining Fluid Pan Bolts And Fluid Pan
      G02774912Courtesy of FORD MOTOR CO.
  3. Do not remove or install a new fluid filter.
  4. Remove the torque converter drain plug cover.
    Fig 2: Removing Torque Converter Drain Plug Cover
    G02774913Courtesy of FORD MOTOR CO.
  5. Remove the torque converter drain plug and discard.

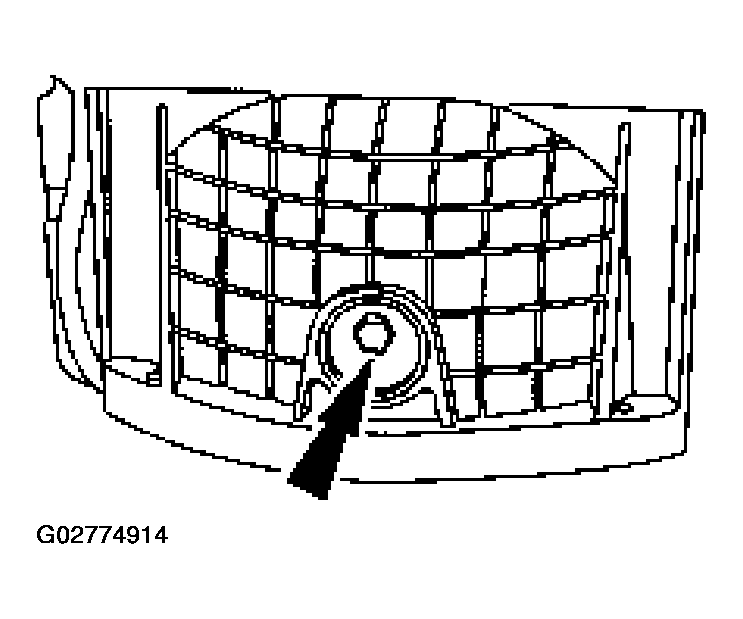

    Fig 3: Removing Torque Converter Drain Plug
    G02774914Courtesy of FORD MOTOR CO.

    All vehicles

  6. Allow the fluid to drain.
    7. NOTE: If equipped with a radiator in-tank transmission fluid cooler, the cooler will need to be flushed.
  7. Only flush the cooler tubes, in-tank fluid coolers and the bypass valve if carrying out a transmission overhaul. Vehicles equipped with auxiliary OTA coolers cannot be flushed completely. Only new coolers should be installed. Refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .
