Park System: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For internal park mechanism service, refer to MANUAL CONTROL LEVER SHAFT AND SEAL .
  1. Remove the extension housing and the extension housing gasket. Refer to EXTENSION HOUSING GASKET - F-SUPER DUTY  or EXTENSION HOUSING GASKET - EXCURSION .
  2. Remove the parking rod guide plate.
    1. Remove the bolts.
    2. Remove the parking rod guide plate.

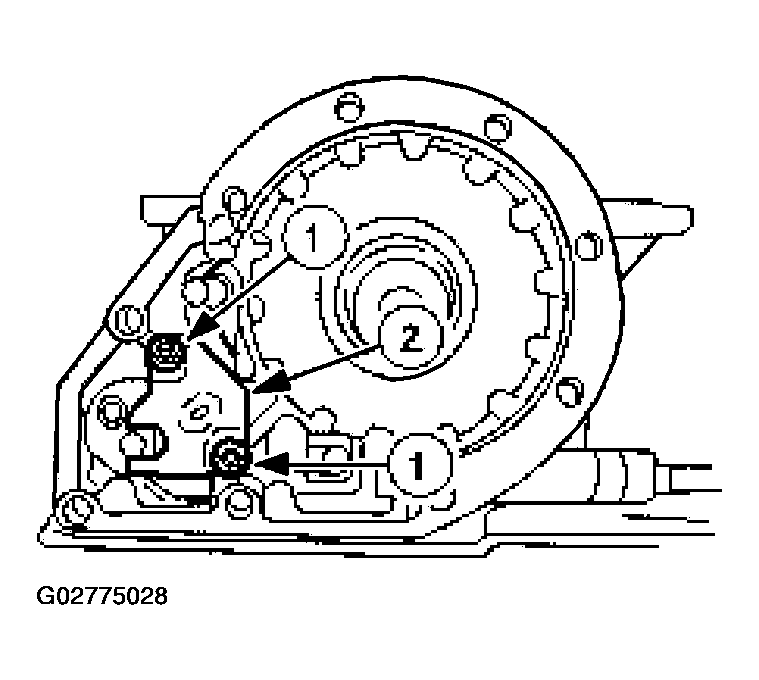

      Fig 1: Removing Parking Rod Guide Plate
      G02775028Courtesy of FORD MOTOR CO.
    3. NOTE: If the installation of a new park gear is required, refer to OUTPUT SHAFT - CHECK .
  3. Remove the park pawl shaft.
    1. Remove the park pawl return spring.
    2. Remove the park pawl.
    3. Remove the park pawl shaft.

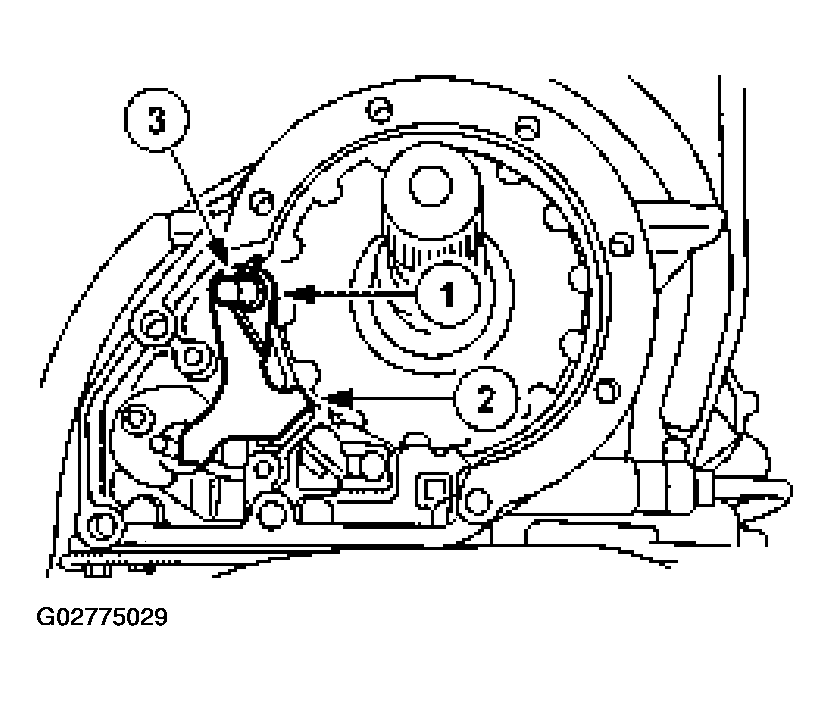

      Fig 2: Removing Park Pawl Shaft
      G02775029Courtesy of FORD MOTOR CO.
