Install the park pawl shaft.
1. Install the park pawl shaft.
2. Install the park pawl.
3. Install the park pawl return spring.

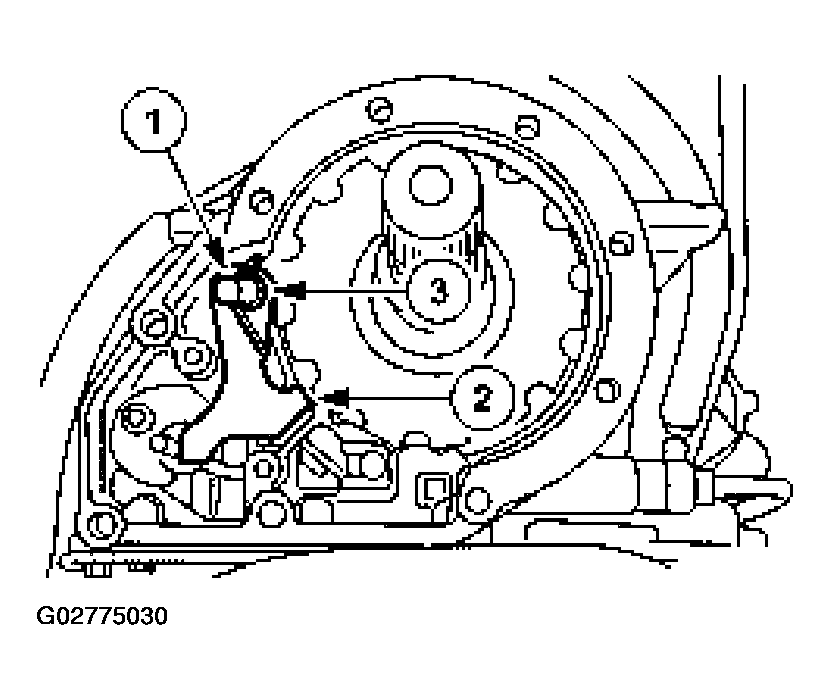

  Fig 1: Installing Park Pawl Shaft
  Courtesy of FORD MOTOR CO.
Install the parking rod guide plate.
1. Install the parking rod guide plate.
2. Install the bolts.

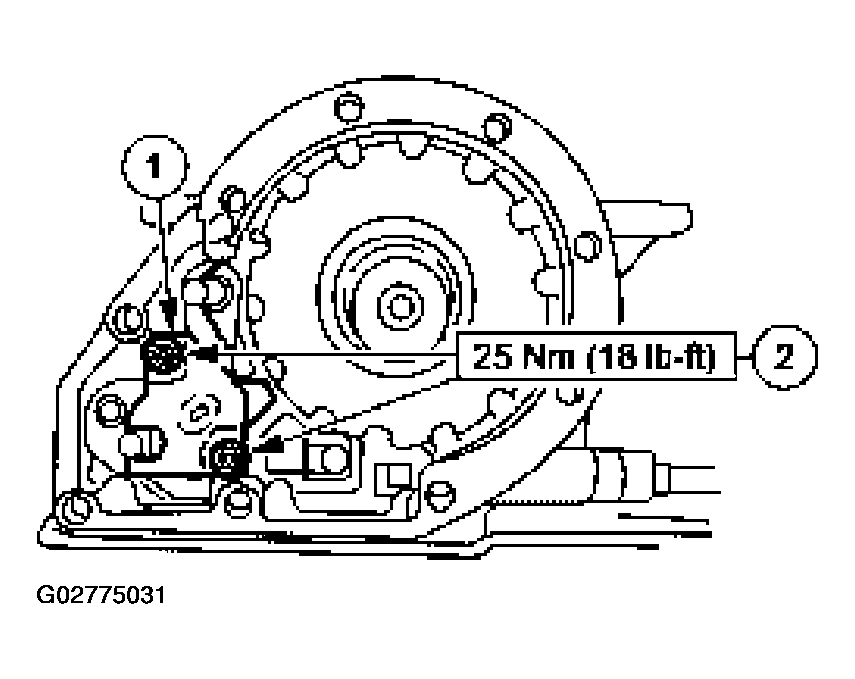

  Fig 2: Installing Parking Rod Guide Plate
  Courtesy of FORD MOTOR CO.
Install the extension housing gasket and the extension housing.
