Intermediate Servo: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. Refer to MAIN CONTROL VALVE BODY - ACCUMULATOR BODY, SOLENOID BODY .
    2. WARNING: The intermediate servo is under spring pressure, care should be taken when removing it. It could cause bodily harm.
    NOTE: Gently tap on the servo cover with a rubber mallet to compress and allow servo assembly to pop up.

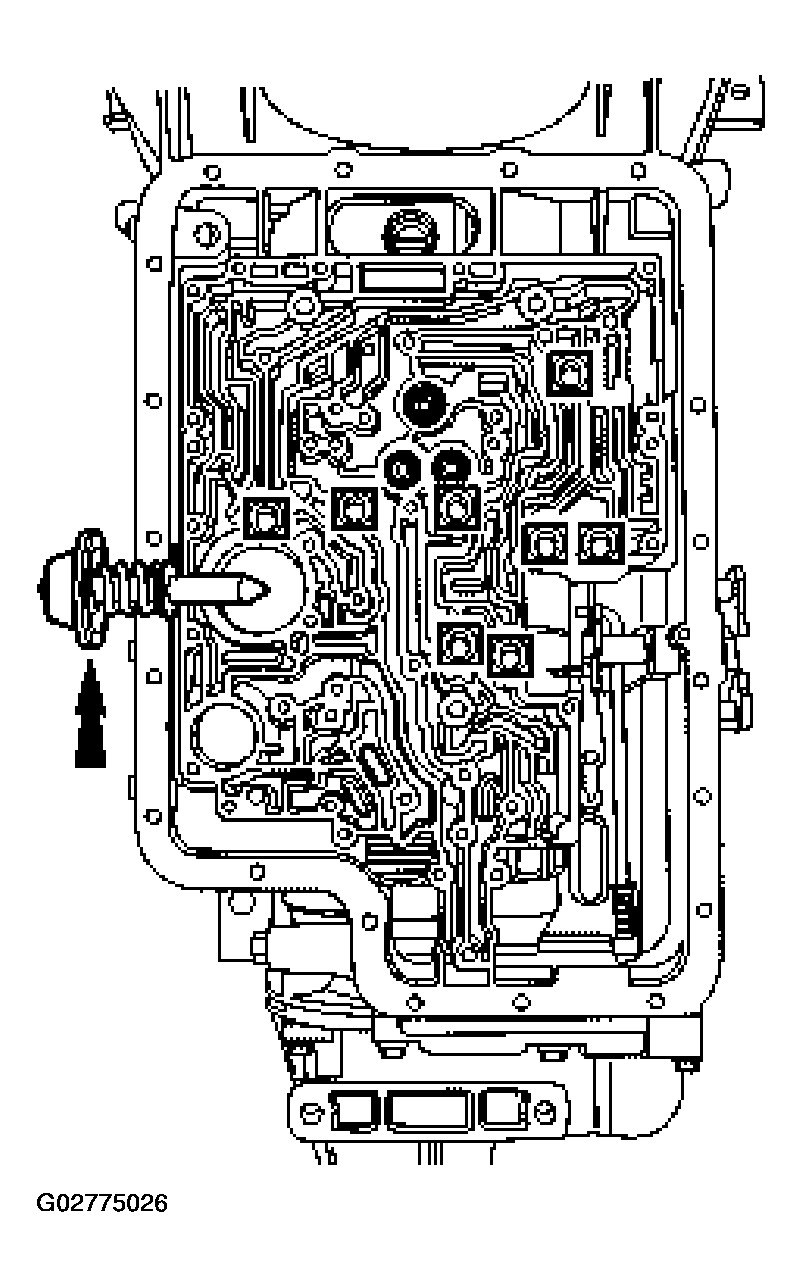

    Fig 1: Removing Intermediate Servo
    G02775026Courtesy of FORD MOTOR CO.
  2. Remove the intermediate servo.
