Extension Housing Seal & Bushing: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist. Refer to Jacking & Lifting .
  2. Remove the driveshaft. Refer to DRIVESHAFT .
  3. Using the special tools, remove the extension housing seal.
    Fig 1: Removing Extension Housing Seal
    G02774970Courtesy of FORD MOTOR CO.
    4. CAUTION: Do not damage any machined surfaces. Damage may cause the new seal to leak.

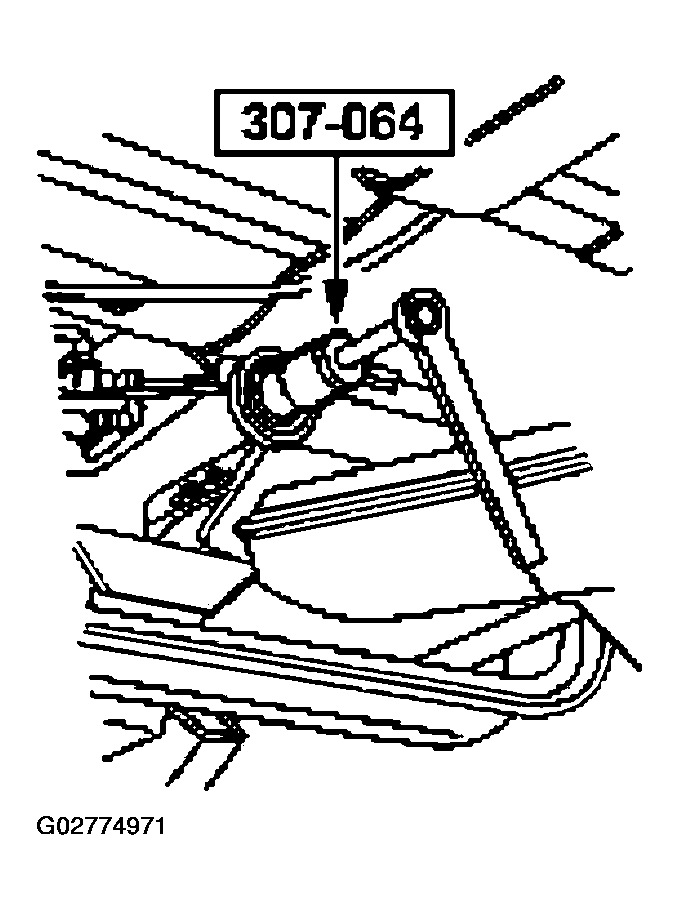

    Fig 2: Removing Extension Housing Bushing
    G02774971Courtesy of FORD MOTOR CO.
  4. Using the special tool, remove the extension housing bushing.
