Reverse Planet Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Individual parts of the planet assemblies are not repairable.
  1. Remove the No. 11 rear reverse planet thrust washer.

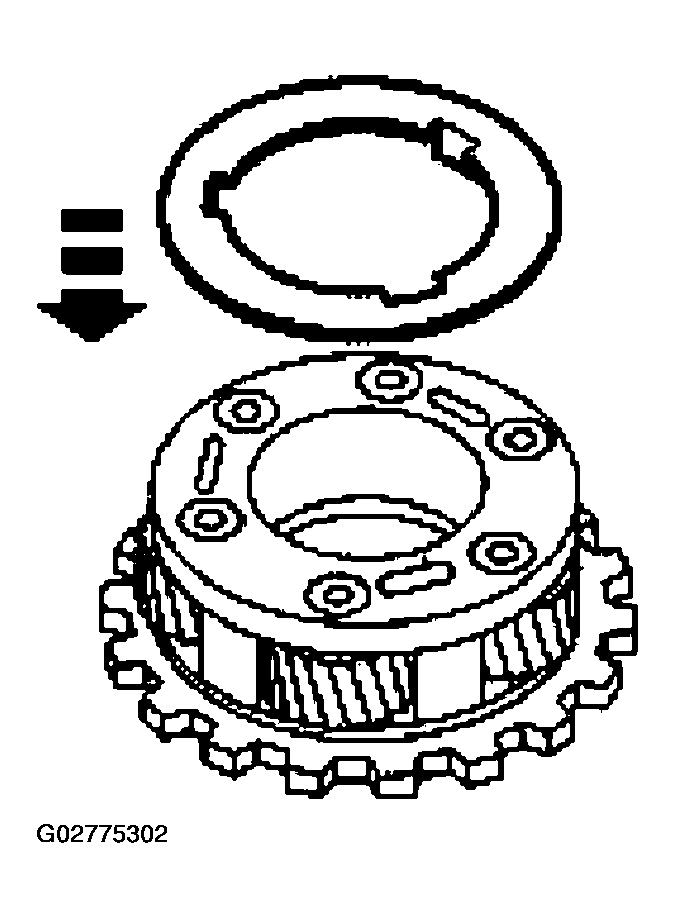

    Fig 1: Removing Rear Reverse Planet Thrust Washer
    G02775302Courtesy of FORD MOTOR CO.
  2. Remove the No. 10B front reverse planet thrust washer.
    • The pins and shafts in the planet assemblies should be checked for loose fit/damage. Use a new planet assembly if either condition exists.
    • Inspect the pinion gears for damaged or excessively worn teeth.
    • Check for free rotation of the pinion gears.
    • Check for damage in the overdrive planet assembly.

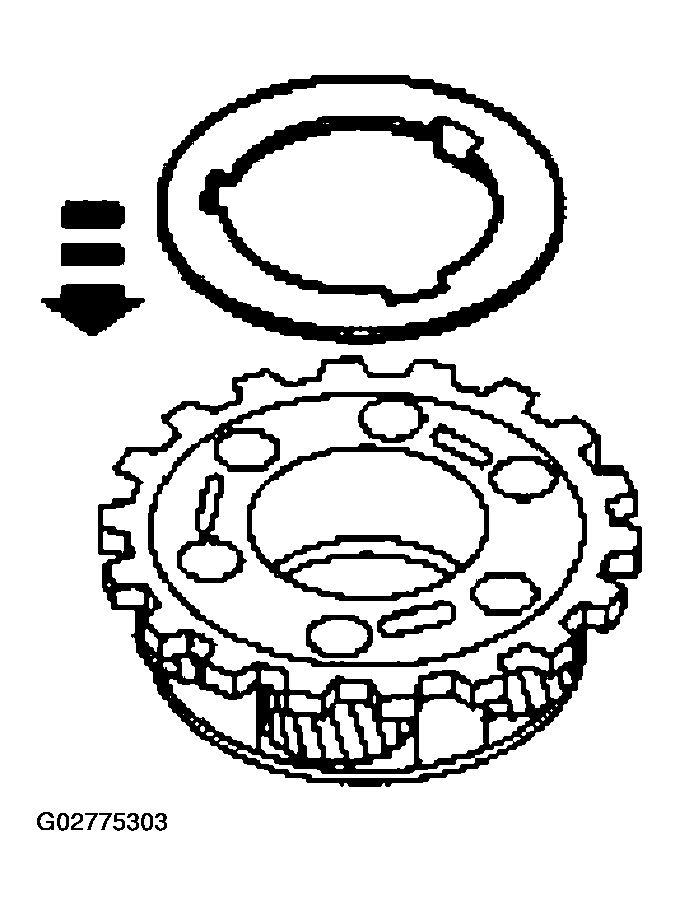

      Fig 2: Removing Front Reverse Planet Thrust Washer
      G02775303Courtesy of FORD MOTOR CO.
