Rear Case Bushings: Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The rear case bushing has one lube groove. The front case bushing has three lube grooves.
    Fig 1: Assembling Special Tools
    G02775164Courtesy of FORD MOTOR CO.
  1. Assemble the special tools.
  2. Place the assembled special tools through the case and into the front case bushing.

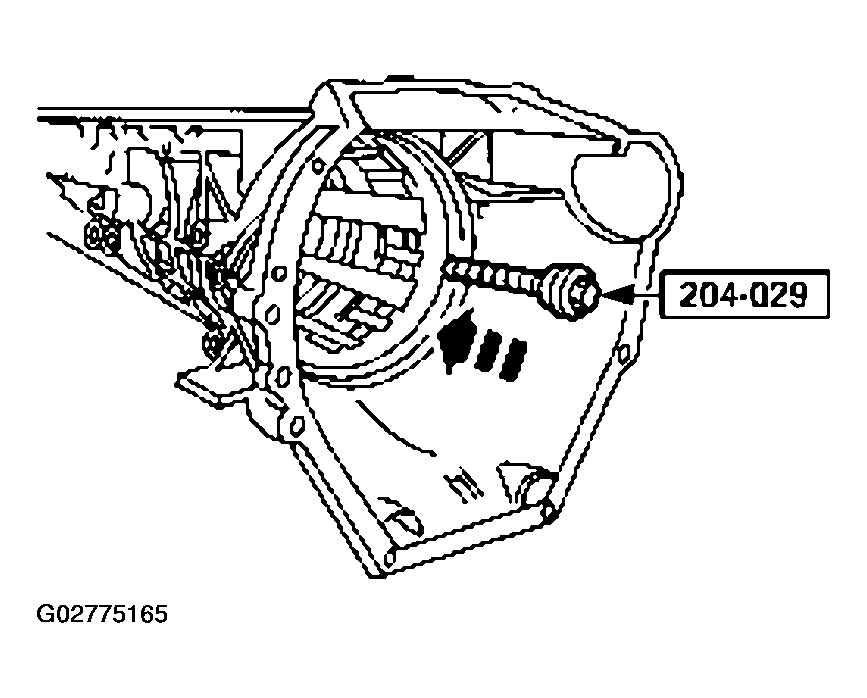

    Fig 2: Placing Assembled Special Tools Through Case And Into Front Case Bushing
    G02775165Courtesy of FORD MOTOR CO.
    3. CAUTION: Make sure the bushing and tool are centered in the bore.
  3. Install the rear case bushing.
    1. Install the rear case bushing over the special tool into the case.
    2. Install the special tool.
    3. Install the washer and the nut hand-tight.

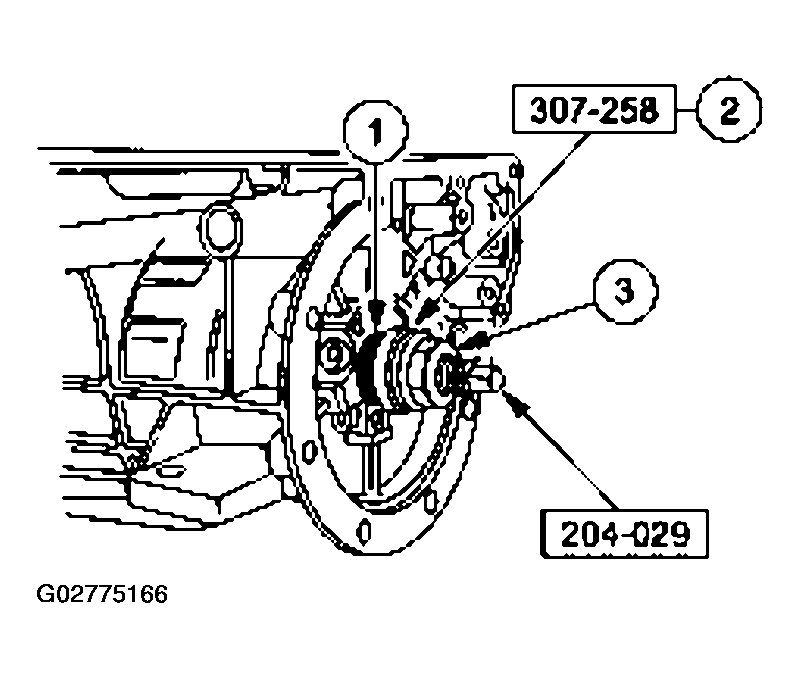

      Fig 3: Installing Rear Case Bushing Over Special Tool Into Case
      G02775166Courtesy of FORD MOTOR CO.
  4. Hold the special tool while turning the nut until the rear case bushing is fully seated. Remove the tools.

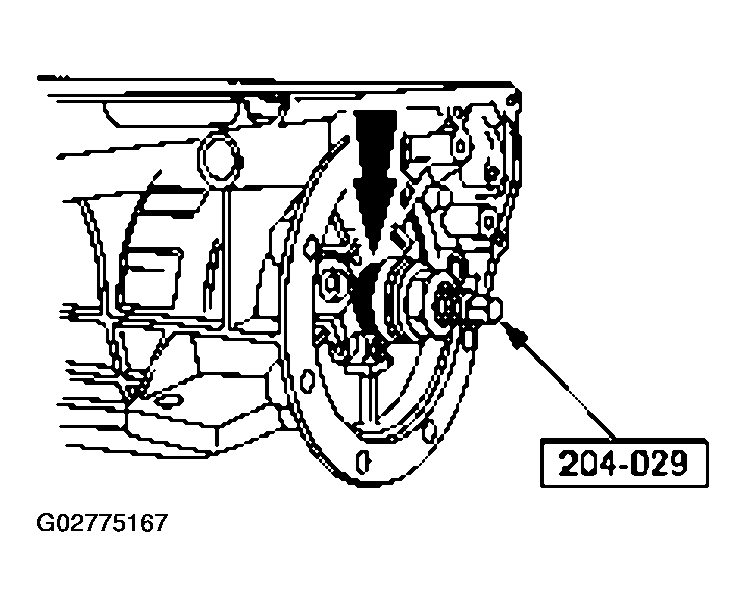

    Fig 4: Holding Special Tool While Turning Nut Until Rear Case Bushing
    G02775167Courtesy of FORD MOTOR CO.
