Pump Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The pump assembly is model dependent. Failure to use the correct pump may cause transmission assembly damage.
    NOTE: Inspect and install a new front pump seal, if damaged.

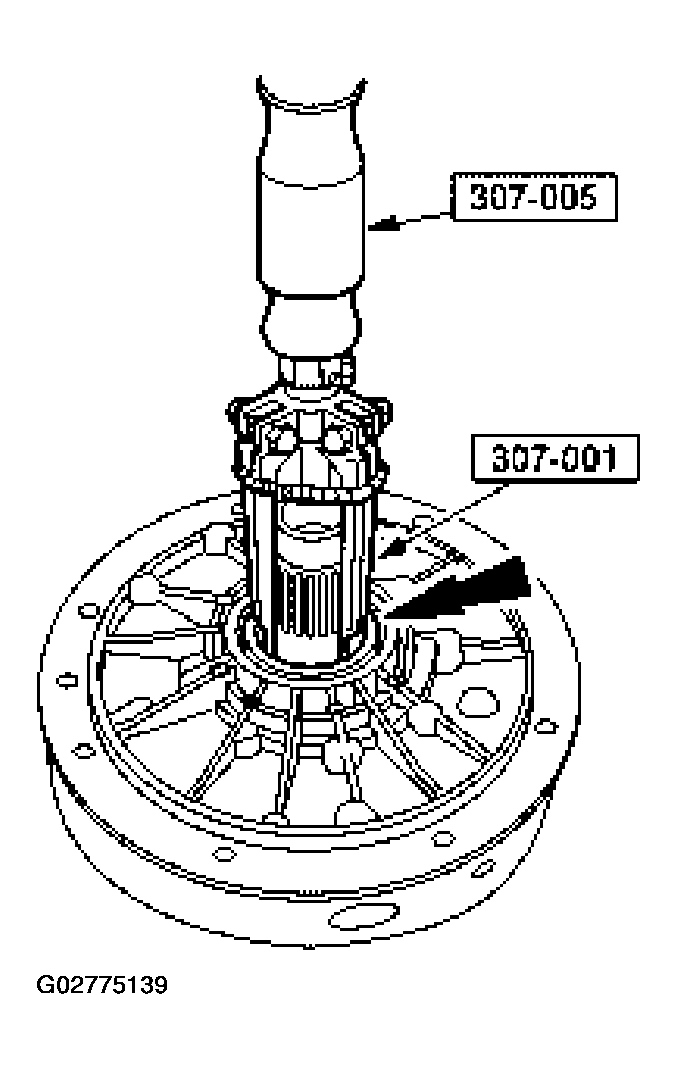

    Fig 1: Removing Front Pump Seal
    G02775139Courtesy of FORD MOTOR CO.
  1. Using the special tools, remove the front pump seal.
  2. Remove the front pump stator support seal.

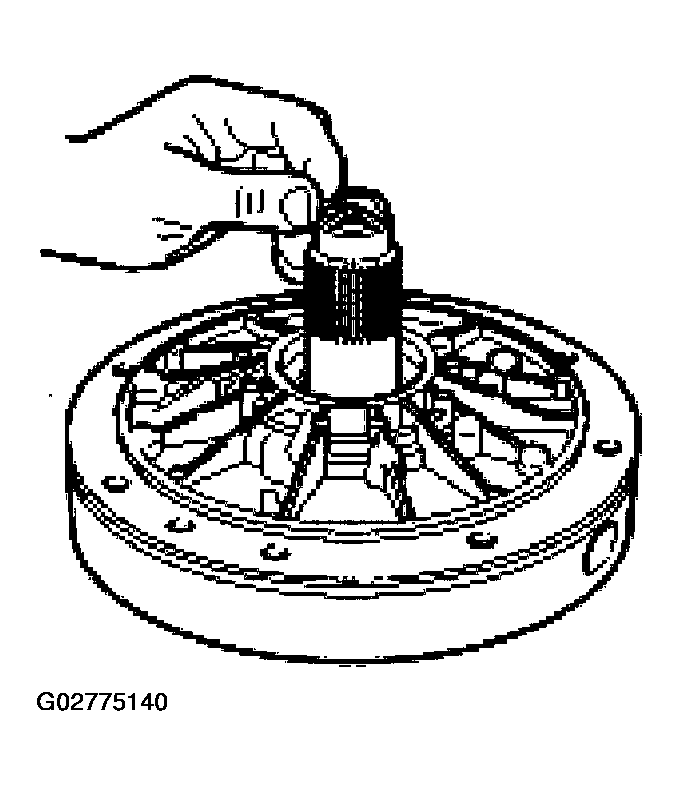

    Fig 2: Removing The Front Pump Stator Support Seal
    G02775140Courtesy of FORD MOTOR CO.

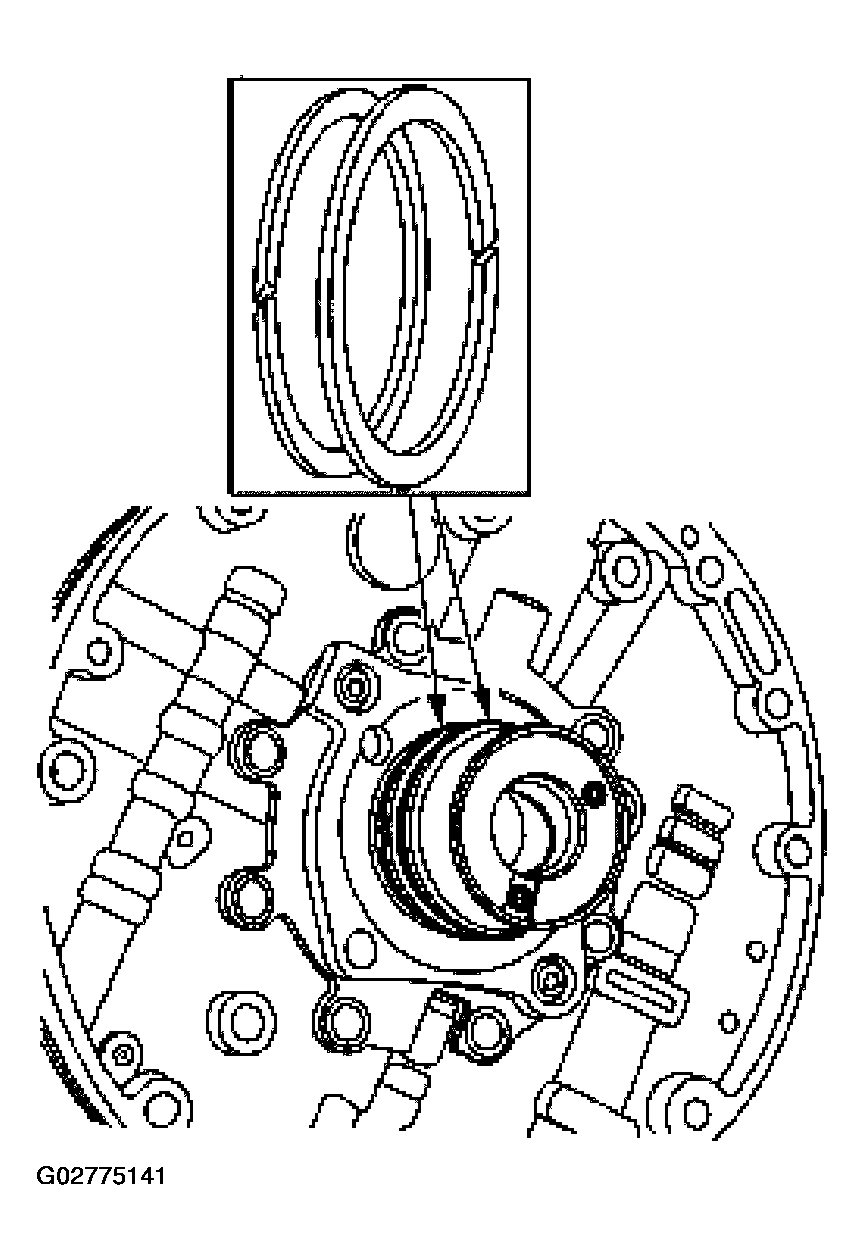

  3. Remove the two Teflon® coast clutch seals.
    Fig 3: Removing Front Pump Stator Support Seal
    G02775141Courtesy of FORD MOTOR CO.

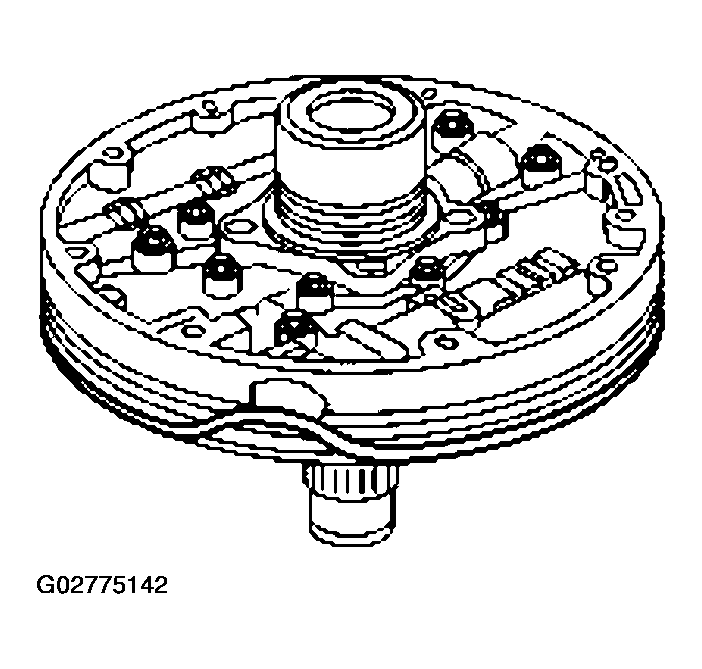

  4. Remove the pump outer diameter square-cut front pump seal.
    Fig 4: Removing Pump Outer Diameter Square-Cut Front Pump Seal
    G02775142Courtesy of FORD MOTOR CO.
    5. CAUTION: Do not reuse the orifice cup plug or spring and stop assembly. Failure to install new parts may cause repeat repairs. Make sure the old rubber stop is removed (it may become separated from the spring assembly).
    CAUTION: Use care not to damage any machined surfaces of the stator support.
  5. Remove and discard the orifice cup plug and the spring and stop assembly. Clean and inspect the bore, making sure it is clean of any debris.
    1. Remove the orifice cup plug.
    2. Remove the spring and stop assembly.
    3. Remove the old rubber stop.

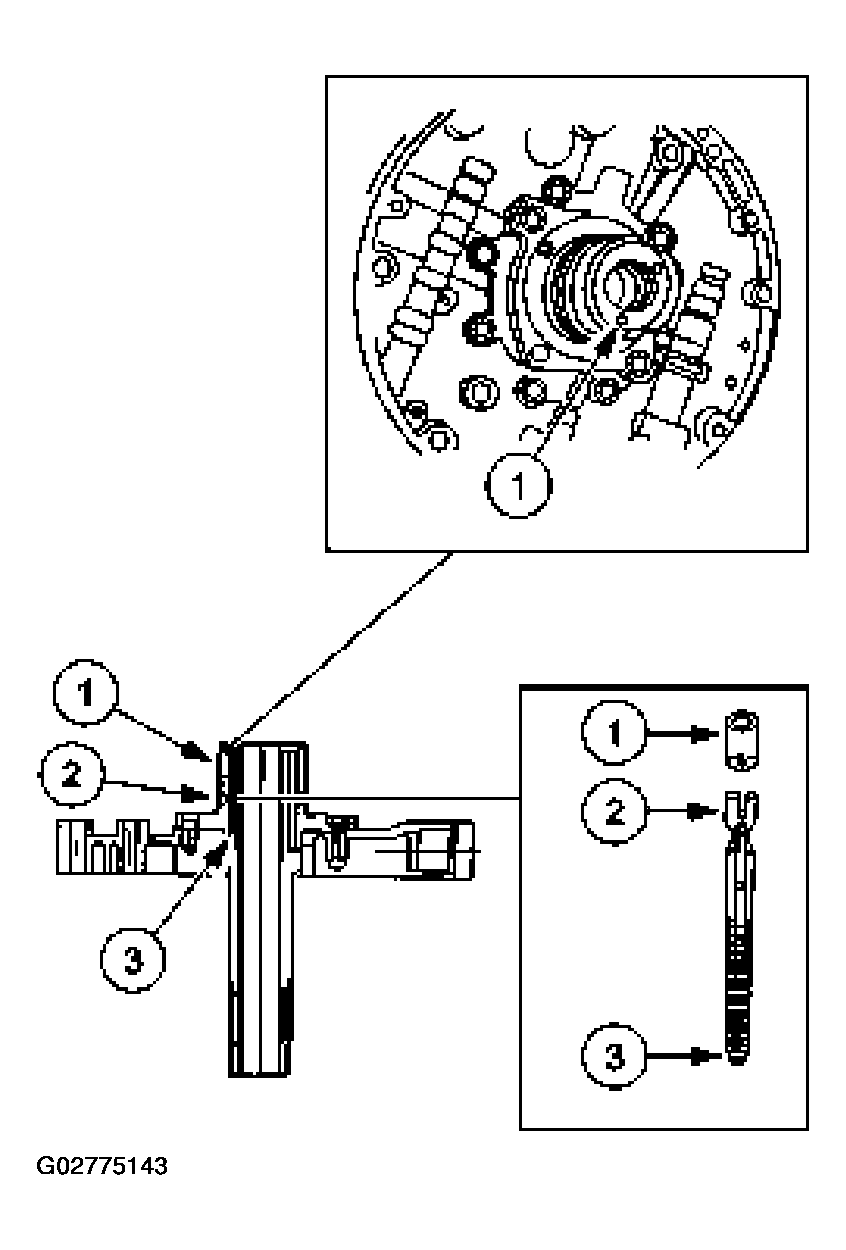

      Fig 5: Removing Spring And Stop Assembly
      G02775143Courtesy of FORD MOTOR CO.
  6. Remove 12 bolts and separate the pump control body from the pump body.

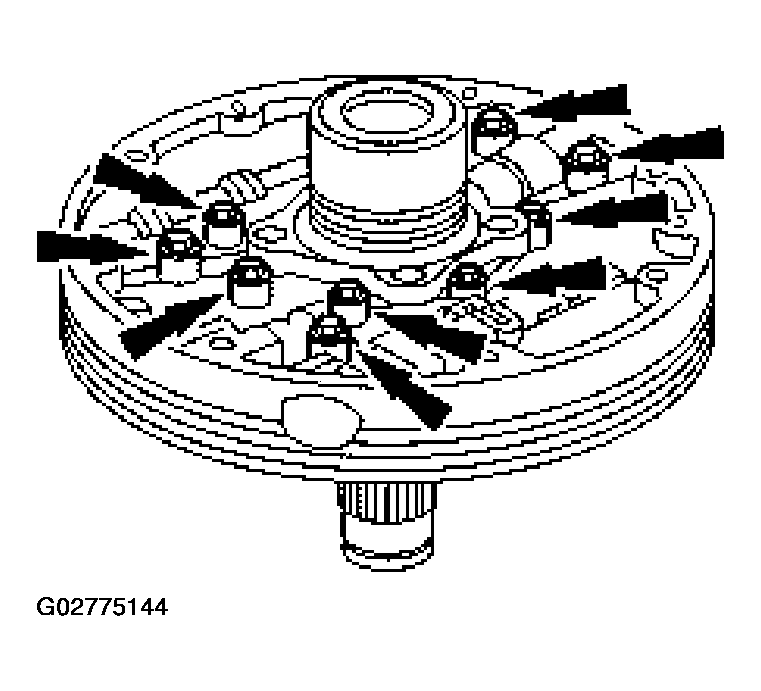

    Fig 6: Removing And Separate Pump Control Body From Pump Body
    G02775144Courtesy of FORD MOTOR CO.
    7. CAUTION: Do not remove any of the remaining cup plugs unless directed to do so in other steps. Do not remove the stator support from the control body. This can distort the surface of the control body.
    NOTE: Inspect the main regulator booster valve and sleeve assembly. If the pump valve bore is not damaged but the valve and sleeve are worn, install a new valve and sleeve.
  7. Remove the converter clutch shift valve assembly, converter regulator valve assembly, and main regulator boost valve and sleeve assembly.
    1. Remove the retainer clip with a small screwdriver or tweezers then remove the converter clutch shift valve assembly.
    2. Remove the retainer clip with a small screwdriver or tweezers then remove the converter regulator valve assembly.
    3. Remove the retainer clip with a small screwdriver or tweezers then remove the main regulator valve assembly.
      Fig 7: Removing Main Regulator Valve Assembly
      G02775145Courtesy of FORD MOTOR CO.
  8. Remove and inspect the inner and the outer gerotor gears.
    • Clean all pump parts in solvent.
    • Dry the parts with compressed air.
    • Inspect the pump gears, faces, gear teeth, pump housing and mating surfaces for damage or scoring.
    • Install a new pump if any part is damaged or worn.

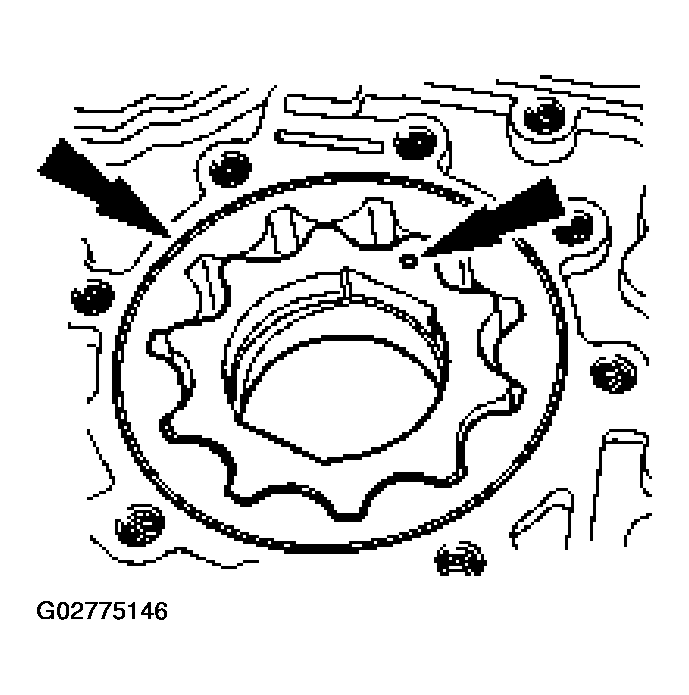

      Fig 8: Inspecting Pump Gears Faces Gear Teeth Pump Housing
      G02775146Courtesy of FORD MOTOR CO.
  9. Inspect the converter hub bushing. If scored or excessively worn, install a new pump. Note the orientation of the lube groove.

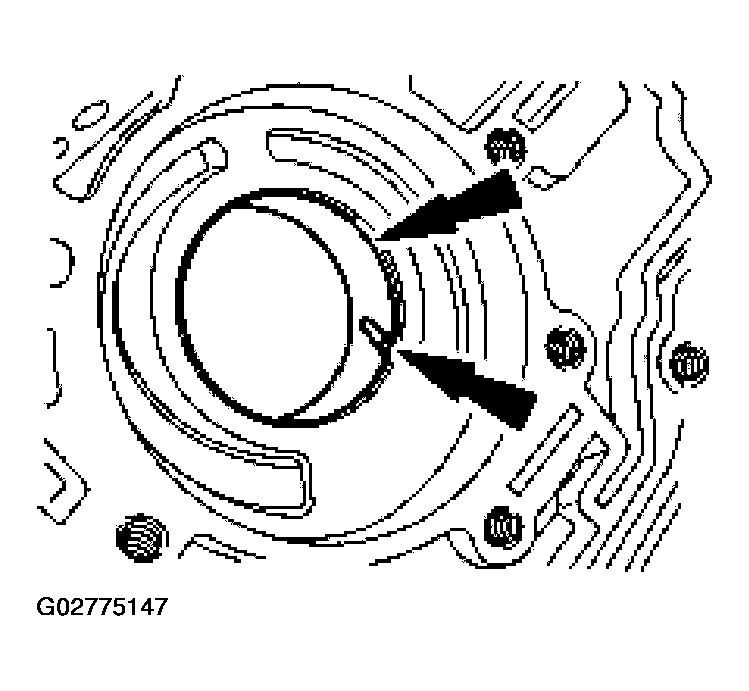

    Fig 9: Inspecting Converter Hub Bushing
    G02775147Courtesy of FORD MOTOR CO.
    10. NOTE: The pump assemblies are model-dependent.
  10. Inspect the front and the rear input shaft bushing. If the bushing is worn or scored install a new pump.
    1. Front input shaft bushing.
    2. Rear input shaft bushing.

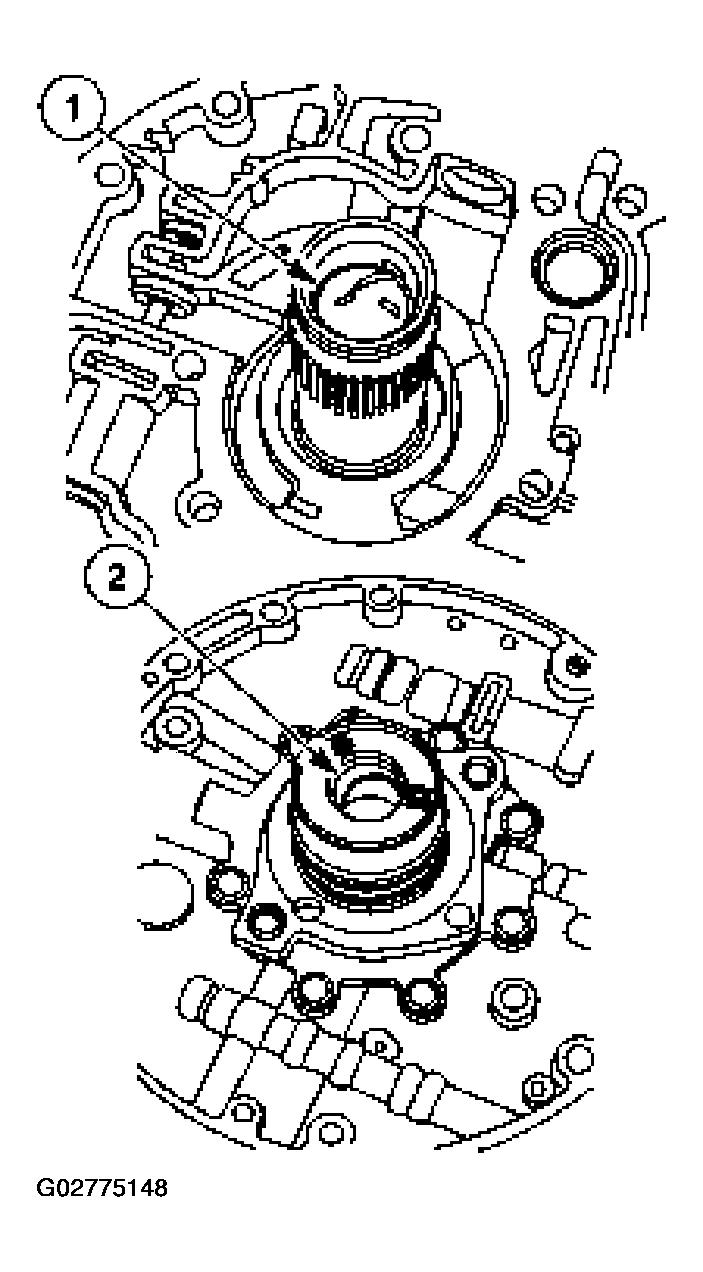

      Fig 10: Inspecting Front And Rear Input Shaft Bushing
      G02775148Courtesy of FORD MOTOR CO.
    11. NOTE: The pump assemblies are model-dependent.
  11. Remove the coast clutch seals and discard.
    1. Inspect the bushing for wear. If scored or worn, install a new pump.
    2. Remove the coast clutch seals.

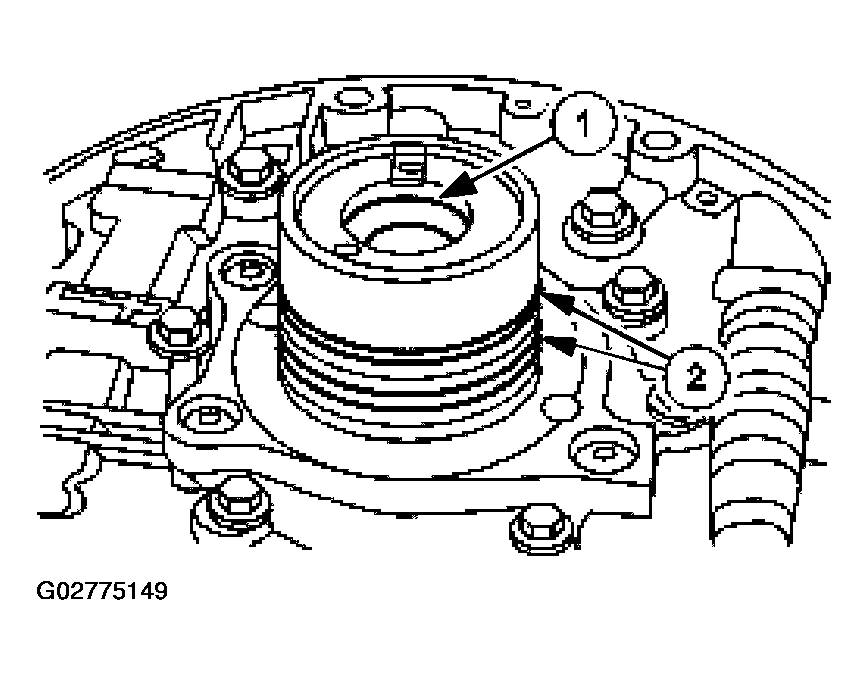

      Fig 11: Removing Coast Clutch Seals
      G02775149Courtesy of FORD MOTOR CO.

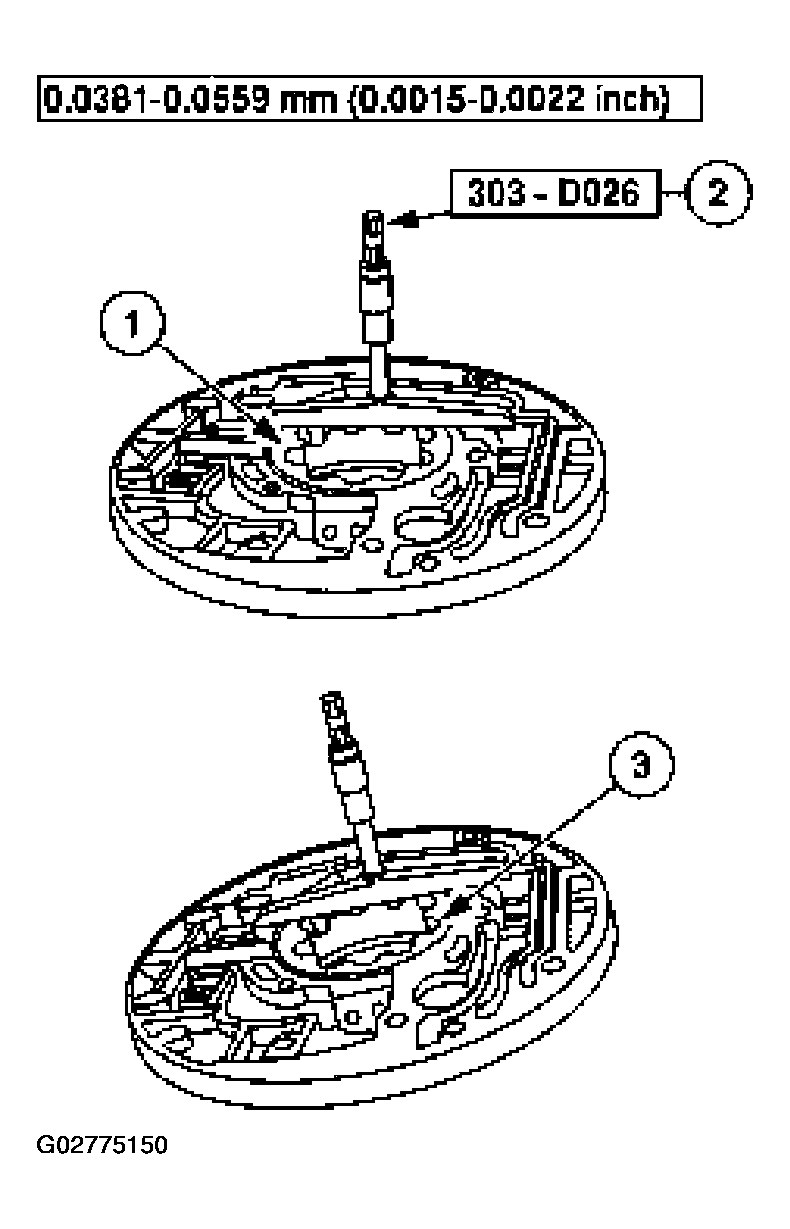

  12. Measure and record the depth of the inner, then the outer, pump gerotor gear face-to-pump body machined surface.
    1. Place the pump gerotor gearset into the pump gear pocket and center it to the pump bushing diameter.
    2. Using the special tool, measure and record the depth of the inner gerotor gear face to the pump body machined surface. Repeat measurement for a total of three readings in equally spaced locations on the gear face. If the reading is not within specification, install a new pump assembly.
    3. Remove the inner gear and reinstall the outer gear. Repeat Substep 2 for the outer gerotor gear face.
      Fig 12: Removing Inner Gear
      G02775150Courtesy of FORD MOTOR CO.
  13. Inspect the following:
    • All valve and plug bores for scoring or damage.
    • All passages for obstructions.
    • Mating surfaces for burrs and scoring.
    • All springs for distortion.
    • When dry, check all valves and plugs for free movement in their respective bores.
