Main Control Valve Body - Disassembly & Assembly: Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the control valves and springs from the lower main control valve body.
    Fig 1: Installing Control Valves And Springs From Lower Main Control Valve Body
    G02775130Courtesy of FORD MOTOR CO.
  2. Install the control valves and springs from the upper main control valve body.
    Fig 2: Installing Control Valves And Springs From Upper Main Control Valve Body
    G02775131Courtesy of FORD MOTOR CO.
  3. Install the check ball.

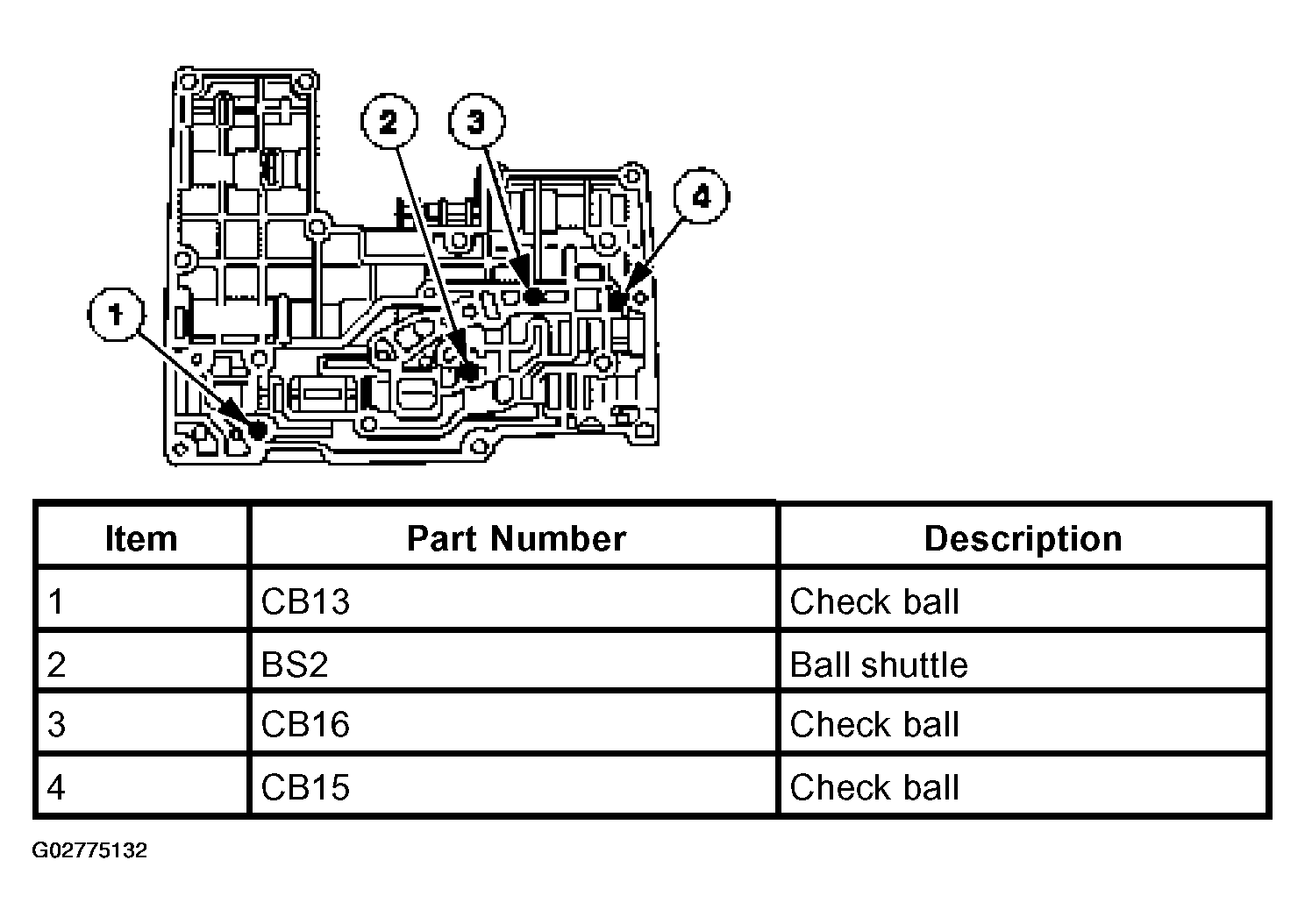

    Fig 3: Installing Check Ball
    G02775132Courtesy of FORD MOTOR CO.
  4. Using the special tools, install the lower control valve body.
    1. Install the special tools.
    2. Install the control valve body separator plate.
    3. Install the lower control valve body.
    4. Install the bolts.
      Fig 4: Installing Lower Control Valve Body
      G02775133Courtesy of FORD MOTOR CO.
