Applications Shift Speeds - Approximate* Km/h (MPH) 5.4L

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

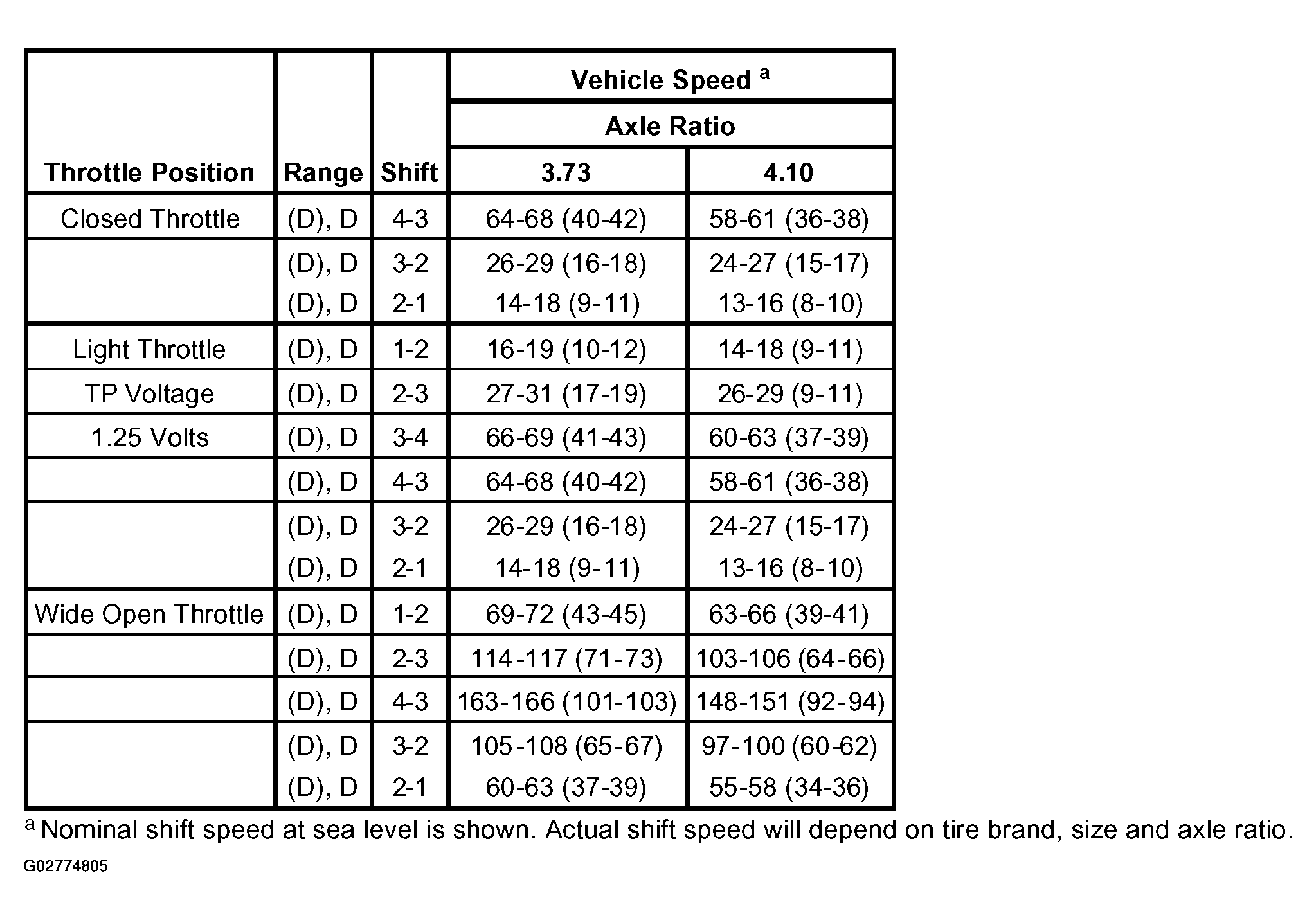

Fig 1: Identifying Shift Speeds 5.4L
G02774805Courtesy of FORD MOTOR CO.
