Pinpoint Test G: Coast Clutch Solenoid (CCS)

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness Connector  illustration preceding these pinpoint tests.

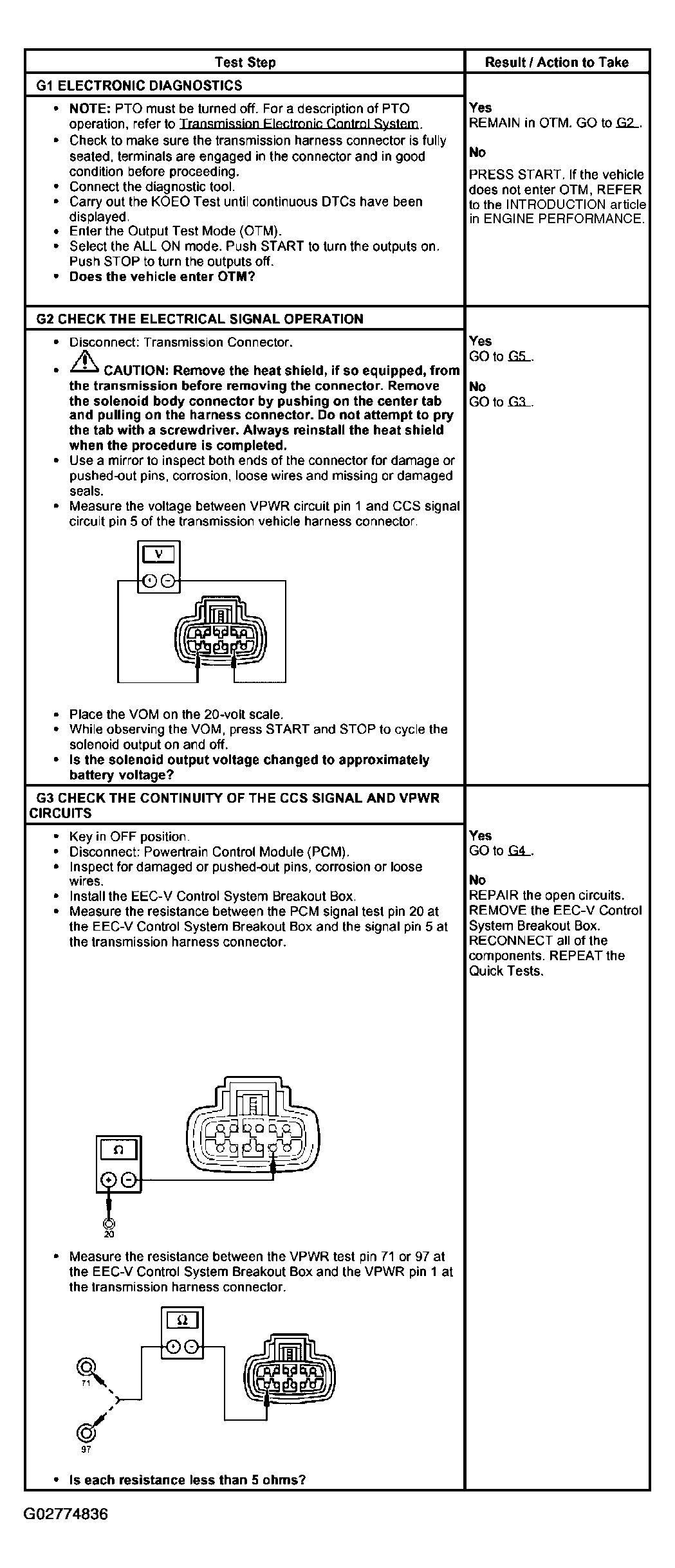

Fig 1: Pinpoint Test G: Shift Solenoids Step G1-G3
G02774836Courtesy of FORD MOTOR CO.

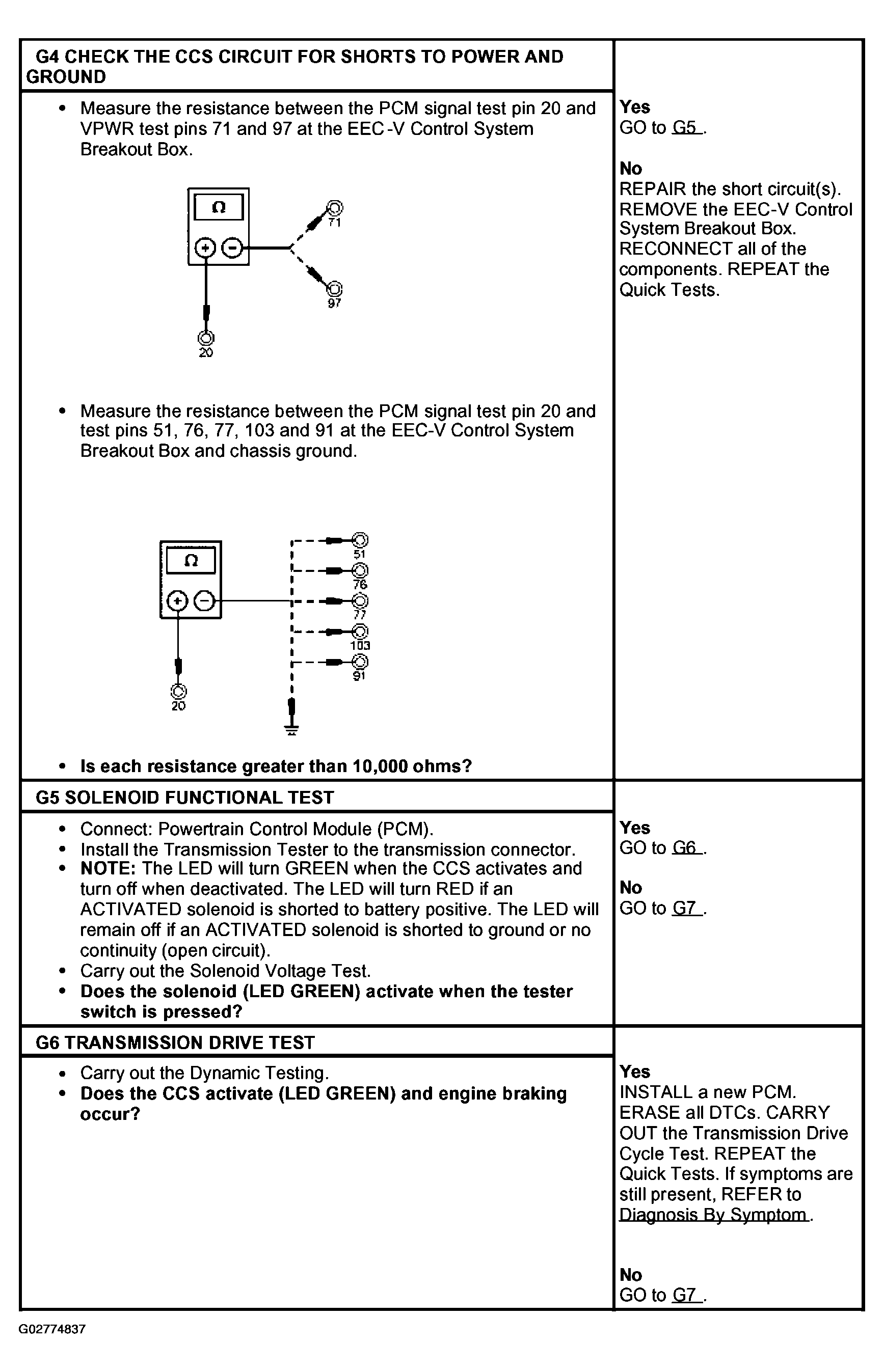

Fig 2: Pinpoint Test G: Shift Solenoids Step G4-G6
G02774837Courtesy of FORD MOTOR CO.

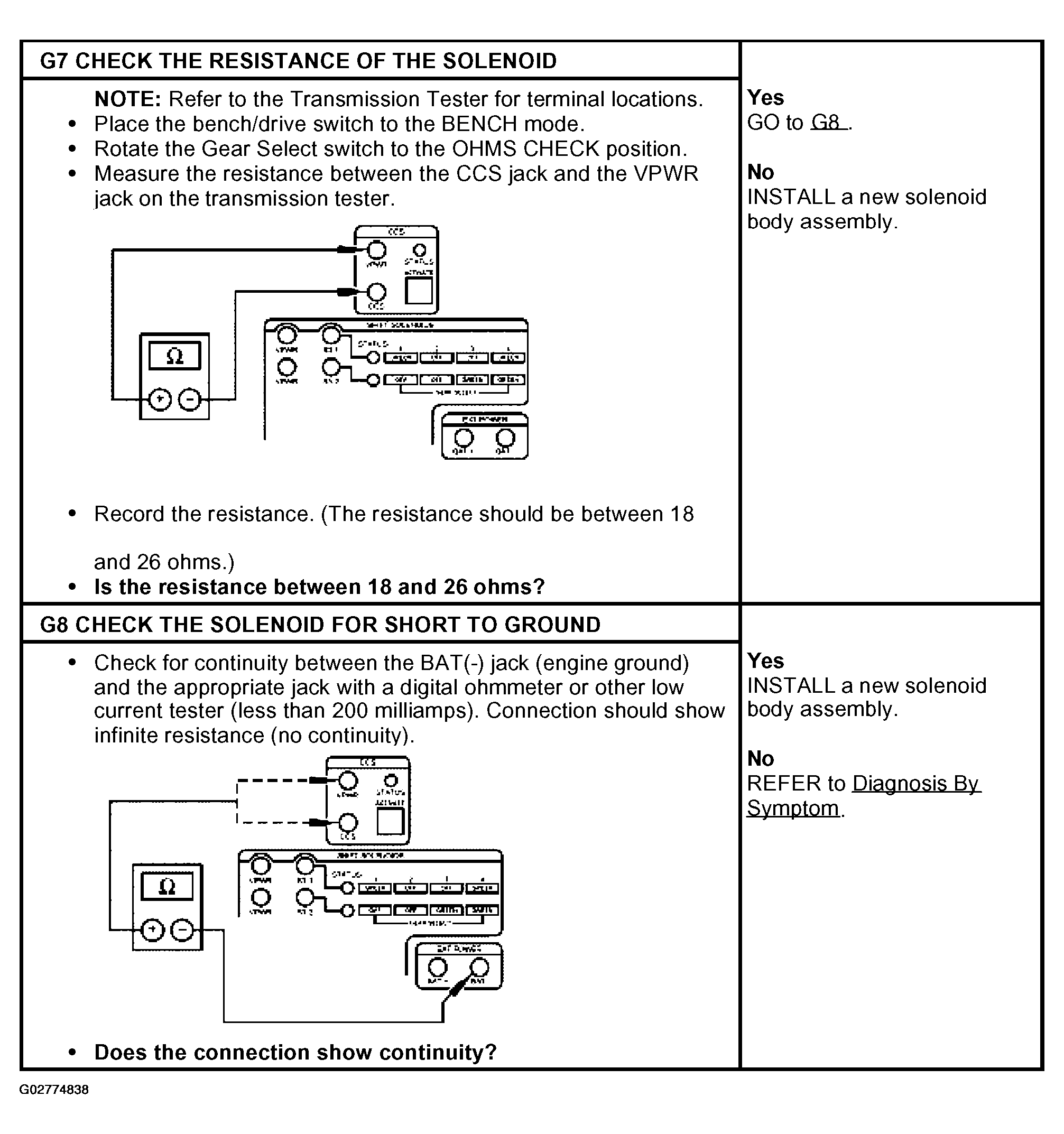

Fig 3: Pinpoint Test G: Shift Solenoids Step G7-G8
G02774838Courtesy of FORD MOTOR CO.
