Pinpoint Test E: Electronic Pressure Control (EPC) Solenoid

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness Connector  preceding these pinpoint tests.

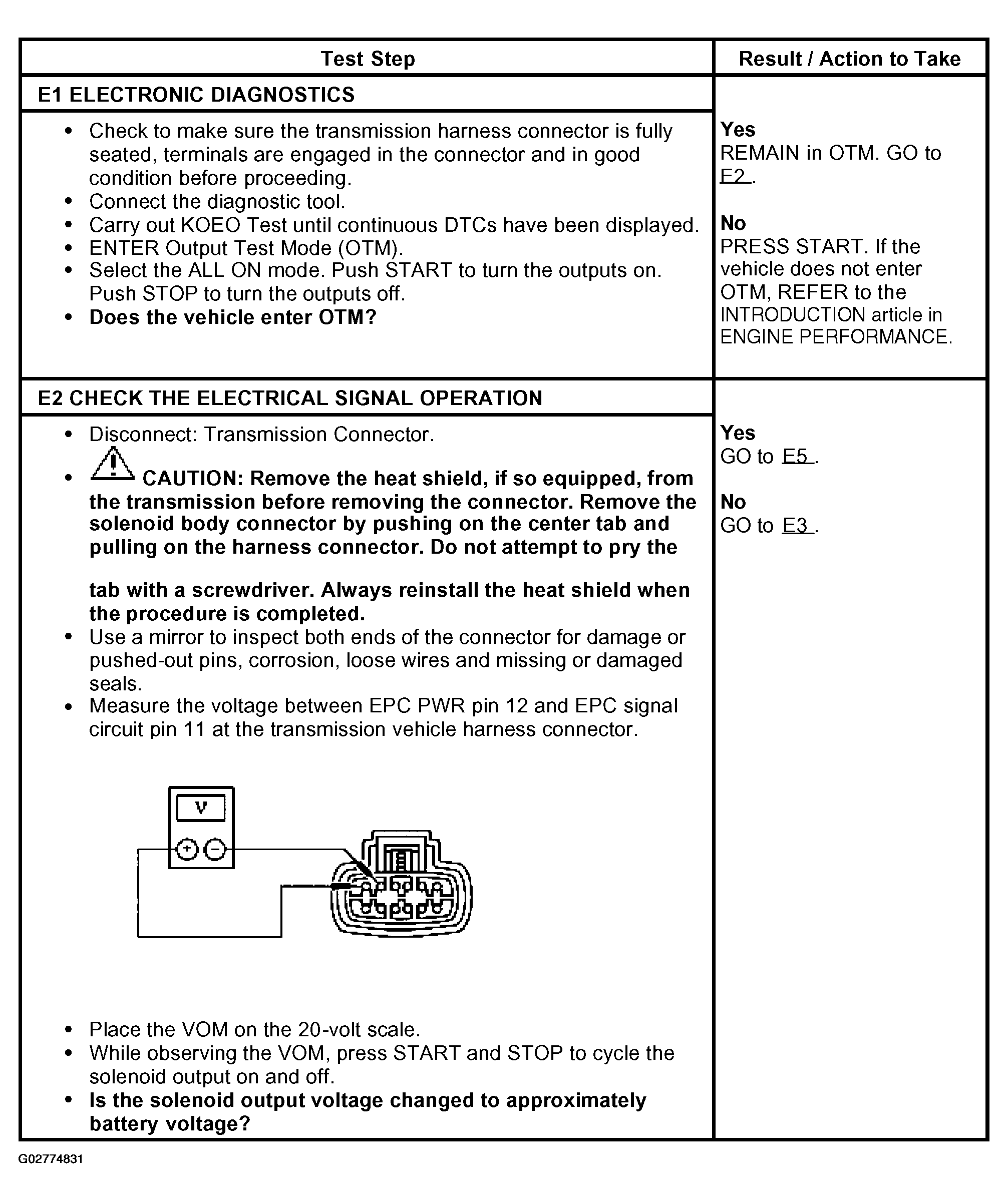

Fig 1: Pinpoint Test E: Shift Solenoids Step E1-E2
G02774831Courtesy of FORD MOTOR CO.

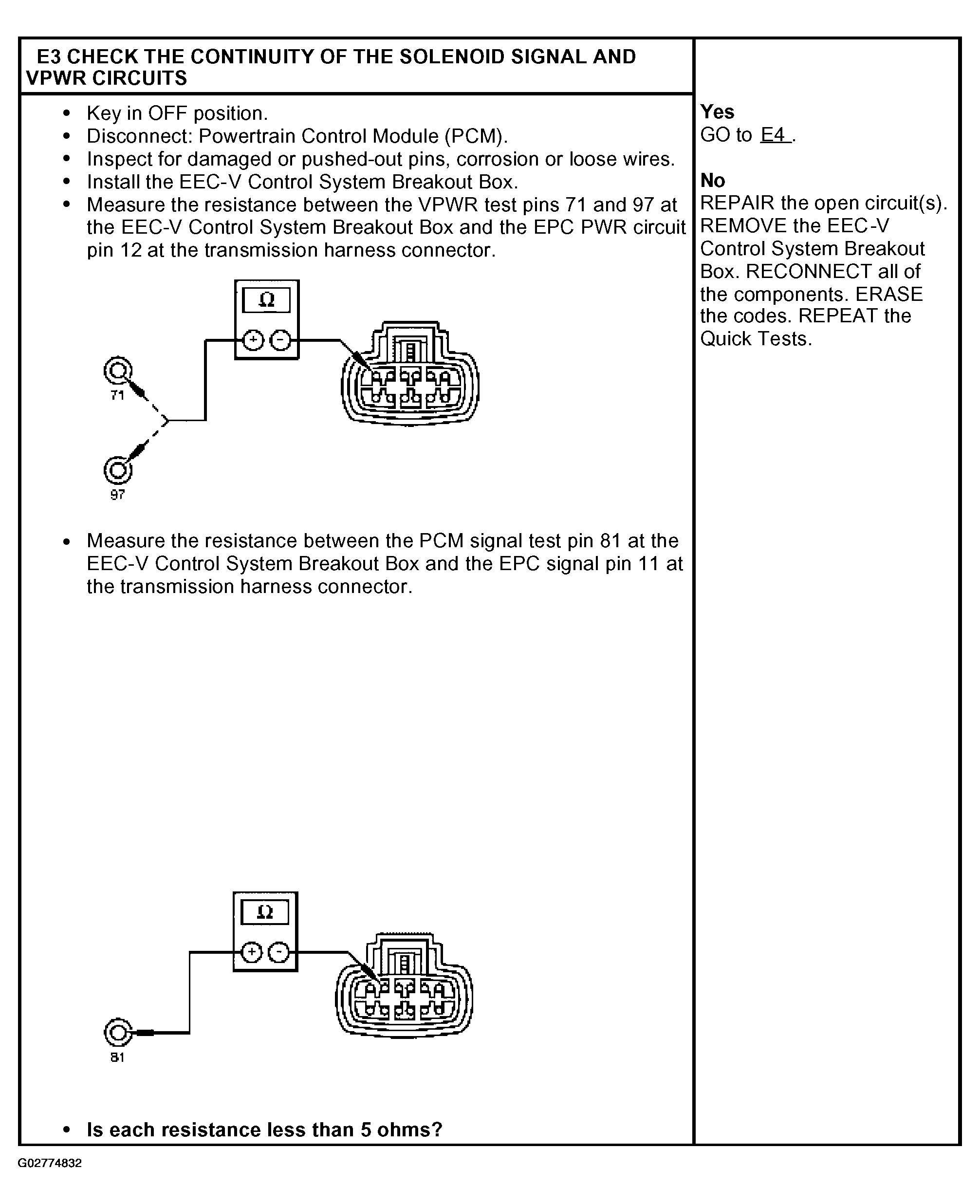

Fig 2: Pinpoint Test E: Shift Solenoids Step E3
G02774832Courtesy of FORD MOTOR CO.

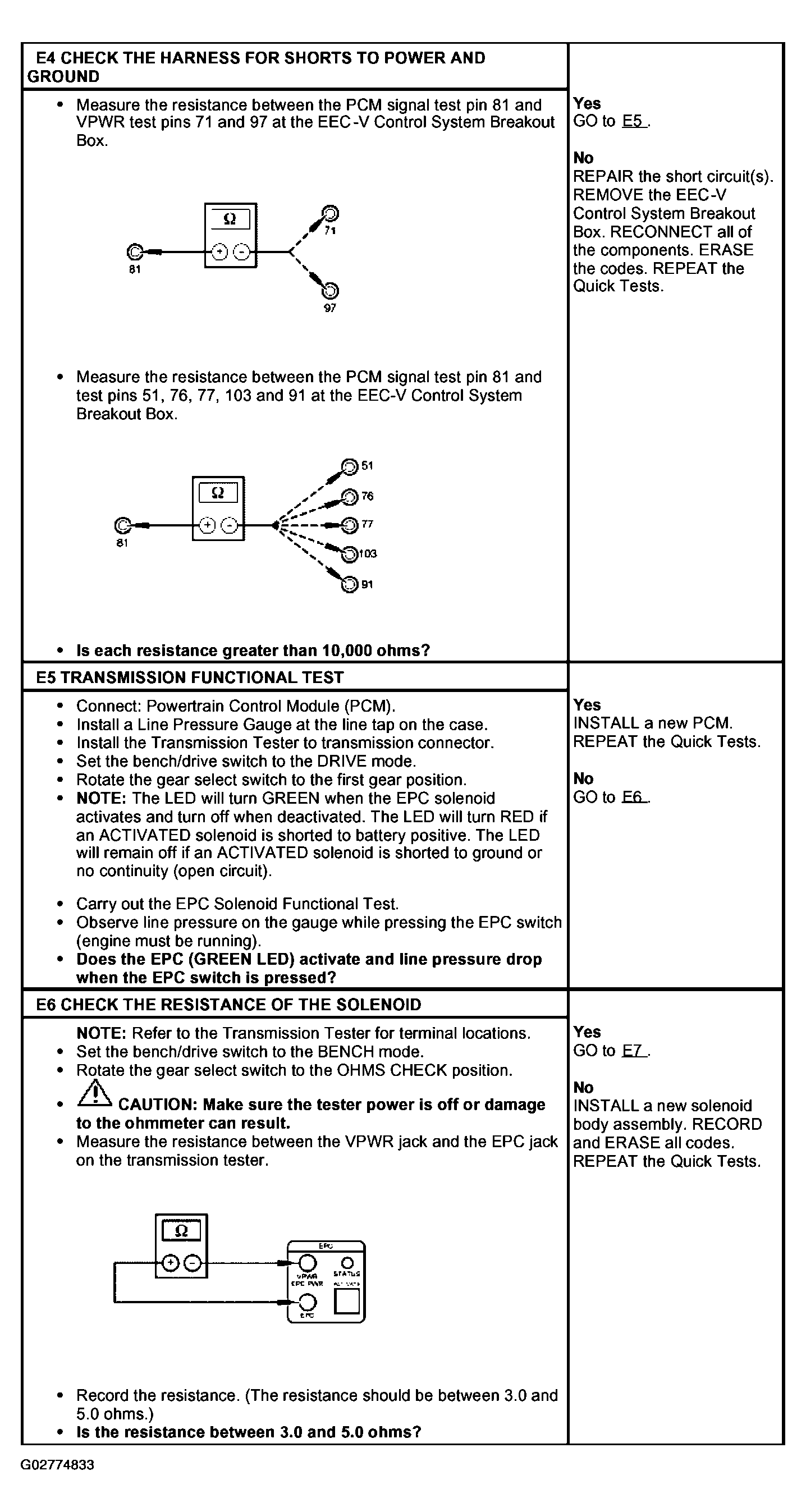

Fig 3: Pinpoint Test E: Shift Solenoids Step E4-E6
G02774833Courtesy of FORD MOTOR CO.

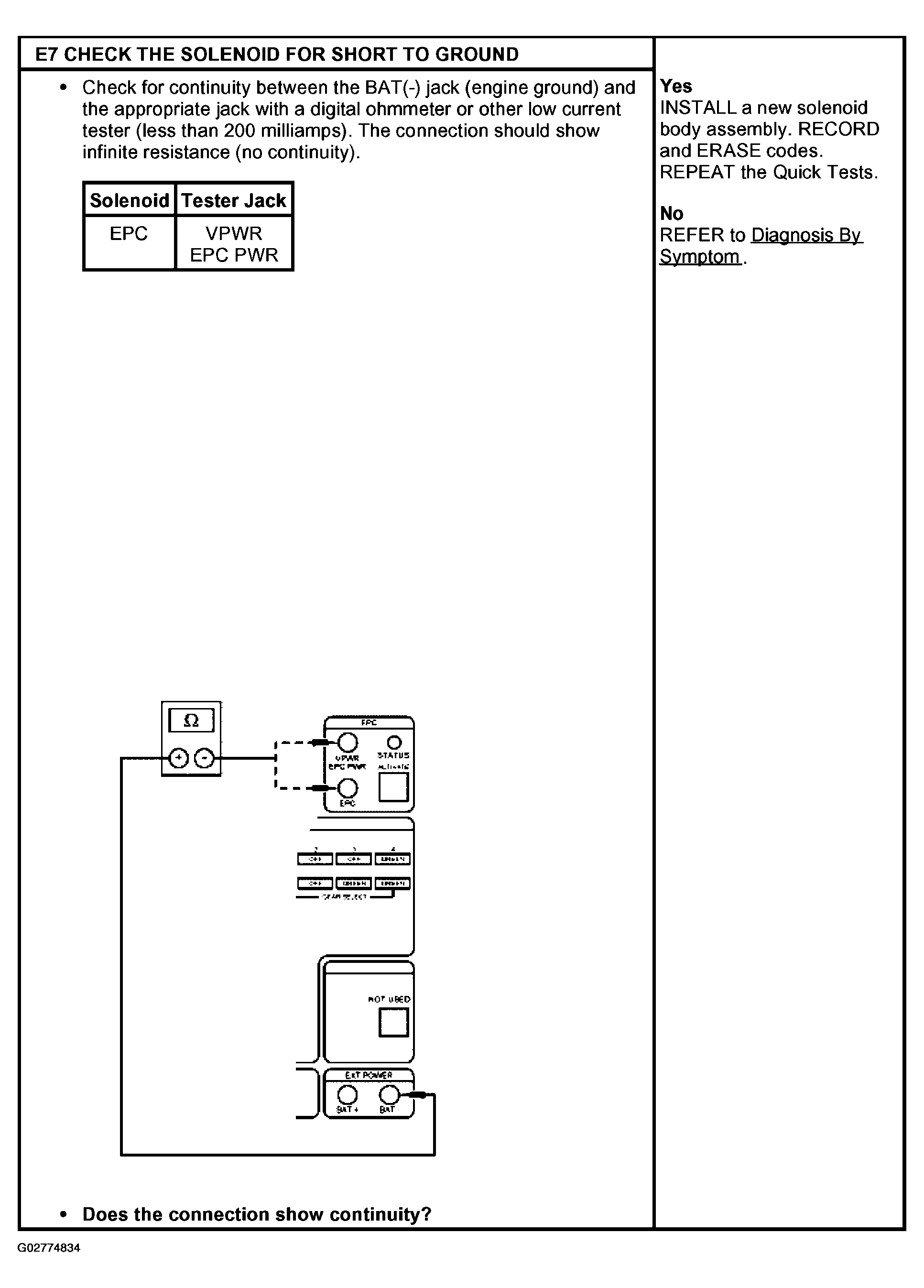

Fig 4: Pinpoint Test E: Shift Solenoids Step E7
G02774834Courtesy of FORD MOTOR CO.
