Pinpoint Test C: Torque Converter Clutch (TCC) Solenoid

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness Connector  illustration preceding these pinpoint tests.

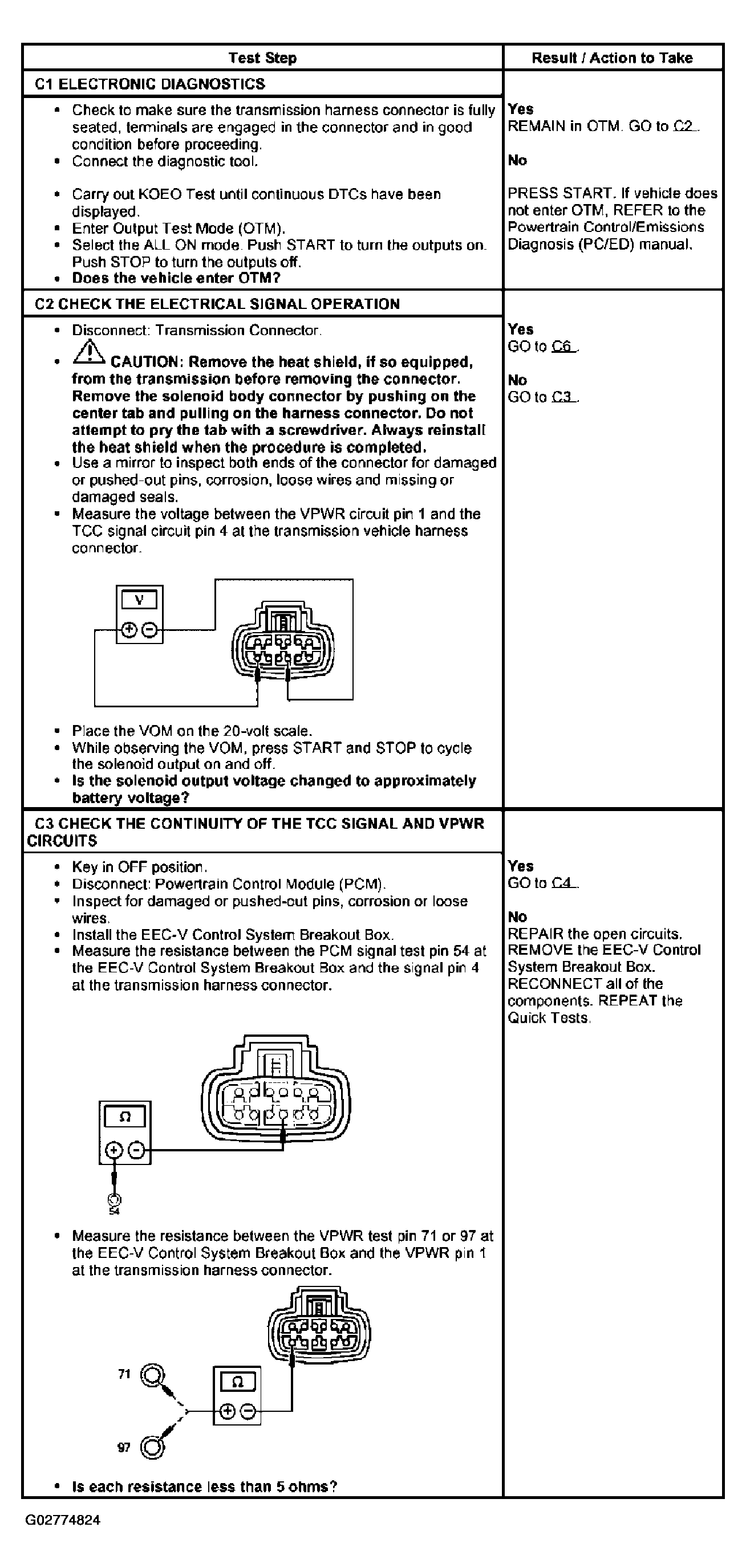

Fig 1: Pinpoint Test C: Shift Solenoids Step C1-C3
G02774824Courtesy of FORD MOTOR CO.

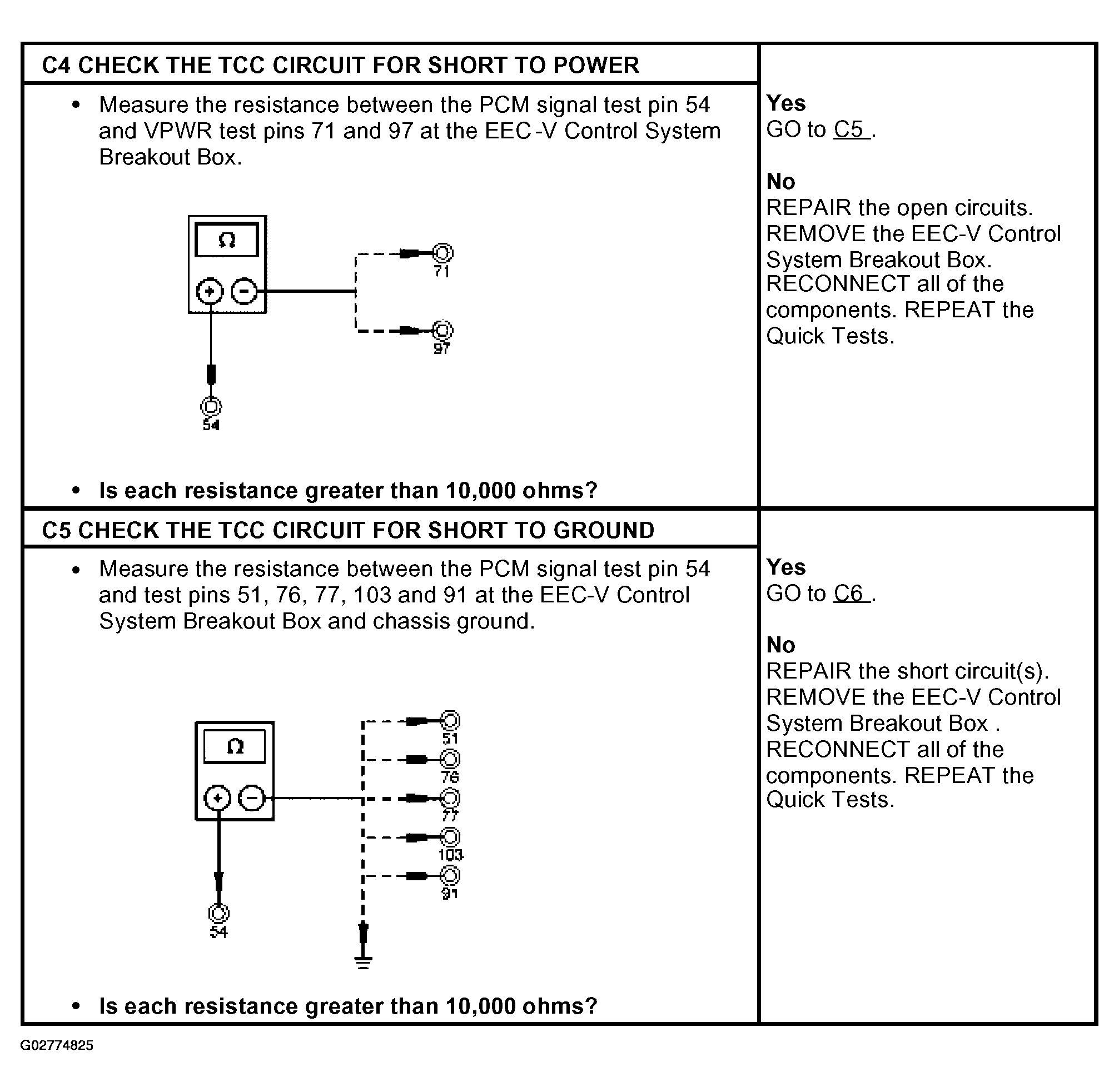

Fig 2: Pinpoint Test C: Shift Solenoids Step C4-C5
G02774825Courtesy of FORD MOTOR CO.

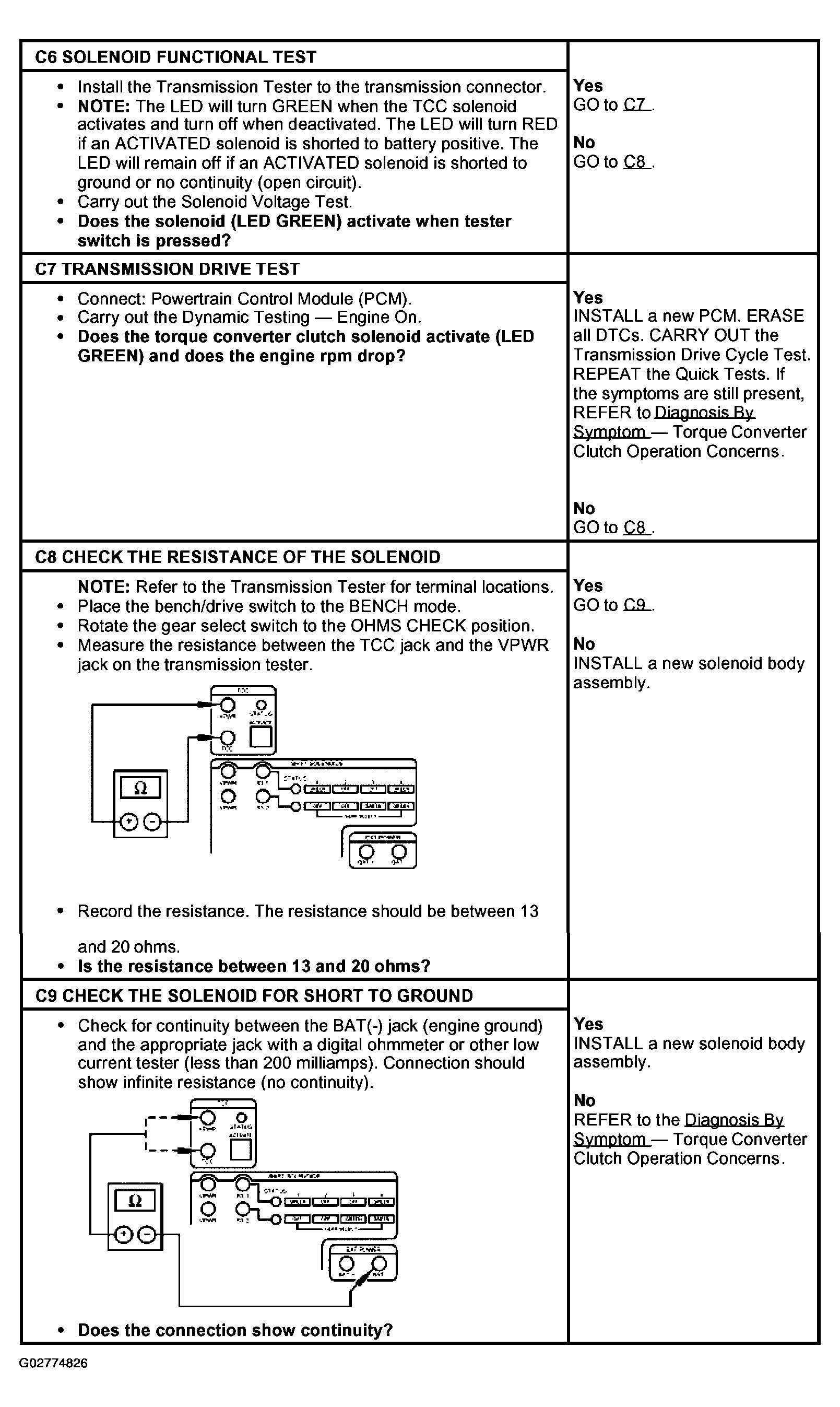

Fig 3: Pinpoint Test C: Shift Solenoids Step C6-C9
G02774826Courtesy of FORD MOTOR CO.
