Pinpoint Test A: Shift Solenoids

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Vehicle Harness Connector  illustration preceding these pinpoint tests.

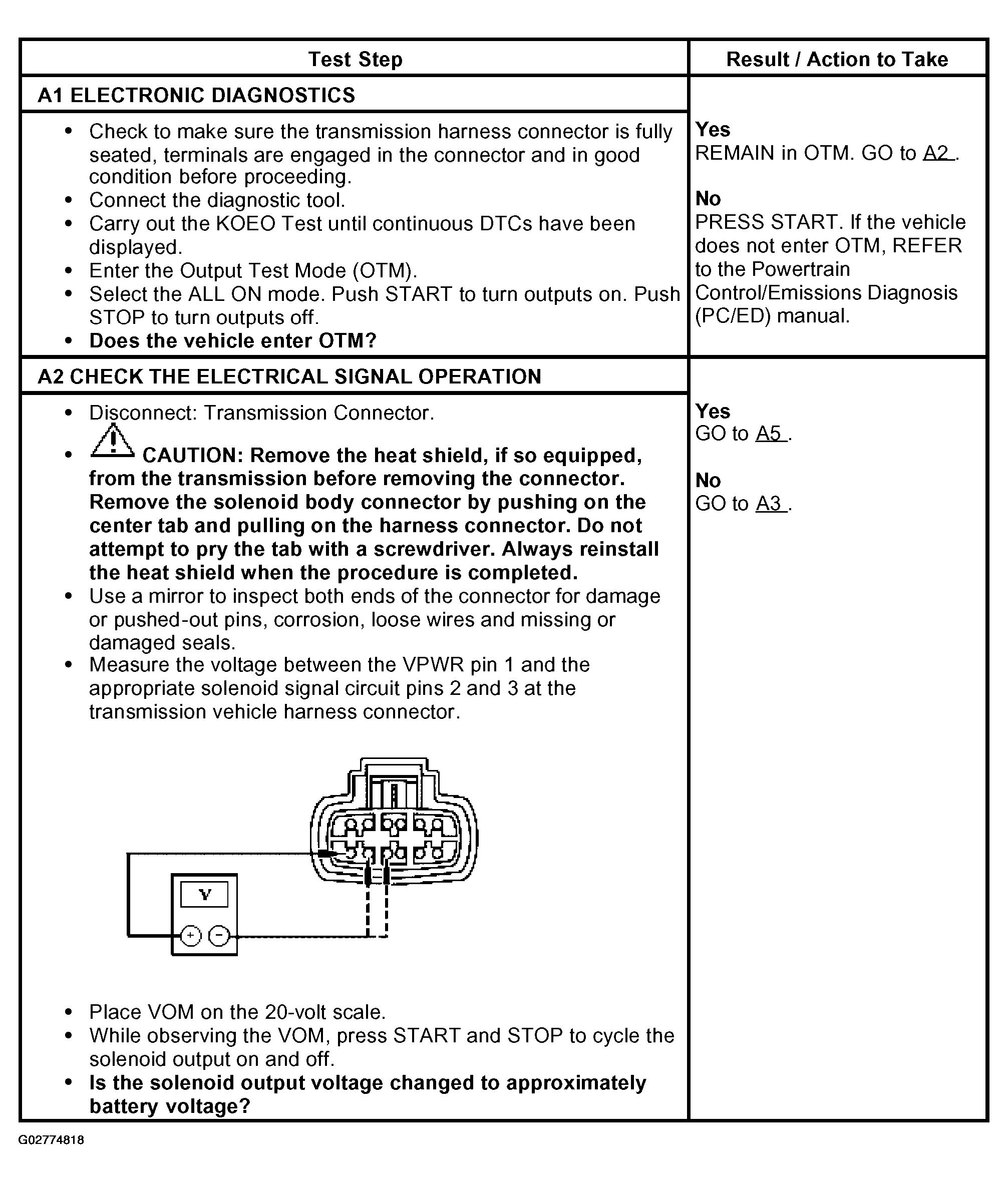

Fig 1: Pinpoint Test A: Shift Solenoids Step A1-A2
G02774818Courtesy of FORD MOTOR CO.

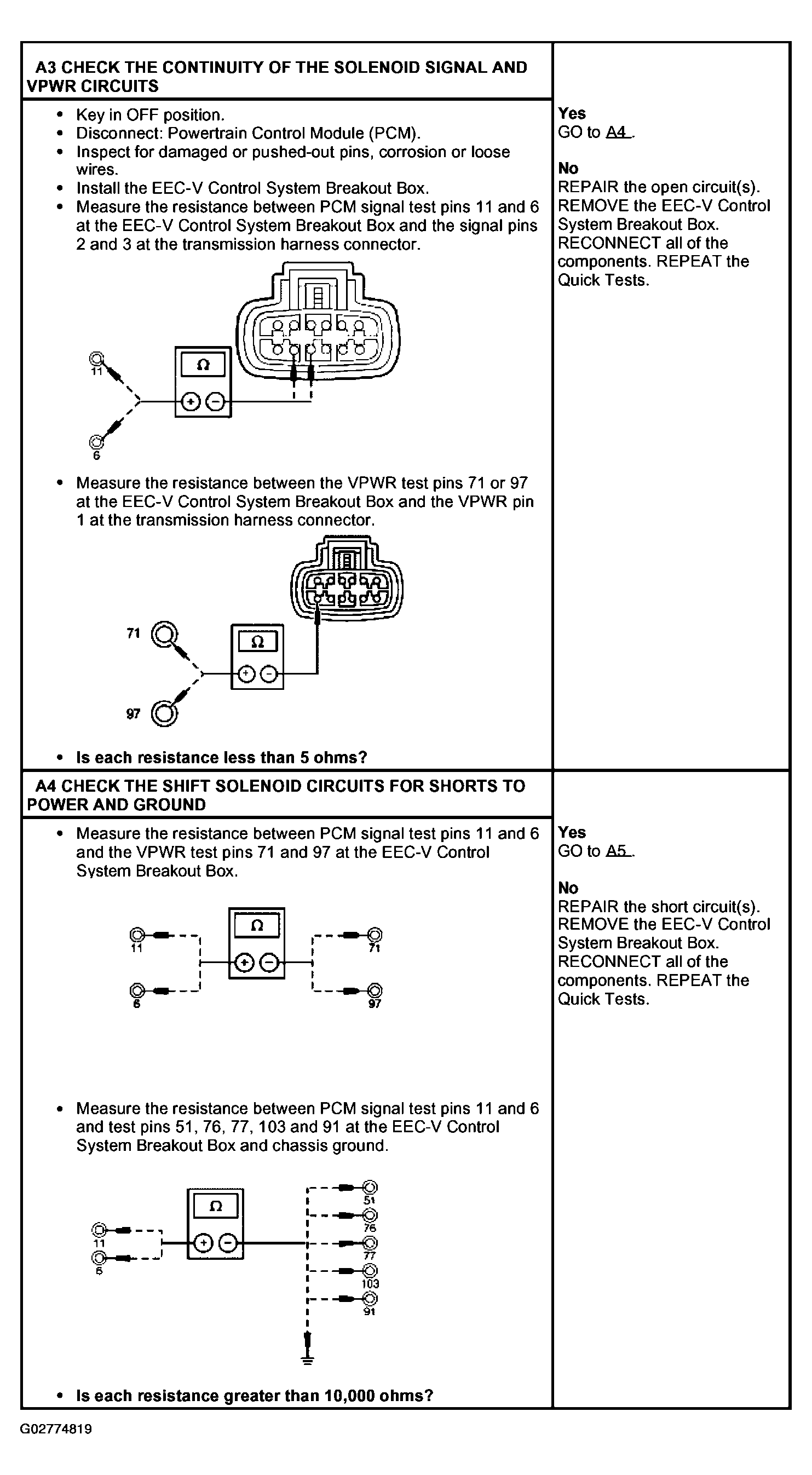

Fig 2: Pinpoint Test A: Shift Solenoids Step A3-A4
G02774819Courtesy of FORD MOTOR CO.

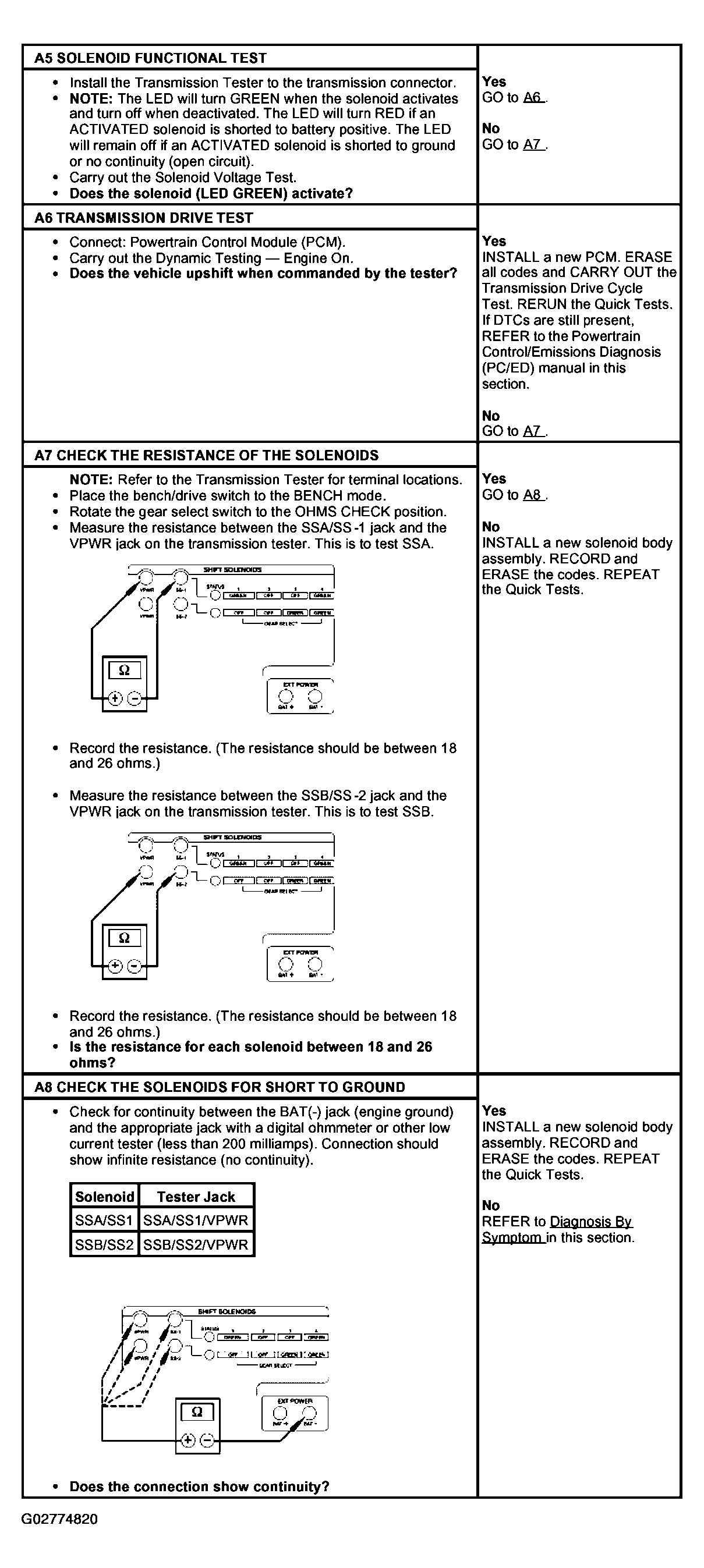

Fig 3: Pinpoint Test A: Shift Solenoids Step A5-A8
G02774820Courtesy of FORD MOTOR CO.
