Transmission, Disassembled View

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

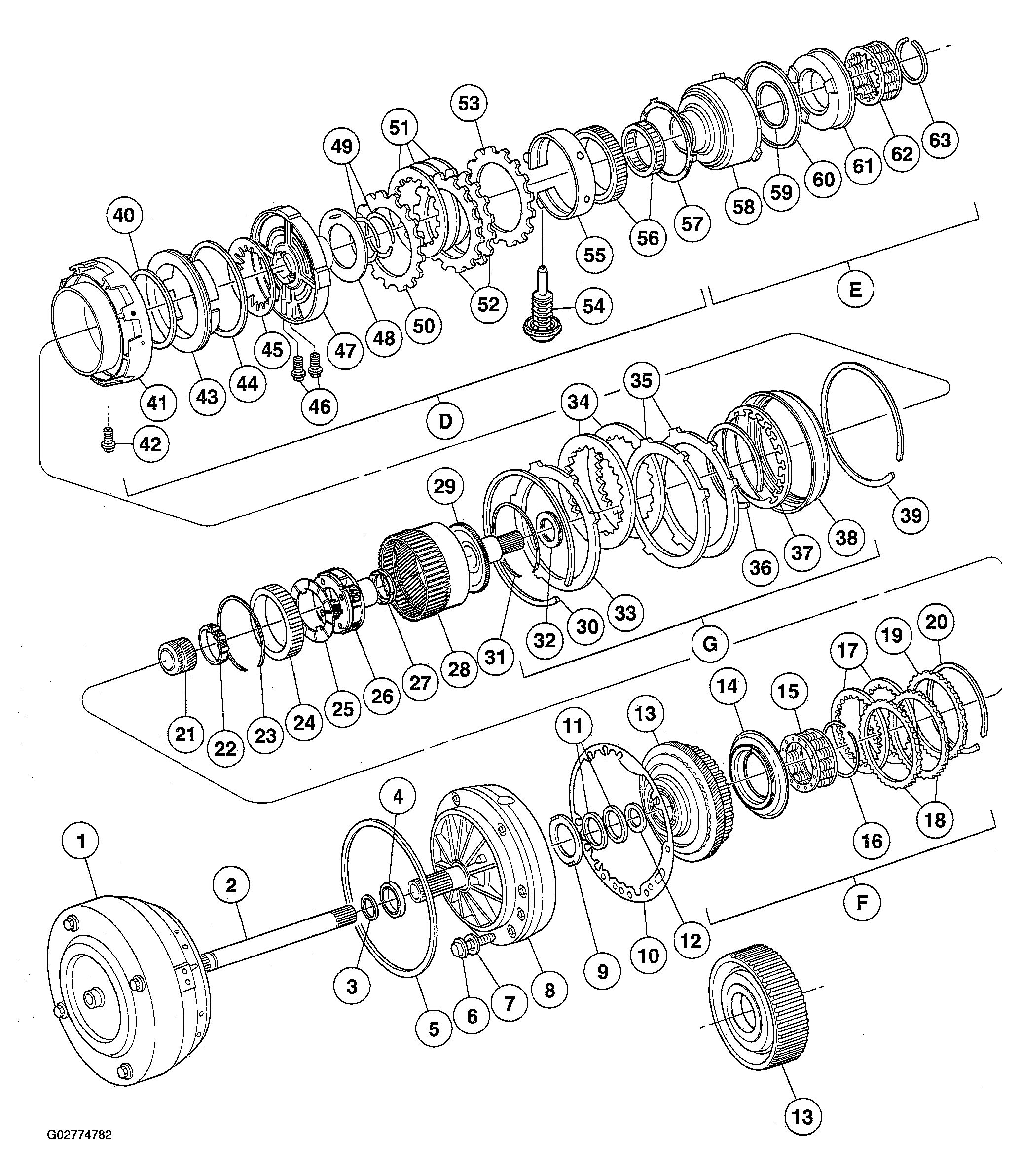

Fig 1: Disassembling View Transmission (1 Of 9)

G02774782

Courtesy of FORD MOTOR CO.

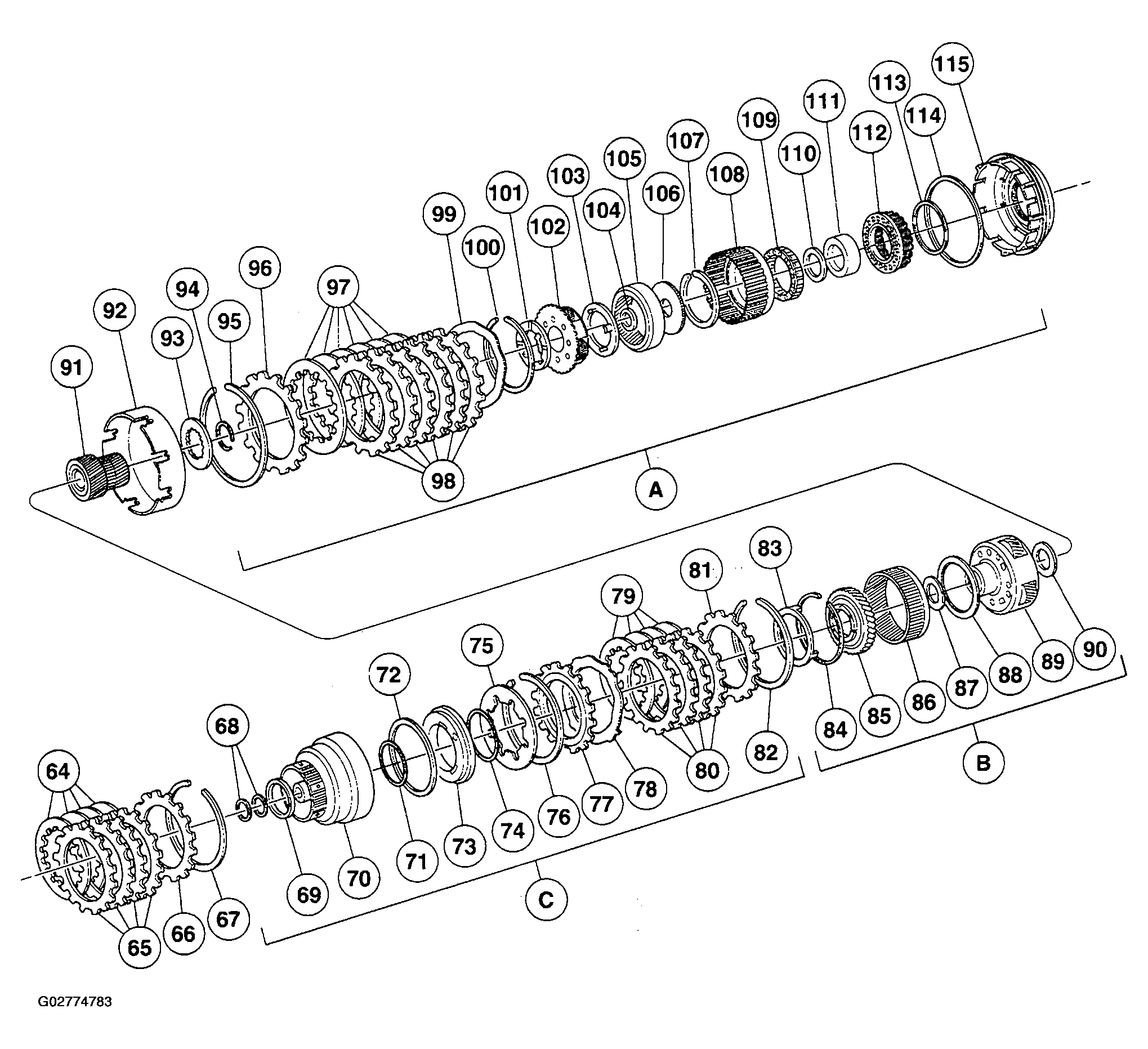

Fig 2: Disassembling View Transmission (2 Of 9)

G02774783

Courtesy of FORD MOTOR CO.

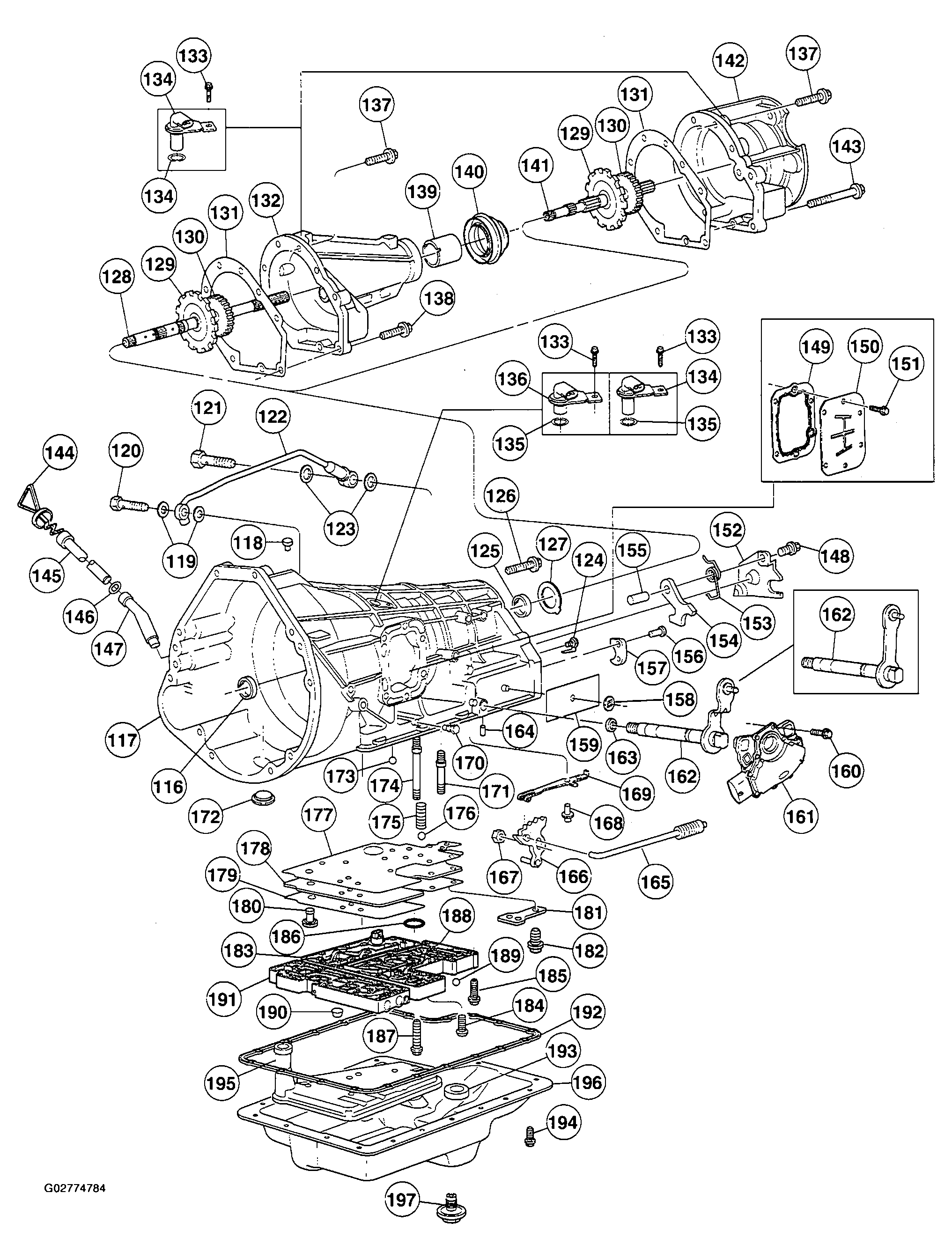

Fig 3: Disassembling View Transmission (3 Of 9)

G02774784

Courtesy of FORD MOTOR CO.

Fig 4: Disassembling View Transmission (4 Of 9)

G02774785

Courtesy of FORD MOTOR CO.

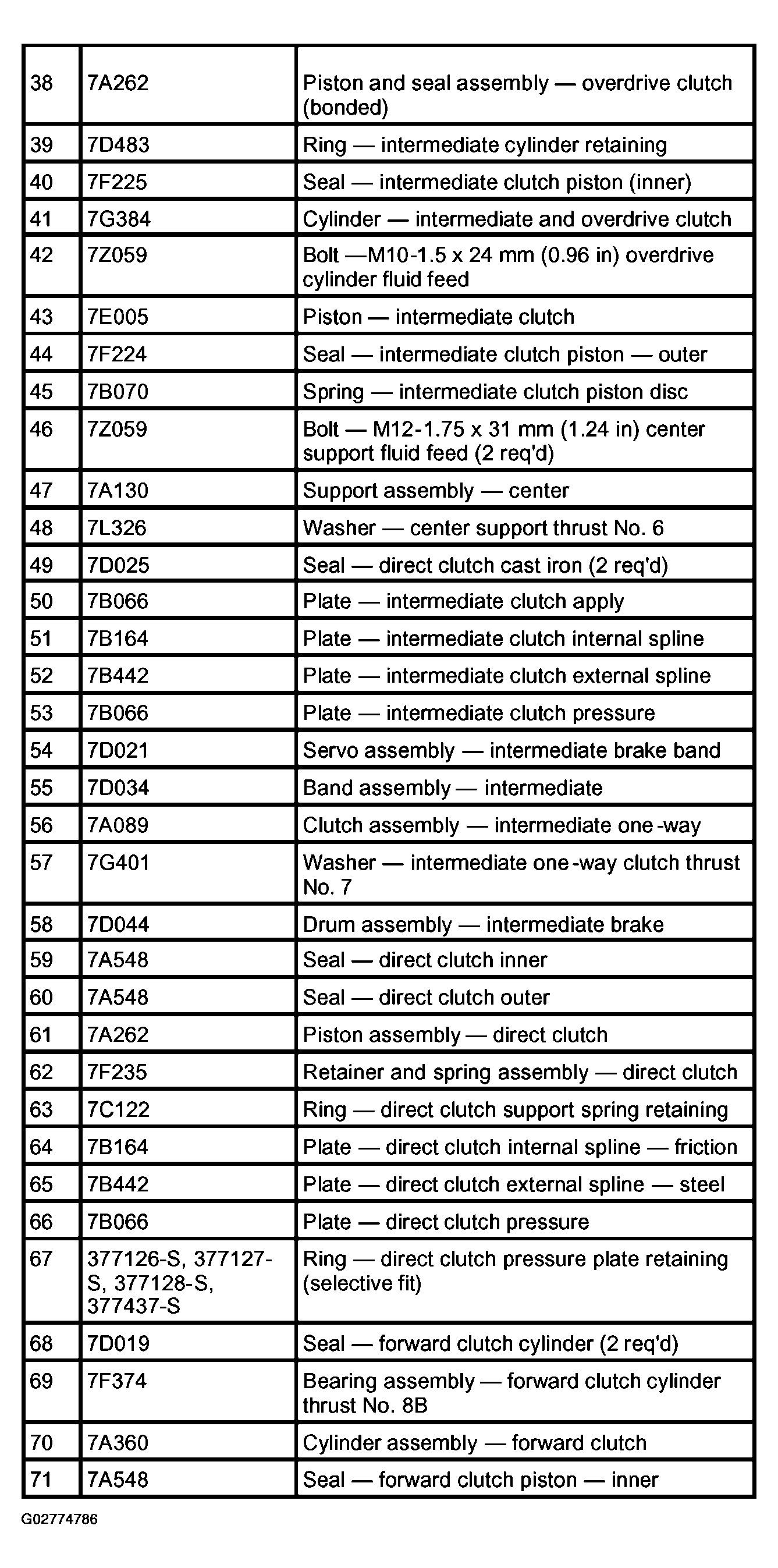

Fig 5: Disassembling View Transmission (5 Of 9)

G02774786

Courtesy of FORD MOTOR CO.

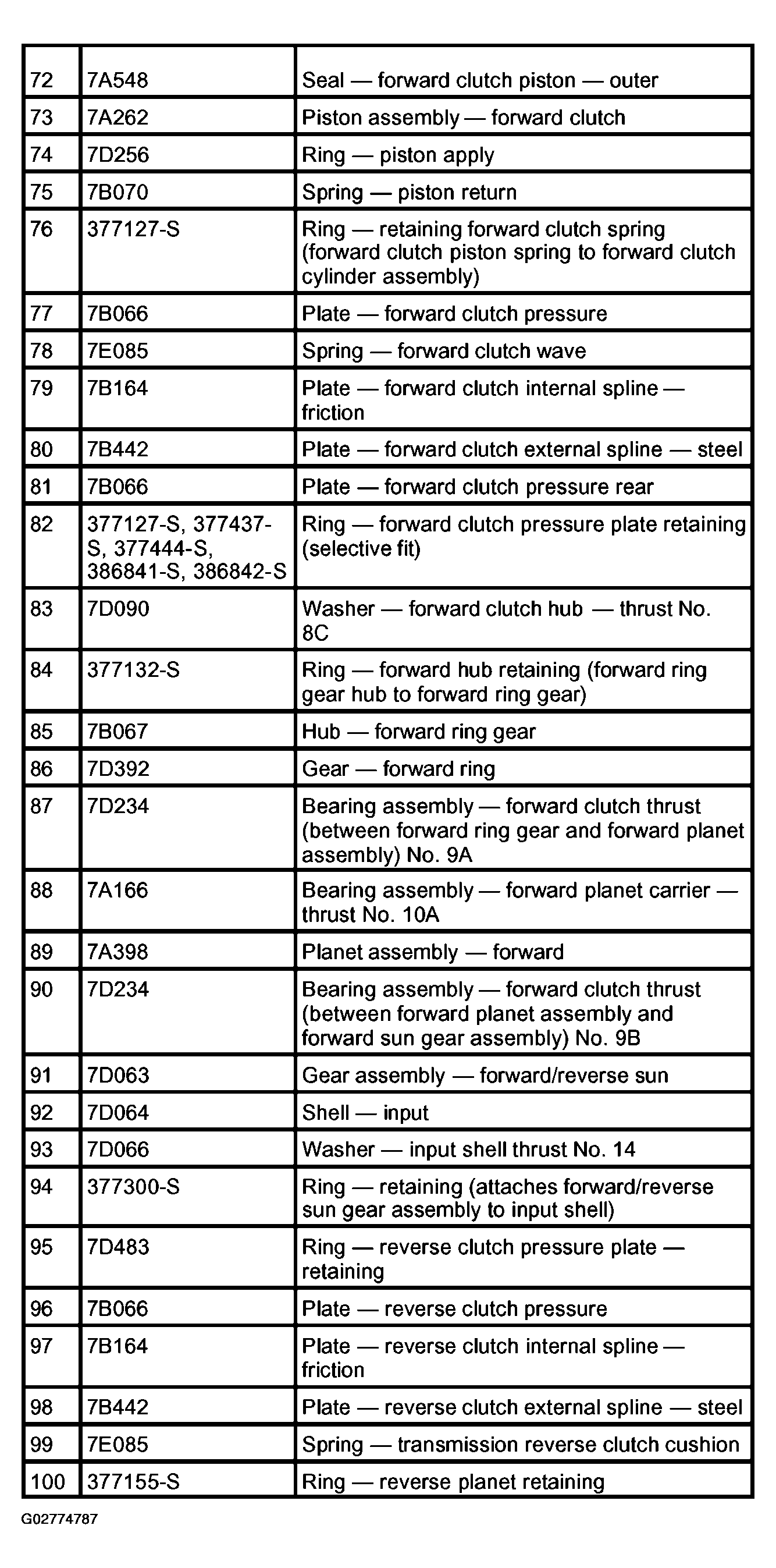

Fig 6: Disassembling View Transmission (6 Of 9)

G02774787

Courtesy of FORD MOTOR CO.

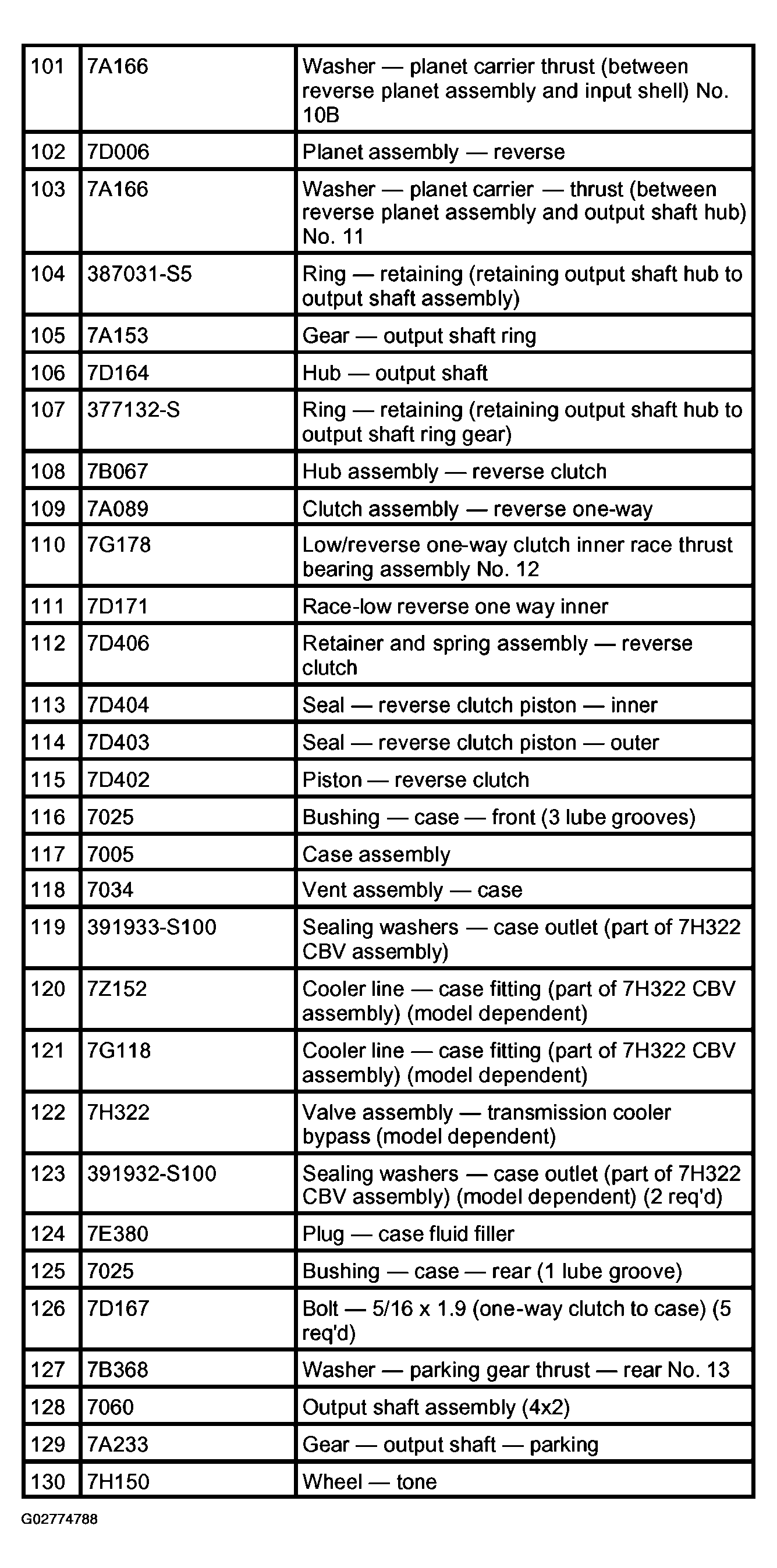

Fig 7: Disassembling View Transmission (7 Of 9)

G02774788

Courtesy of FORD MOTOR CO.

Fig 8: Disassembling View Transmission (8 Of 9)

G02774789

Courtesy of FORD MOTOR CO.

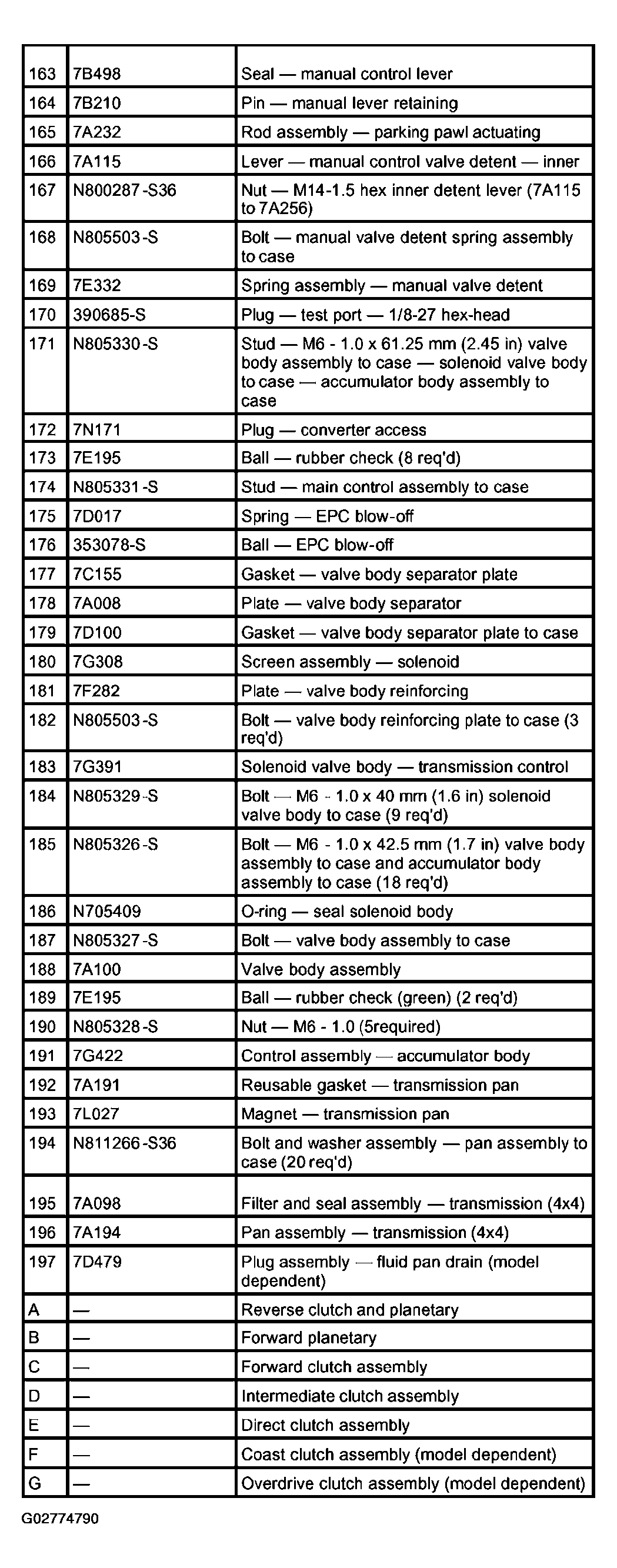

Fig 9: Disassembling View Transmission (9 Of 9)

G02774790

Courtesy of FORD MOTOR CO.
