Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Always disconnect the battery ground cable prior to working on the electronic engine controls.
  1. Disconnect the battery ground cable. For additional information, on vehicles equipped with dual batteries, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the auxiliary battery positive cable (LH side of the engine compartment).

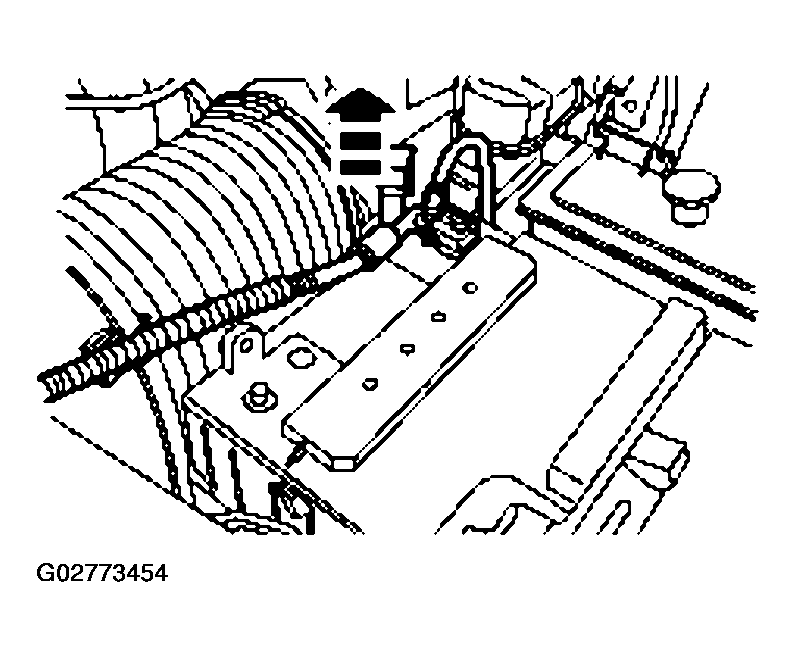

    Fig 1: Disconnecting Auxiliary Battery Positive Cable (LH Side Of Engine Compartment)
    G02773454Courtesy of FORD MOTOR CO.
  3. Remove the auxiliary battery cover.

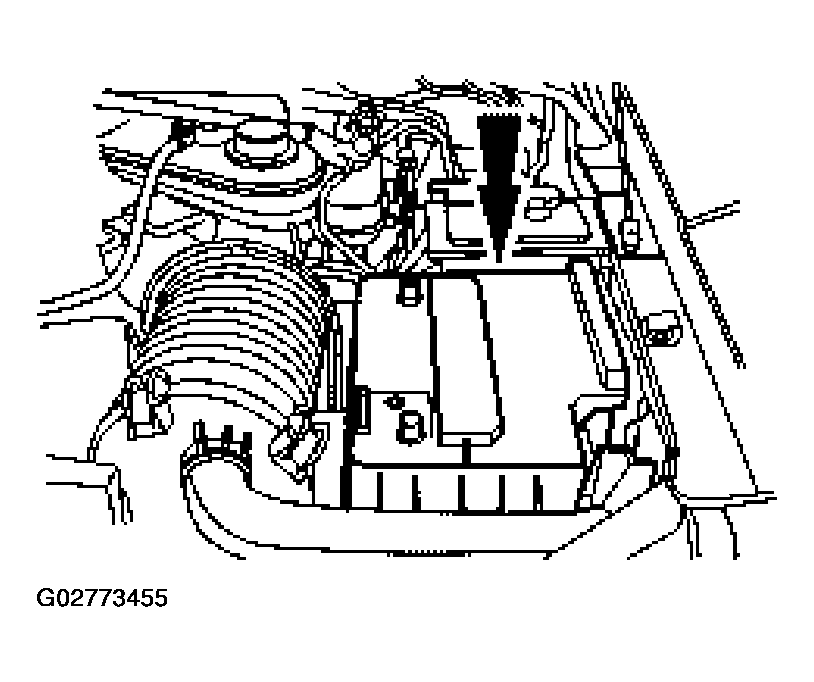

    Fig 2: Removing Auxiliary Battery Cover
    G02773455Courtesy of FORD MOTOR CO.
  4. Disconnect the powertrain control module (PCM) electrical connectors.

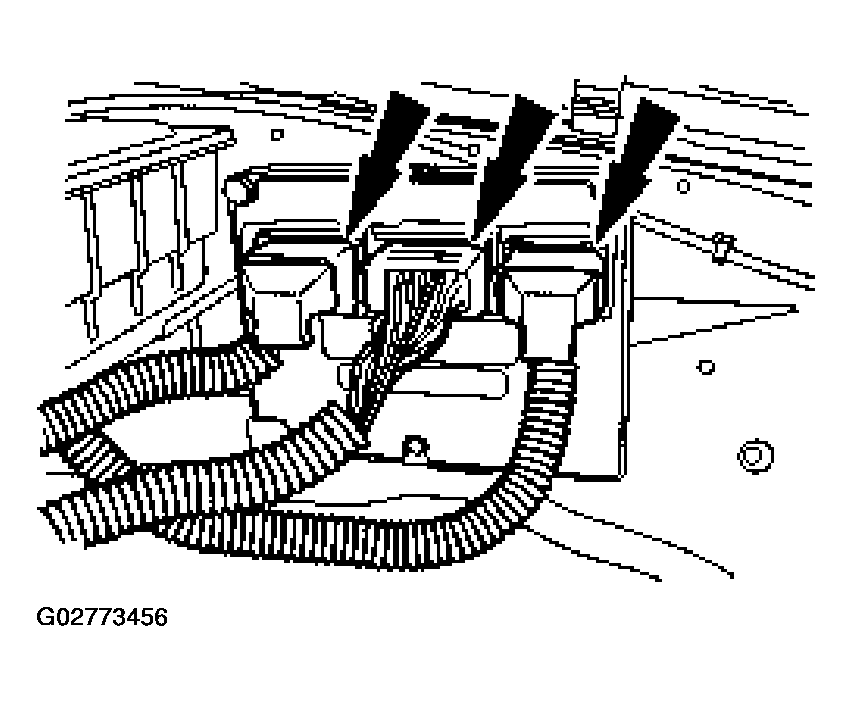

    Fig 3: Disconnecting Powertrain Control Module (PCM) Electrical Connectors
    G02773456Courtesy of FORD MOTOR CO.
  5. Remove the bolts and PCM.

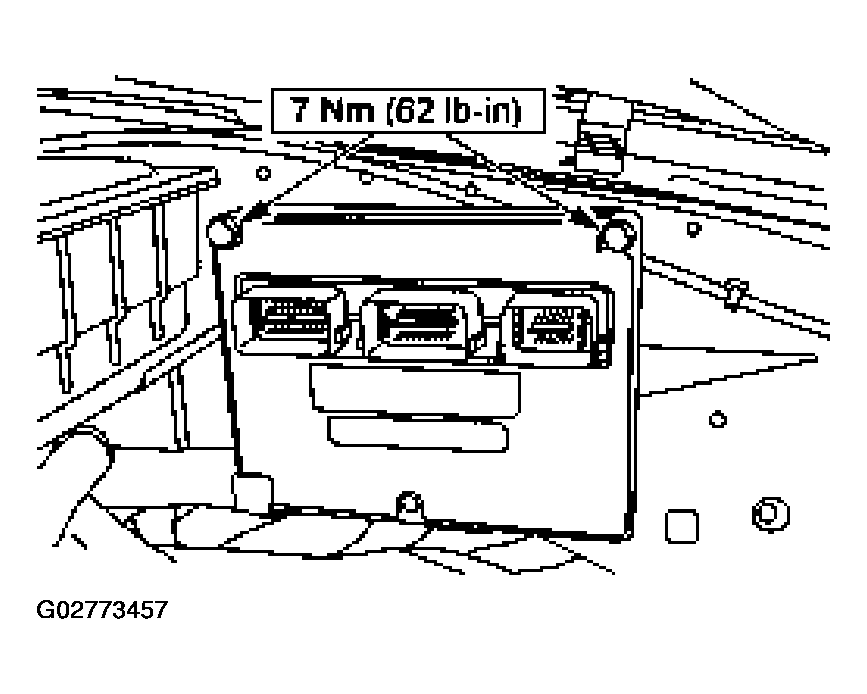

    Fig 4: Removing Bolts And PCM With Torque Specifications
    G02773457Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
