Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
    2. NOTE: Fuel tube disconnected for clarity.

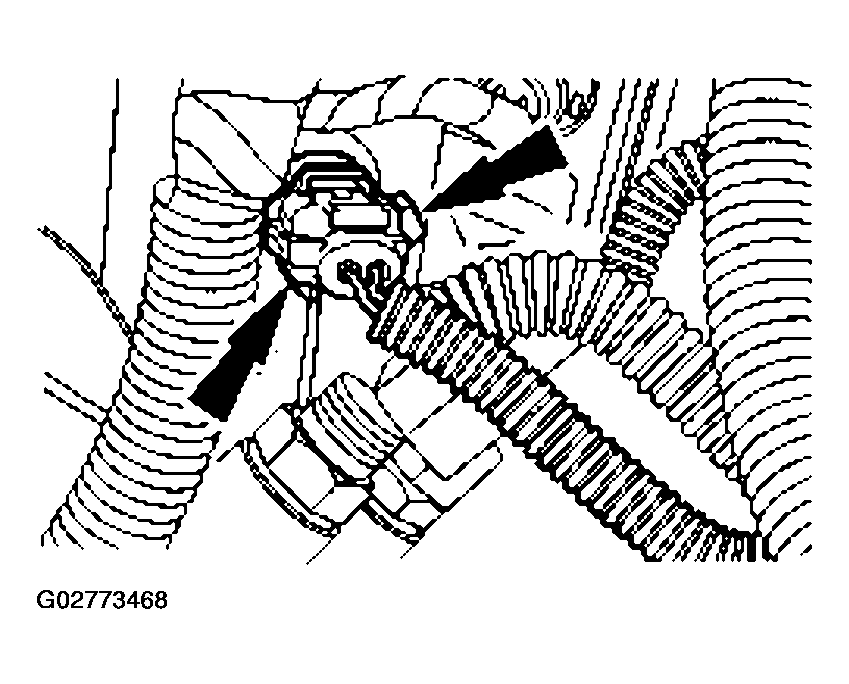

    Fig 1: Disconnecting Intake Air Temperature (IAT) Electrical Connector
    G02773468Courtesy of FORD MOTOR CO.
  2. Disconnect the intake air temperature (IAT) electrical connector and wiring harness retainer.
  3. Remove the IAT sensor.

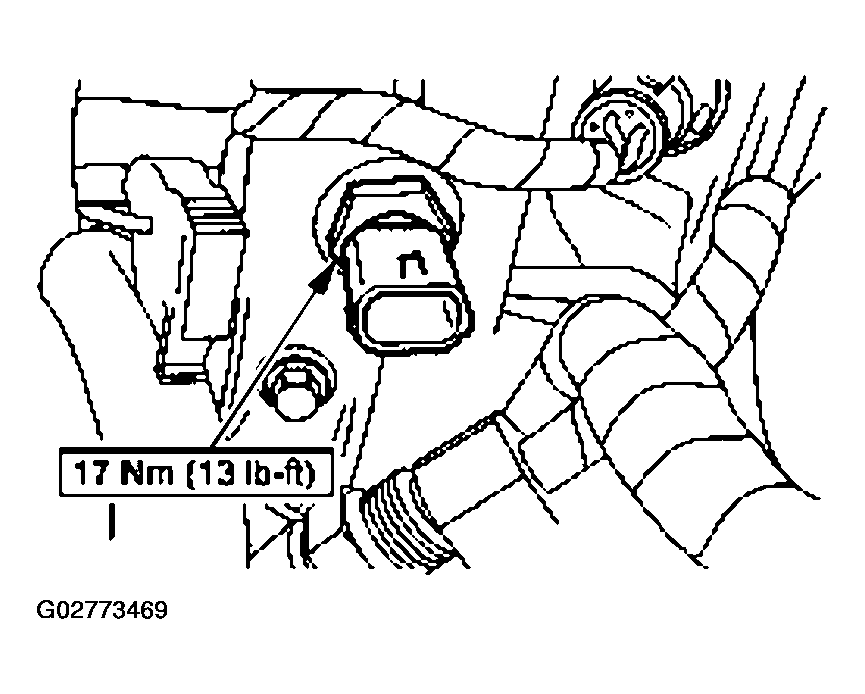

    Fig 2: Removing IAT Sensor With Torque Specifications
    G02773469Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
