Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the LH and RH negative battery cables. Refer to BATTERY, MOUNTING AND CABLES .

NOTE: The crankshaft position (CKP) sensor is located underneath the air conditioning compressor.

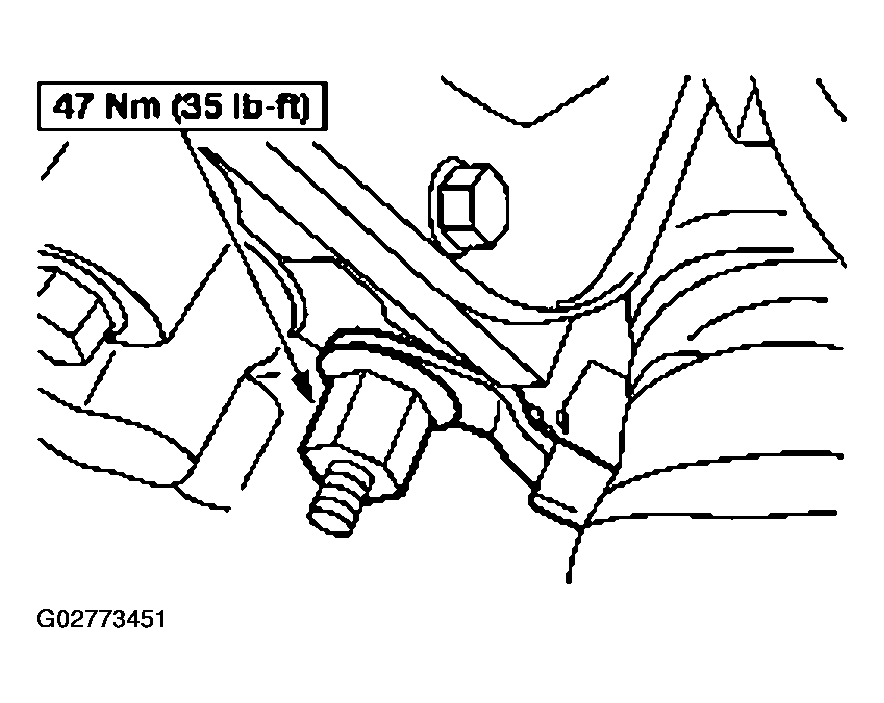

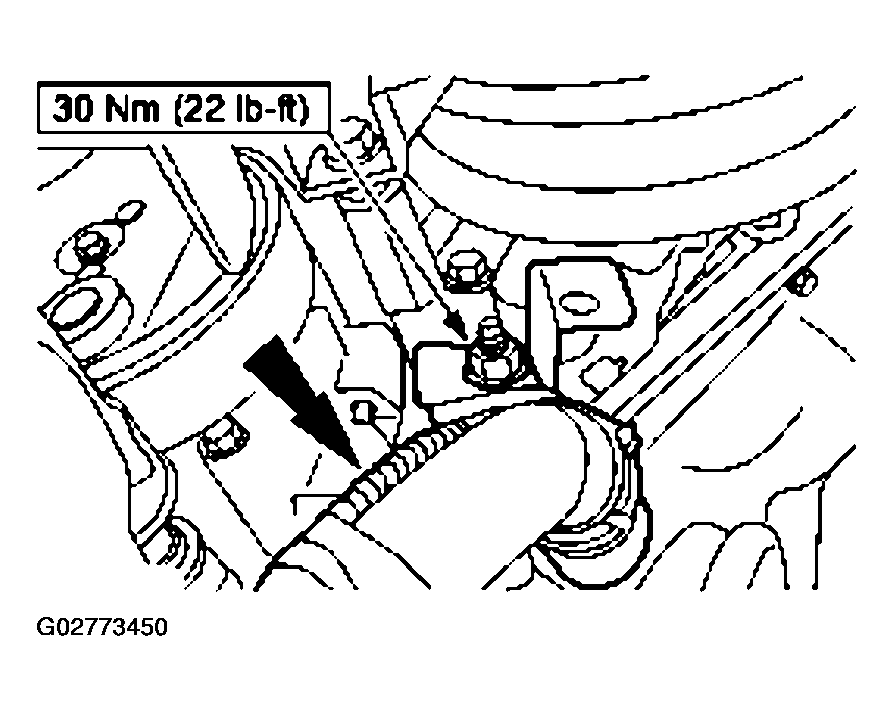

Fig 1: Positioning Positive Battery Cable And Bracket Aside With Torque Specifications

Courtesy of FORD MOTOR CO.

Remove the nut and position the positive battery cable and bracket aside.
Remove the bolt and position the battery negative cable aside.

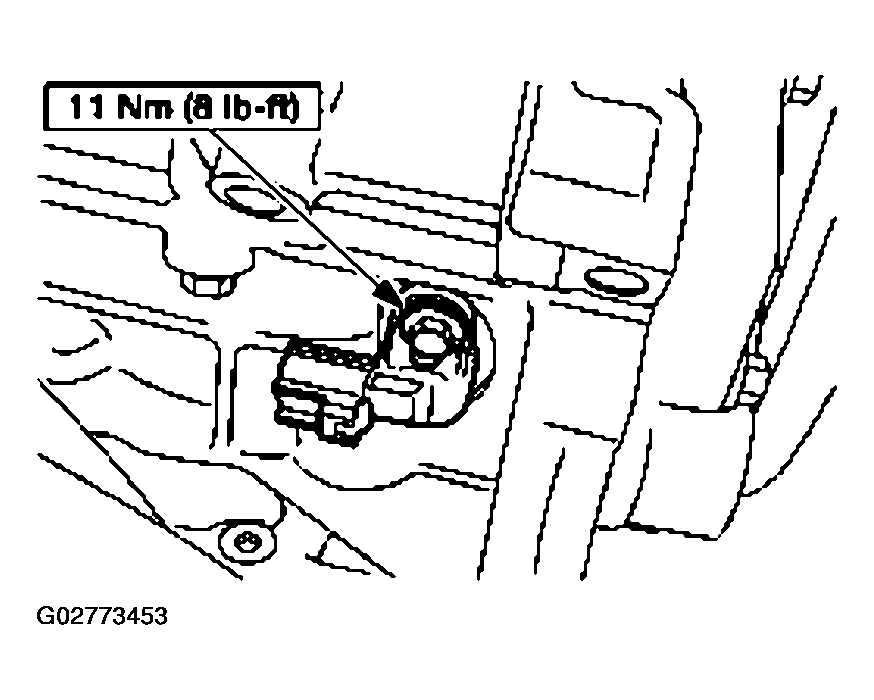

Fig 2: Removing Bolt And Positioning Battery Negative Cable Aside With Torque Specifications
Courtesy of FORD MOTOR CO.
Disconnect the CKP sensor electrical connector.

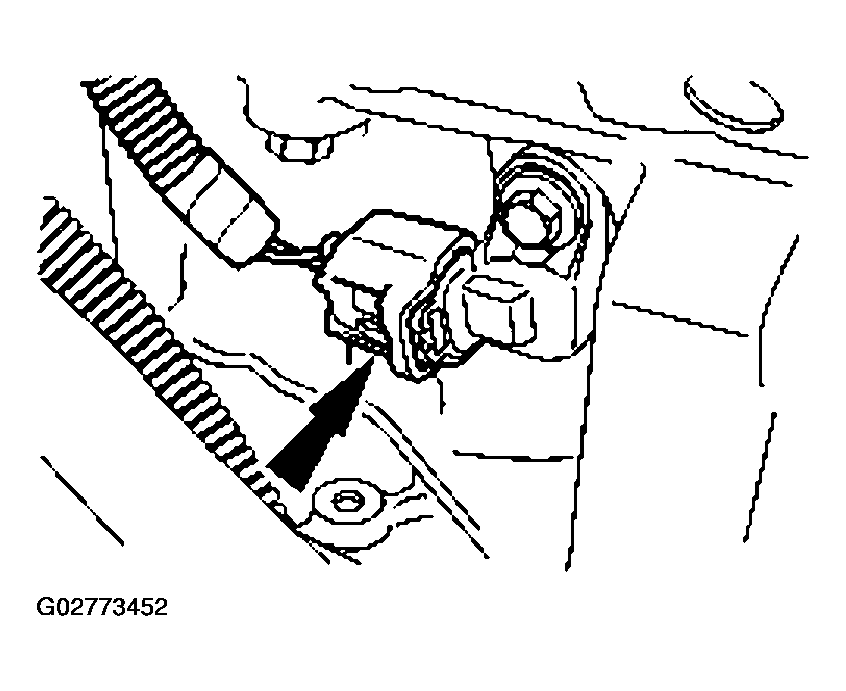

Fig 3: Disconnecting CKP Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolt and the CKP sensor.

Fig 4: Removing Bolt OF CKP Sensor With Torque Specifications
Courtesy of FORD MOTOR CO.

NOTE: Apply clean engine oil to the O-ring before installation.

To install, reverse the removal procedure.
