Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use care when removing the instrument panel steering column cover or damage to the cover locating tab can occur.
  1. Remove the instrument panel steering column cover.
    1. Unlock the retainers.
    2. Remove the instrument panel steering column cover.
    Fig 1: Removing Instrument Panel Steering Column Cover
    G02773476Courtesy of FORD MOTOR CO.
  2. Remove the barometric pressure (BARO) sensor.
    • Disconnect the BARO sensor electrical connector.
    • Release the clip and remove the BARO sensor.

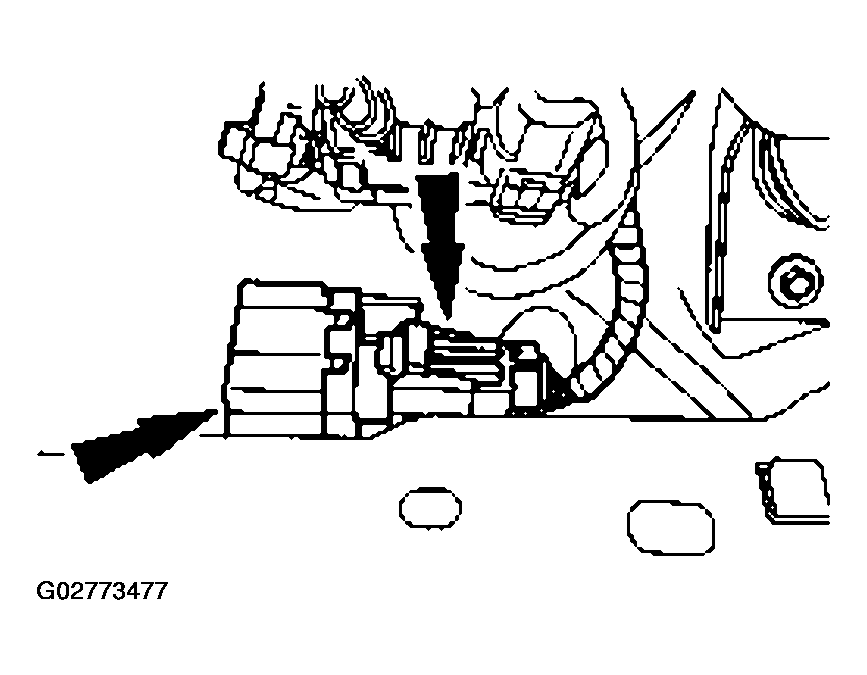

    Fig 2: Removing Barometric Pressure (BARO) Sensor
    G02773477Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
