Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. Refer to ENGINE - 5.4L (2V) for the 5.4L or ENGINE - 6.8L for the 6.8L.
  2. Disconnect the knock sensor (KS) electrical connector.
    Fig 1: Disconnecting Knock Sensor (KS) Electrical Connector
    G02773441Courtesy of FORD MOTOR CO.
  3. Remove the bolt and the KS.

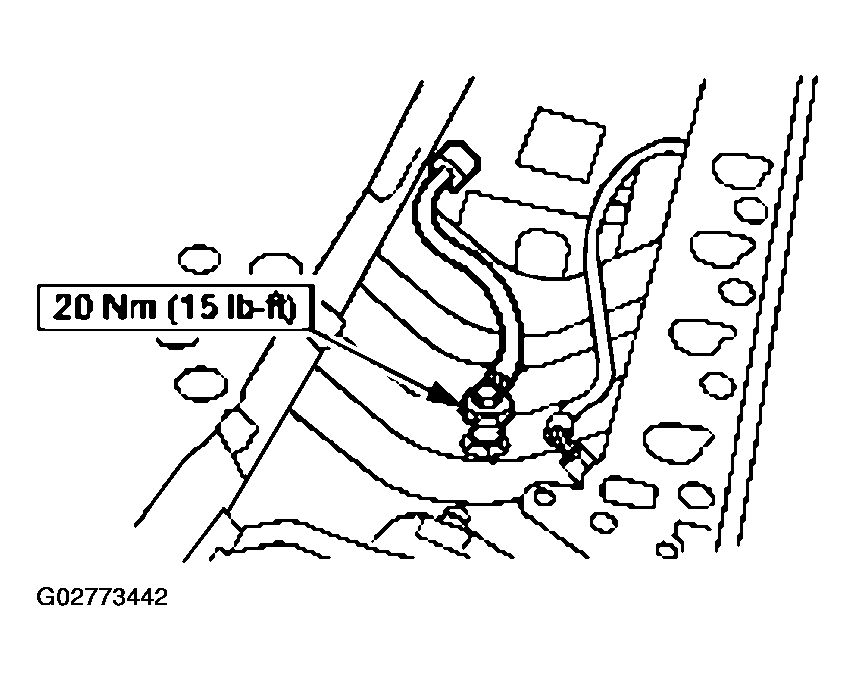

    Fig 2: Removing Bolt OF KS
    G02773442Courtesy of FORD MOTOR CO.
    4. NOTE: Make sure the black tapered side is facing up.
  4. To install, reverse the removal procedure.
