Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. Refer to ENGINE - 5.4L (2V) for the 5.4L or ENGINE - 6.8L for the 6.8L.
  2. Remove the cylinder head temperature (CHT) sensor.
    1. Disconnect the electrical connector.
    2. Remove the CHT sensor.

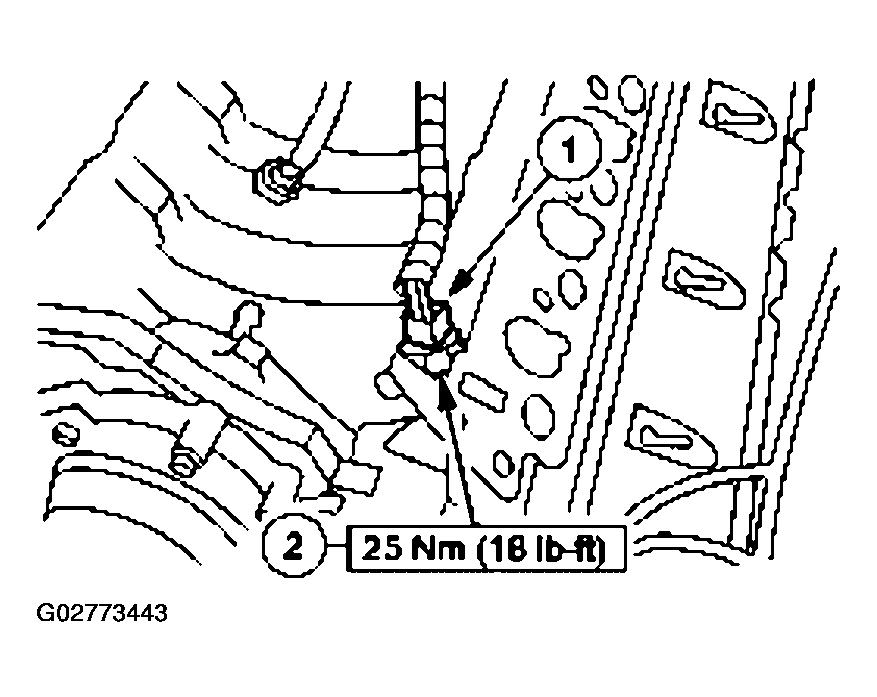

    Fig 1: Removing Cylinder Head Temperature (CHT) Sensor
    G02773443Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
