Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
Remove the accessory drive belt from the A/C compressor pulley.

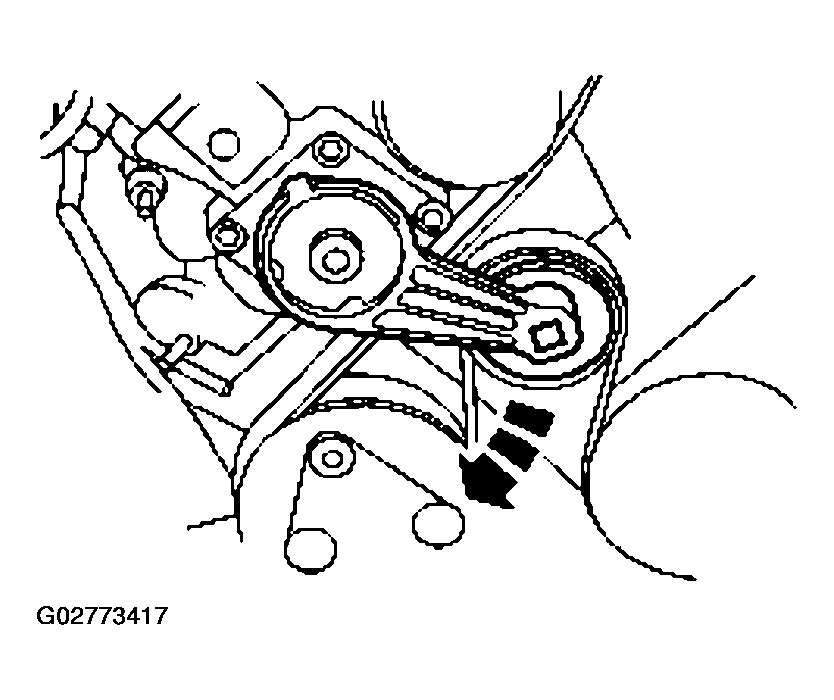

Fig 1: Removing Accessory Drive Belt From A/C Compressor Pulley
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. Refer to JACKING & LIFTING .
Disconnect the wiring harness connector from the crankshaft position sensor.

Fig 2: Disconnecting Wiring Harness Connector From Crankshaft Position Sensor
Courtesy of FORD MOTOR CO.
Disconnect the A/C compressor field coil electrical connector.

Fig 3: Disconnecting A/C Compressor Field Coil Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: It is not necessary to remove the A/C compressor bolts.

Fig 4: Locating Bolts

Courtesy of FORD MOTOR CO.

Loosen the bolts enough for the compressor to slide down one inch, allowing access for crankshaft position (CKP) sensor removal.
Remove the bolt and the CKP sensor.

Fig 5: Removing Bolt Of CKP Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
