Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner outlet tube. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  2. Remove the exhaust gas recirculation (EGR) valve-to-exhaust manifold tube.
    1. Remove the two differential pressure feedback EGR sensor hoses.
    2. Disconnect the EGR valve tube fittings.

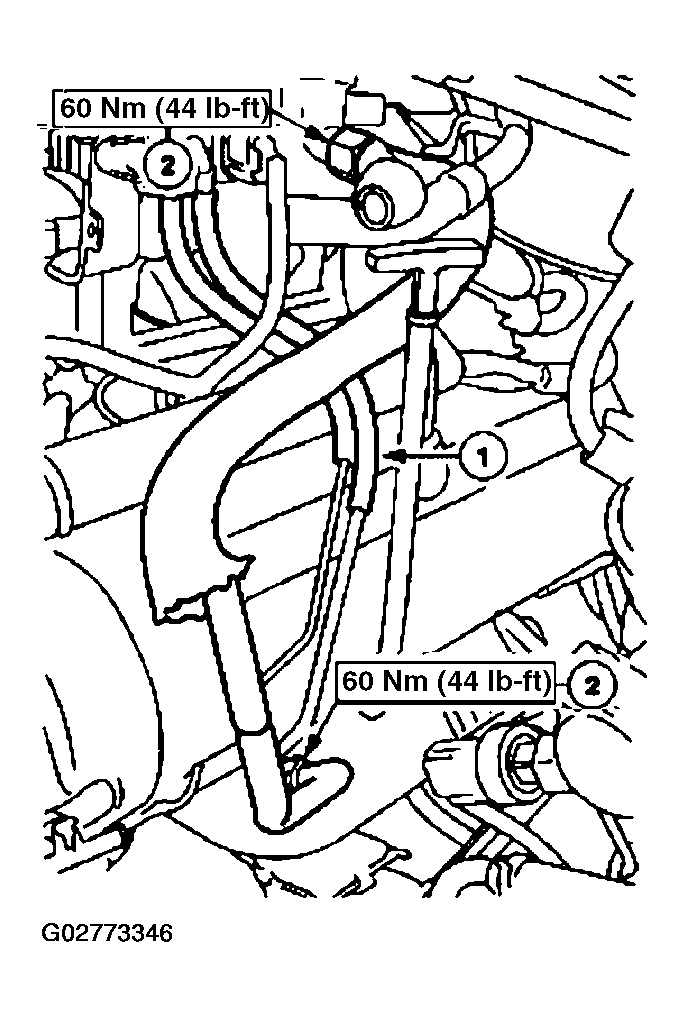

      Fig 1: Disconnecting EGR Valve Tube Fittings
      G02773346Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
