Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the differential pressure feedback EGR (if equipped).
    1. Disconnect the electrical connector.
    2. Disconnect the hoses.
    3. Remove the bolts (nuts if applicable).

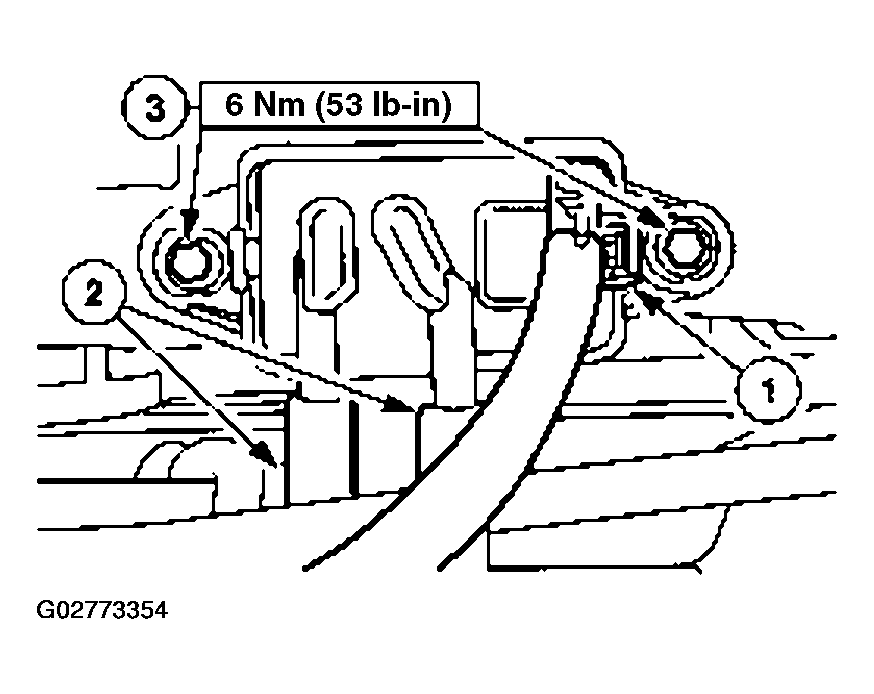

      Fig 1: Disconnecting Electrical Connector & Vacuum Hoses
      G02773354Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
