Central Junction Box

WARNING: This page is about a different car, the 1999 Mercury Mystique and 1999 Ford Contour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Central junction box is located under driver's side of instrument panel. See Figure and Figure . Central junction box may also be referred to as passenger compartment fuse panel.

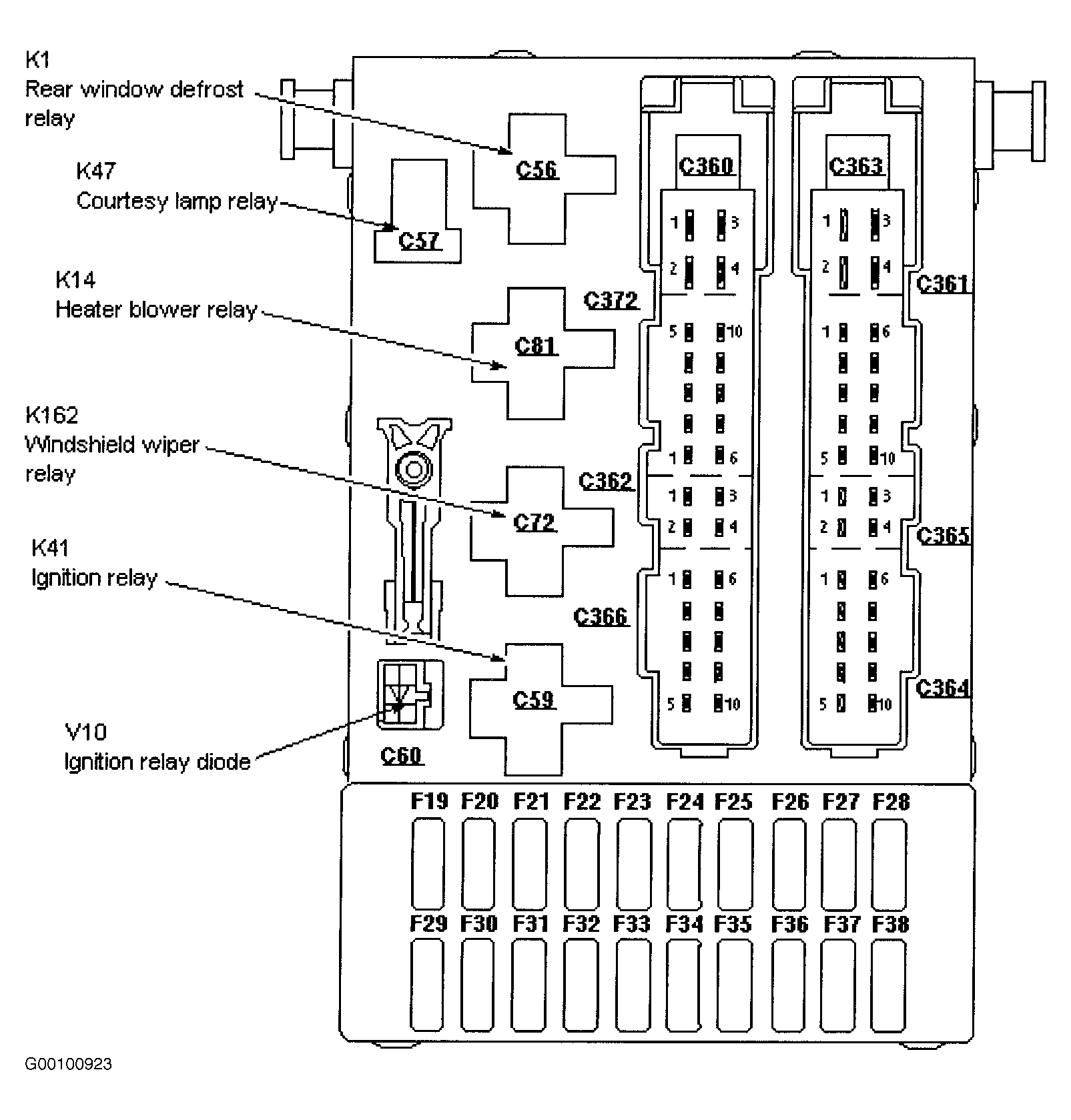

Fig 1: Identifying Central Junction Box Components
G00100923Courtesy of FORD MOTOR CO.
CENTRAL JUNCTION BOX FUSE & CIRCUIT IDENTIFICATION

Fuse Number Amperage Circuit
F19 ..... Not Used
F20 10 Wiper Switch, Wiper Relay, Wiper Motor
F21 40 Power Window Switch (Driver & Passenger), One Touch Down Relay, Moonroof Unit
F22 ..... Not Used
F23 15 Turn Signal Switch, Gearshift Lever Unit, Heater Mode Switch, Air Temperature Actuator, Overspeed Warning Module, Cruise Control Module, P1 Busbar (Without Cruise Control), Park/Neutral Position Switch, Daytime Running Light Relay, Door Lock Switch (Driver & Passenger), Power Window Switch (Driver)
F24 15 , DLC, Stoplamp Switch, Brake Pedal Position Switch (Cruise Control)
F25(1) 20 Remote Front Amplifier, Power Door Lock Motors, Power Door Lock Switch (Driver & Passenger), Panic Alarm, Headlight Relay, Anti-Theft/Central Lock Module, Panic Alarm Stop Lamp Relay
F25 (2) 20 Remote Front Amplifier, Power Door Lock Motors, Power Door Lock Switch (Driver & Passenger), Panic Alarm, Headlight Relay, Anti-Theft/Central Lock Module, Panic Alarm Stop Lamp Relay
F25(3) 20 Remote Amplifier (Front), Power Door Lock Motors, Power Door Lock Switch (Driver & Passenger), Power Door Lock Control Relay
F25(4) 20 Remote Amplifier (Front), Power Door Lock Motors, Power Door Lock Switch (Driver & Passenger), Door Entry Lamp (Passenger Side), Power Door Lock Relay
F26 7.5 Turn Signal Switch, Light Switch
F27 15 Front Cigar Lighter
F28 30 Power Seat Switch
F29 30 Rear Window Defogger Grid, Rear Window Defogger Switch
F30 7.5 Power Antenna Timing Unit, Traction Control Disable Unit, Gearshift Lever Unit, Instrument Cluster, Instrument Interfact Module, Instrument Cluster
F31 7.5 License Plate Lamp, Instrument Interface Module, Illumination Dimmer
F32 7.5 Anti-Theft/Central Locking Module, Power Antenna Timing Unit, Radio (Without Anti-Theft/Central Locking & Power Antenna)
F33 7.5 Left Rear Lamp Assembly, Left Front Park-Turn Lamps
F34(5) 7.5 Power Antenna Timing Unit, Footwell Lamps, Radio, Anti-Theft ON Indicator, Gearshift Lever Unit, Power Mirror Adjust Switch, Door Entry Lamps (Driver & Passenger), Anti-Theft/Central Locking Module, Interior Lamp (Front), Trunk Lamp, Vanity Mirror Lamp (Right)
F34(6) 7.5 Power Antenna Timing Unit, Footwell Lamps, Radio, Anti-Theft ON Indicator, Gearshift Lever Unit, Power Mirror Adjust Switch, Door Entry Lamp (Driver), Anti-Theft/Central Locking Module, Interior Lamp (Front), Trunk Lamp, Vanity Mirror Lamp (Right), Door Entry Lamp (Driver)
F35 7.5 Right Rear Lamp Assembly, Right Front Park-Turn Lamps
F36 ..... Not Used
F37 30 Blower Motor Relay
F38 7.5 Air Bag Module
(1) For lower option content vehicles with anti-theft alarm and with central locking.
(2) For higher option content vehicles with anti-theft alarm, and with central locking.
(3) For lower option content vehicles WITHOUT anti-theft/central locking module.
(4) For higher option content vehicles WITHOUT anti-theft/central locking module.
(5) For vehicles without anti-theft alarm.
(6) For vehicles with anti-theft alarm.
