Battery Junction Box
WARNING: This page is about a different car, the 1999 Mercury Mystique and 1999 Ford Contour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

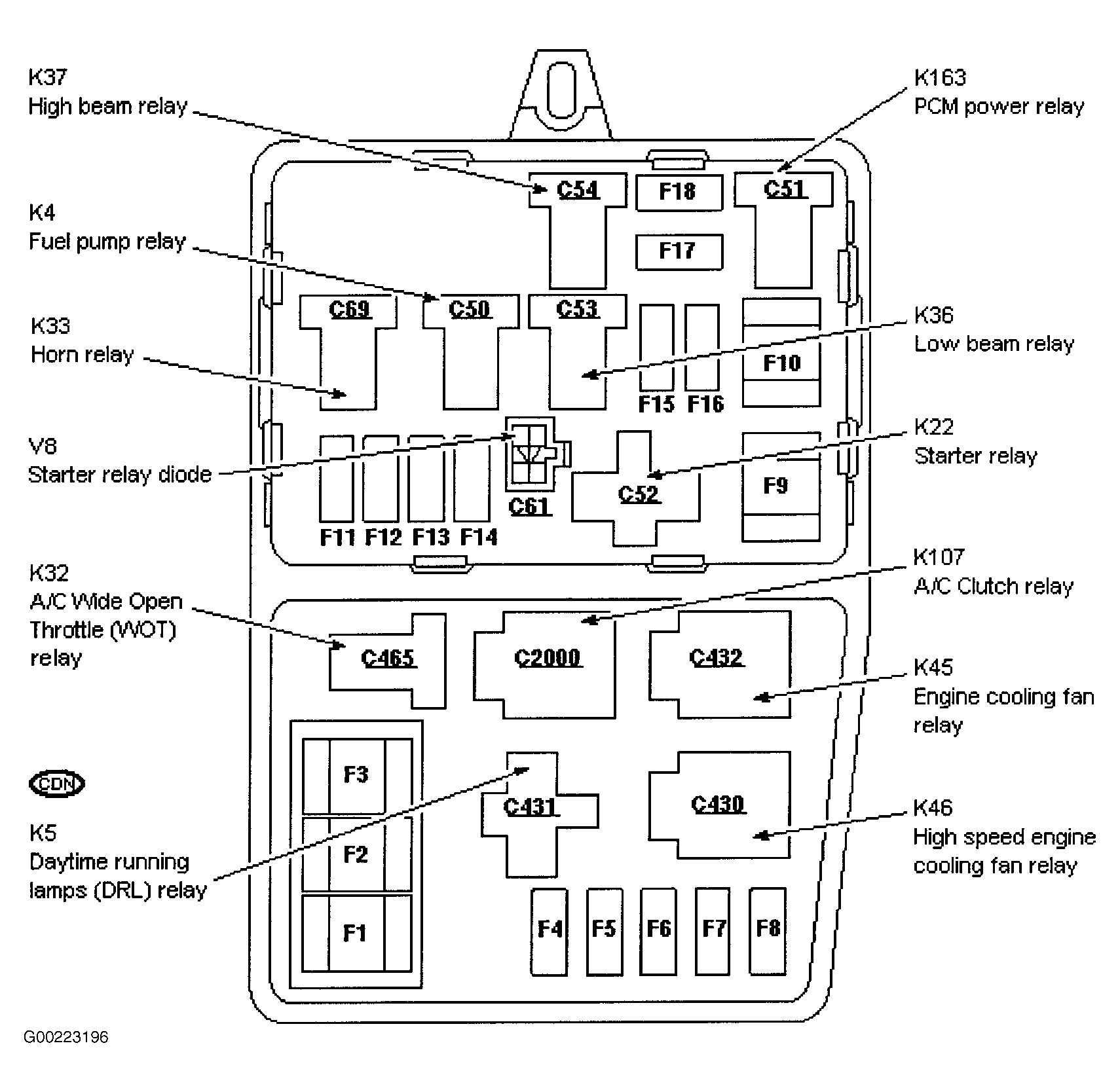

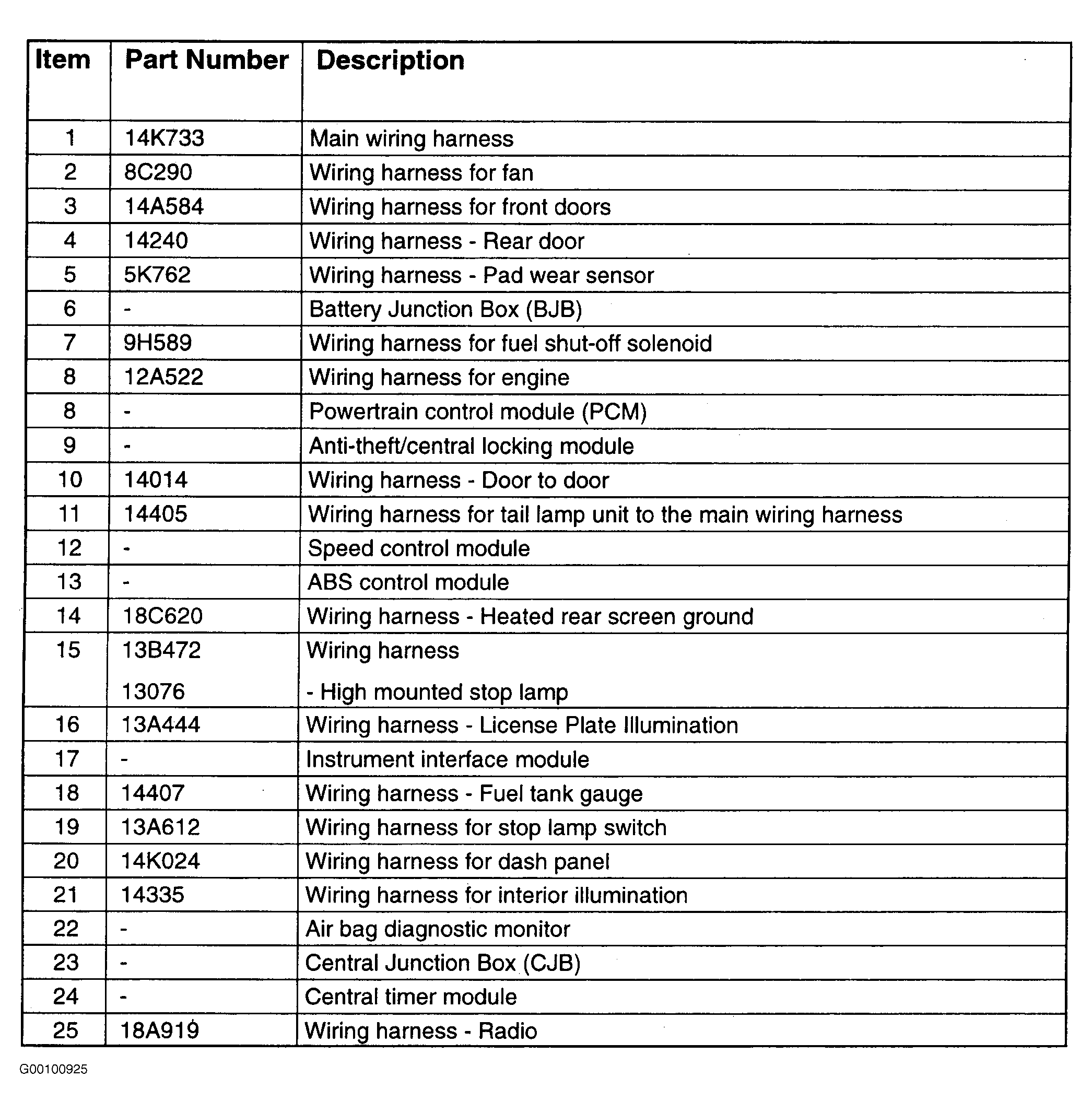

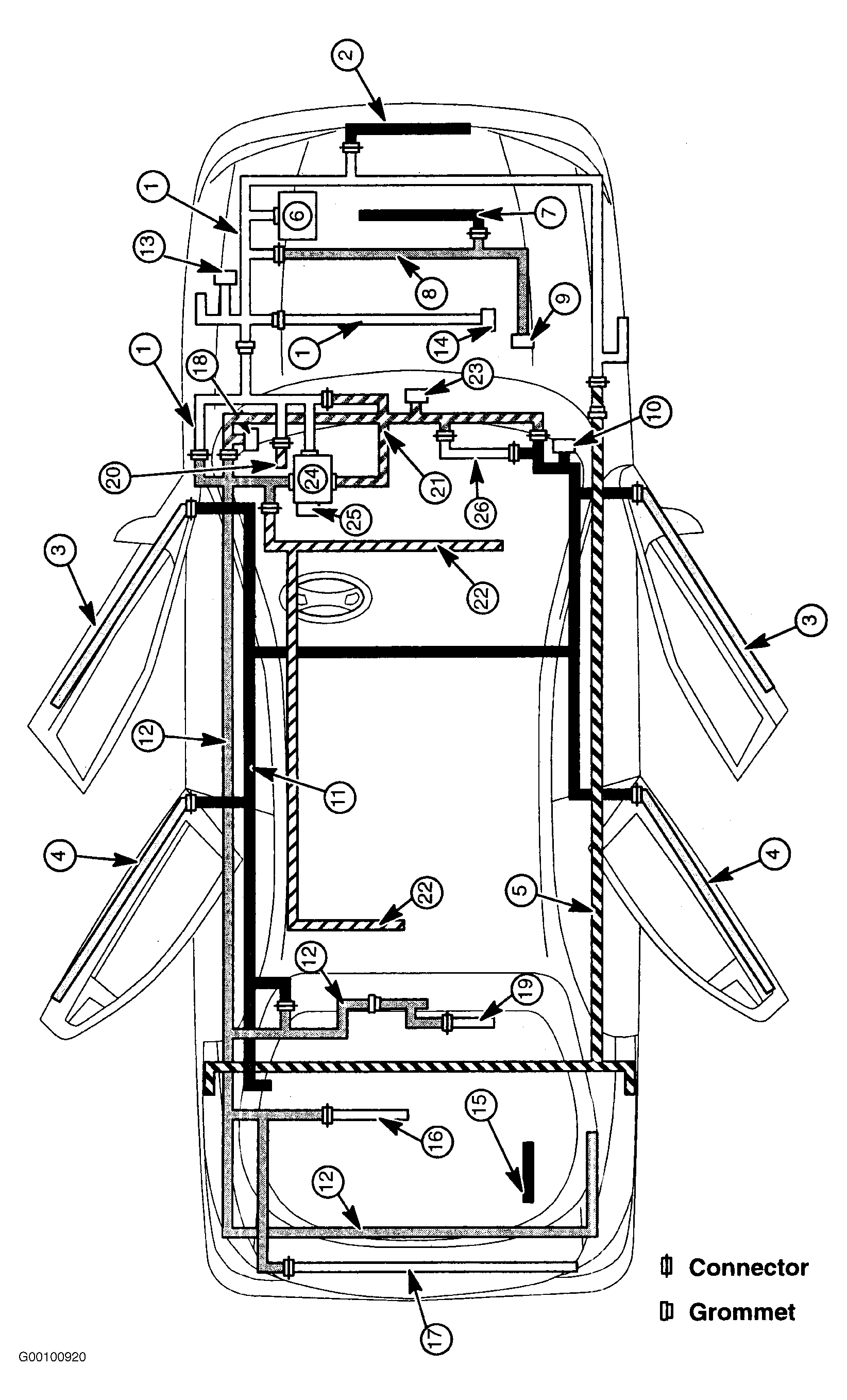

Battery junction box is located on the drivers side of engine compartment, near battery. See Figure and Figure
. Battery junction box may also be referred to power distribution box.
BATTERY JUNCTION BOX FUSE & CIRCUIT IDENTIFICATION
| Fuse Number | Amperage | Circuit |
|---|---|---|
| F1 | 80 | Ignition Relay, Courtesy Lamp Relay, Central Timer Module, Rear Window Defogger Relay |
| F2 | 60 | Cooling Fan Relays |
| F3 | 60 | ABS Control Module, CJB Fuse F37 |
| F4 | 20 | PCM Power Relay, Ignition Transformer, Ignition Transformer Capacitor |
| F5 | 15 | Generator, Fog Lamp |
| F6 | ..... | Not Used |
| F7 | 10 | ABS Control Module |
| F8 | ..... | Not Used |
| F9 | 20 | PCM Power Relay |
| F10 | 20 | Ignition Switch, CJB Fuses, Light Switch |
| F11 | 3 | PCM |
| F12 | 20 | Turn Signal Switch |
| F13 | 20 | Heated Oxygen Sensors |
| F14 | 15 | Inertia Fuel Shut-Off Switch |
| F15 | 7.5 | Headlamp (Right) |
| F16 | 7.5 | Headlamp (Left) |
| F17 | 7.5 | Headlamp (Left) |
| F18 | 7.5 | Headlamp (Right), Instrument Cluster (Lower Option Content Only) |
| F39-F52 | ..... | Not Used |
