Glow Plug Sleeve: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Verify the glow plug bore is completely clean and dry.
Apply Threadlock 262 - sealant to the glow plug sleeve in two places.

Fig 1: Applying Threadlock 262 Sealant To Glow Plug Sleeve In Two Places
Courtesy of FORD MOTOR CO.
Install the glow plug sleeve into the glow plug bore until it bottoms.

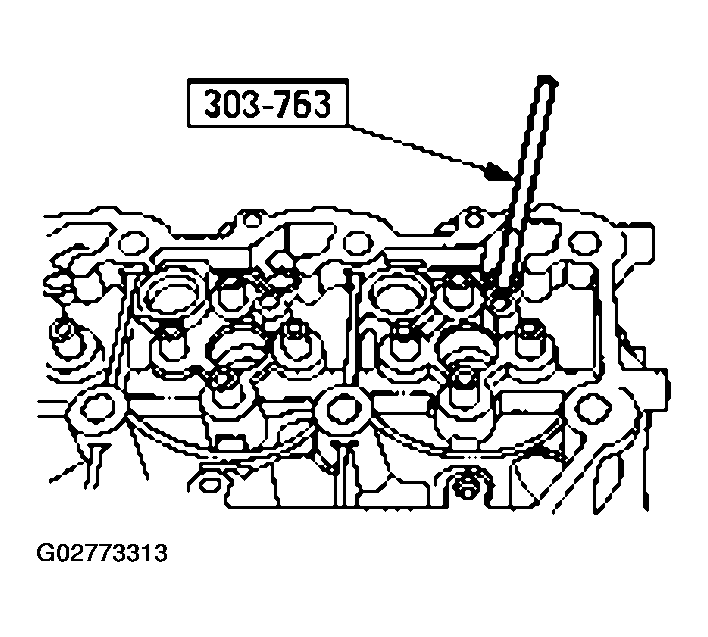

Fig 2: Installing Glow Plug Sleeve Into Glow Plug Bore
Courtesy of FORD MOTOR CO.
Clean the glow plug sleeve after installation with a nylon brush and solvent. Make sure Threadlock 262 - sealant is cleaned out before it hardens.

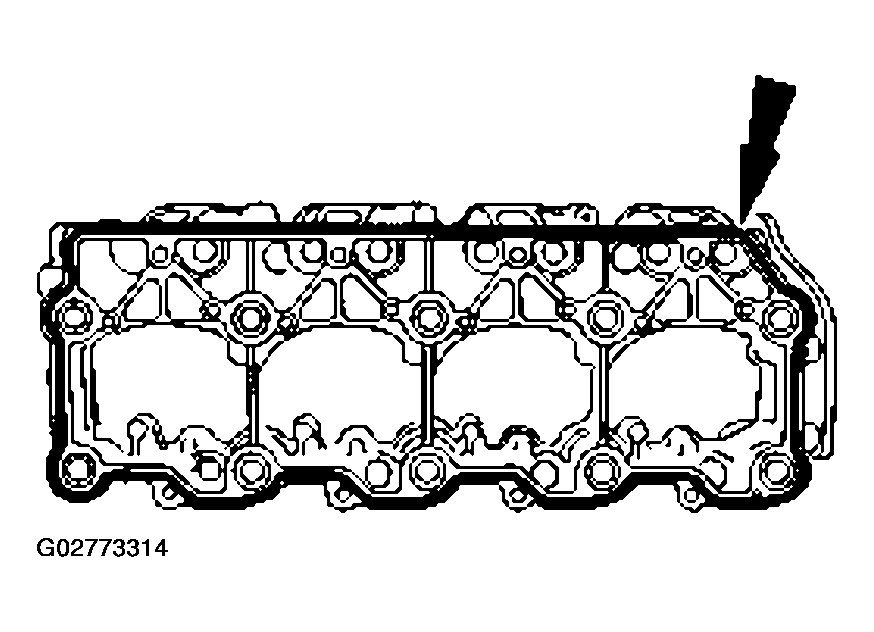

Install the press-in-place gasket.
- Install new dowels in the cylinder head an the gasket.

  Fig 3: Installing New Dowels In Cylinder Head An Gasket
  Courtesy of FORD MOTOR CO.
Position the rocker arm carrier on the cylinder head. Install the bolts.

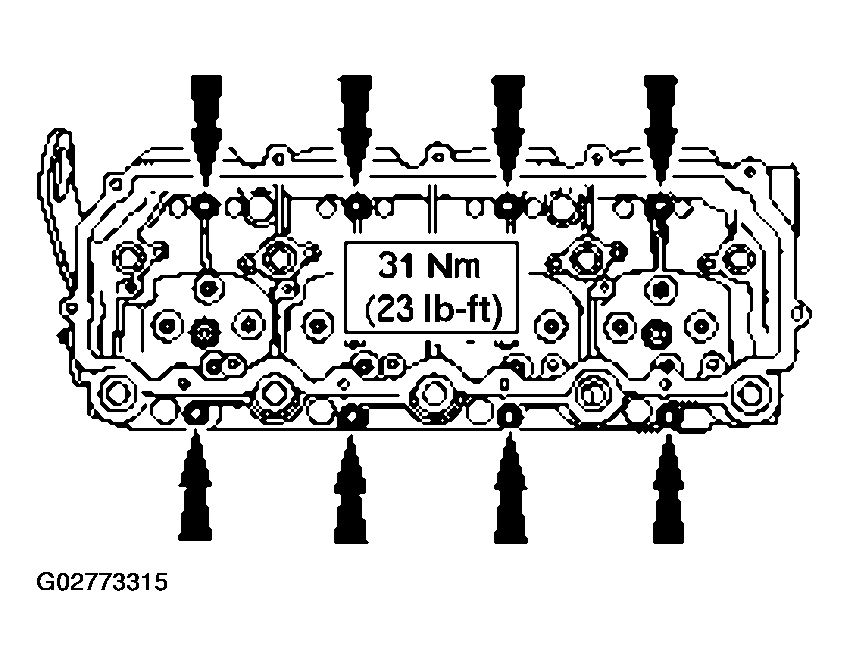

Fig 4: Positioning Rocker Arm Carrier On Cylinder Head
Courtesy of FORD MOTOR CO.
Install the lifting bracket on the cylinder head.
Install the cylinder heads. Refer to ENGINE - 6.0L DIESEL .
