Glow Plug - Late Build: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: LH shown, RH similar.

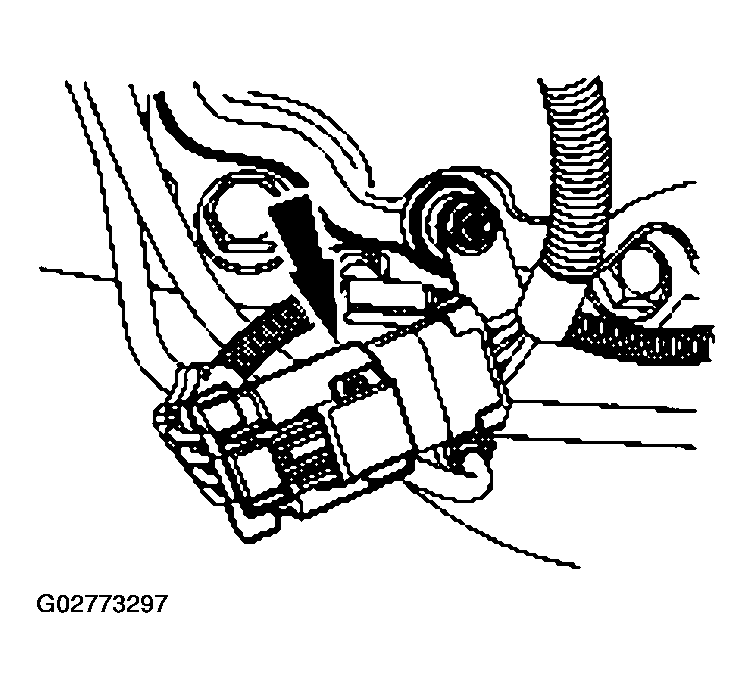

    Fig 1: Disconnecting Glow Plug Electrical Connector
    G02773297Courtesy of FORD MOTOR CO.
  1. Disconnect the glow plug electrical connector.
    2. CAUTION: Do not pull on the wiring to remove the glow plug connector or damage may occur.
    NOTE: Only one glow plug connector shown.
    Fig 2: Removing Glow Plug Harness
    G02773298Courtesy of FORD MOTOR CO.
  2. Remove the glow plug harness.
    3. NOTE: If coolant residue is found on the glow plug, a new glow plug sleeve may have to be installed.

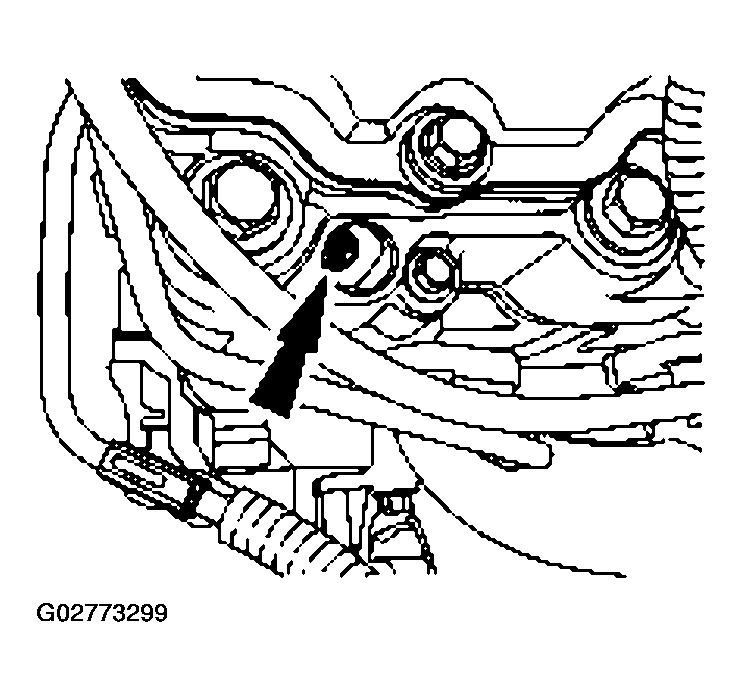

    Fig 3: Removing Glow Plug
    G02773299Courtesy of FORD MOTOR CO.
  3. Refer to GLOW PLUG SLEEVE .

    Remove the glow plug.
