Glow Plug - Late Build: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the glow plug.

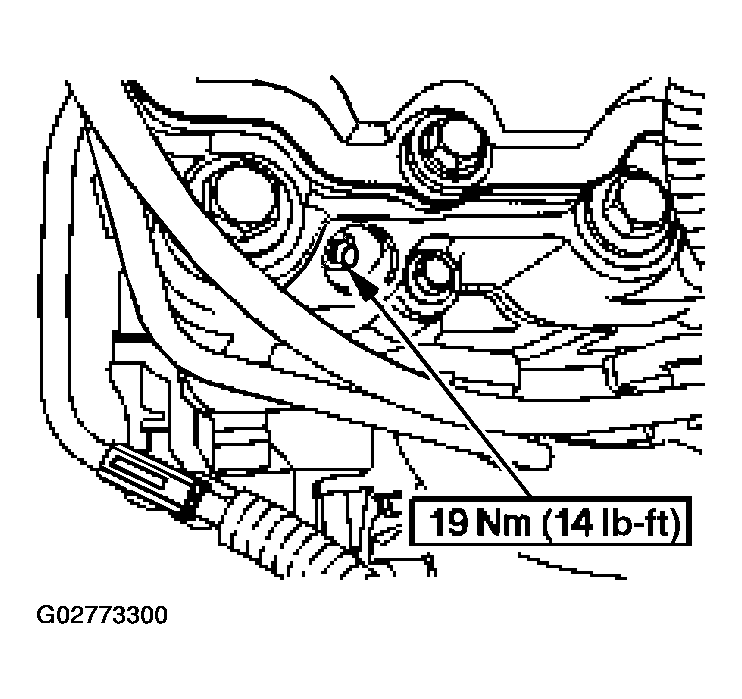

    Fig 1: Installing Glow Plug
    G02773300Courtesy of FORD MOTOR CO.
  2. Clean and inspect the O-rings and install new if necessary.
    • Apply clean engine oil to the O-rings.
      Fig 2: Applying Clean Engine Oil To O-Rings
      G02773301Courtesy of FORD MOTOR CO.
  3. Install the glow plug harness.
    Fig 3: Installing Glow Plug Harness
    G02773302Courtesy of FORD MOTOR CO.
  4. Connect the glow plug electrical connector.

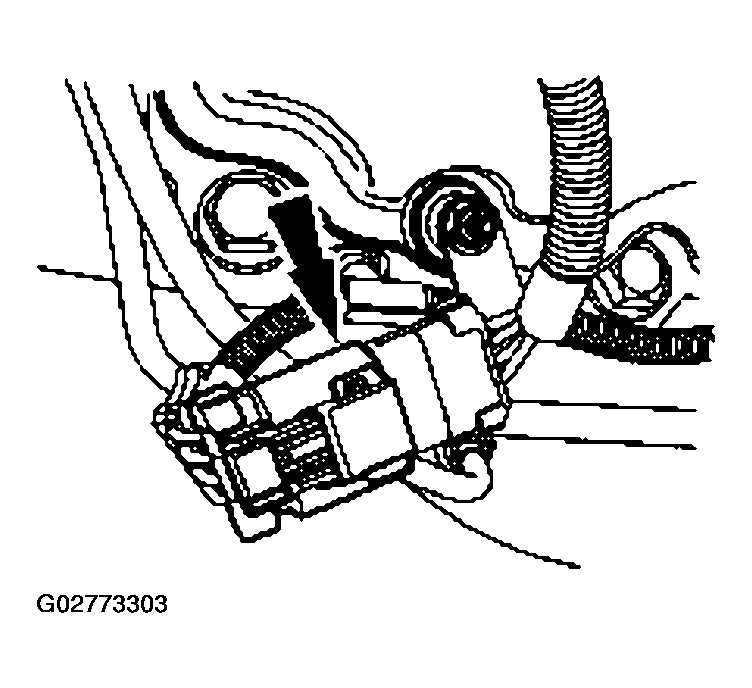

    Fig 4: Connecting Glow Plug Electrical Connector
    G02773303Courtesy of FORD MOTOR CO.
