Glow Plug - Early Build: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All glow plugs

  1. Install the glow plug.

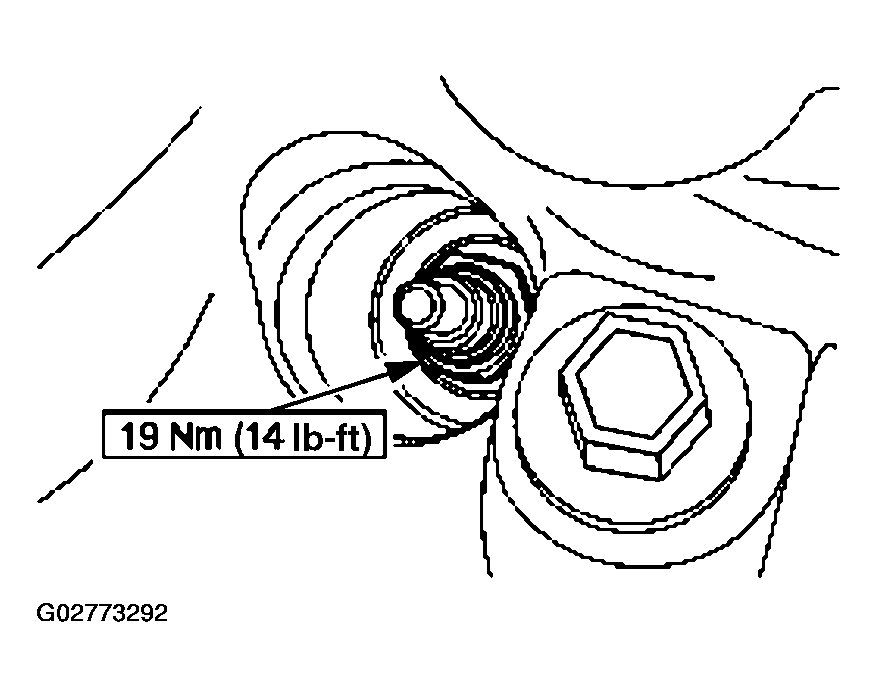

    Fig 1: Installing Glow Plug
    G02773292Courtesy of FORD MOTOR CO.
  2. Clean and apply clean engine oil to the O-rings seals.
    Fig 2: Cleaning And Apply Clean Engine Oil To O-Rings Seals
    G02773293Courtesy of FORD MOTOR CO.
  3. Install the glow plug buss bar.

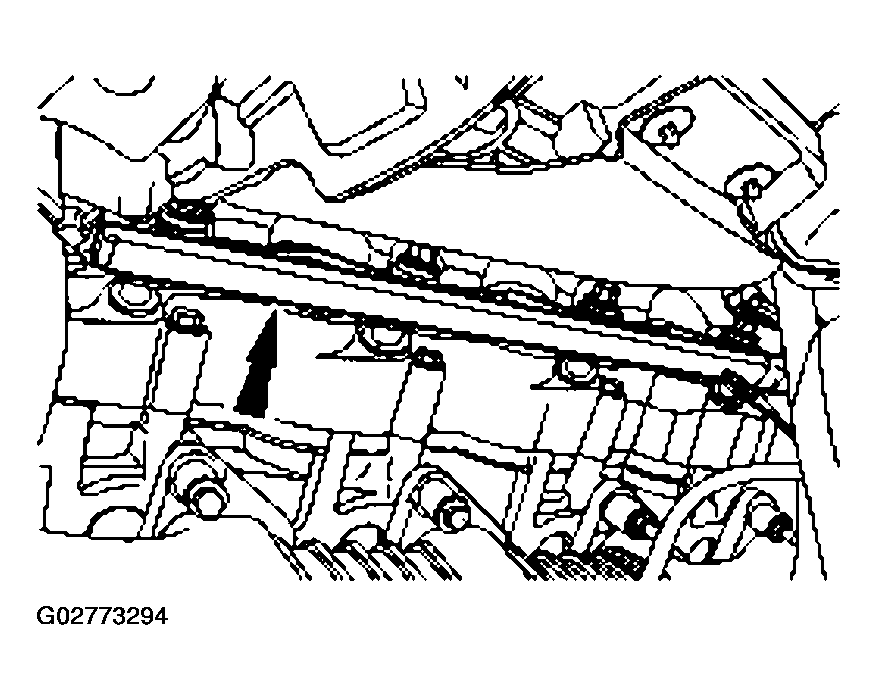

    Fig 3: Installing Glow Plug Buss Bar
    G02773294Courtesy of FORD MOTOR CO.
  4. Connect the glow plug electrical connector.

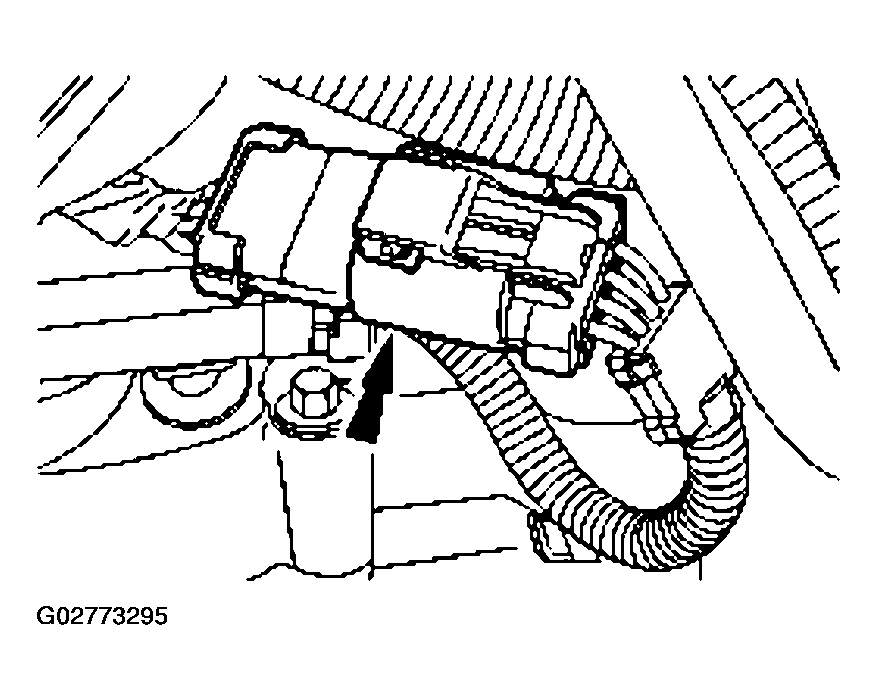

    Fig 4: Connecting Glow Plug Electrical Connector
    G02773295Courtesy of FORD MOTOR CO.

    RH glow plugs

  5. Apply RTV silicone sealant to the edge of the evaporator case that was trimmed for glow plug buss bar removal.
  6. Install the RH splash shield. Refer to FRONT END BODY PANELS .
  7. Position back the transmission indicator tube and install a new M6 retaining nut.

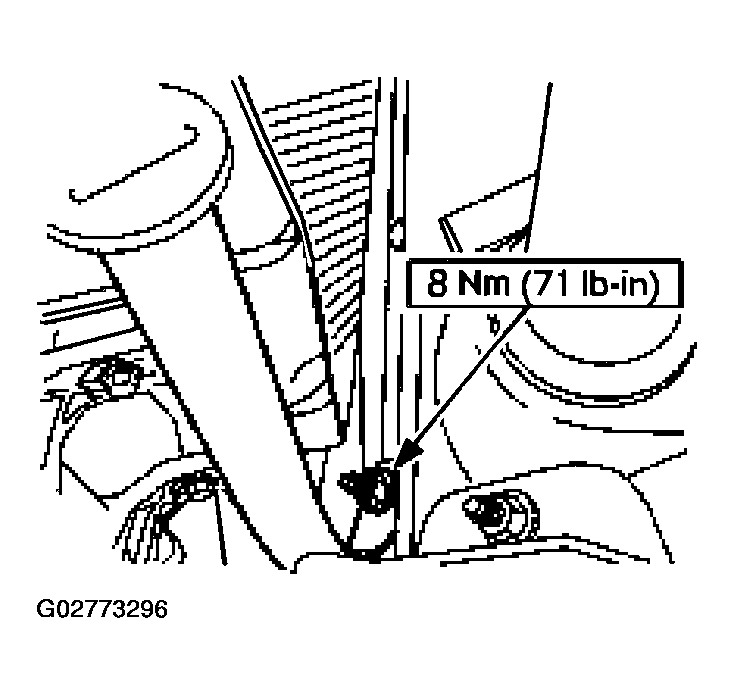

    Fig 5: Positioning Back Transmission Indicator Tube
    G02773296Courtesy of FORD MOTOR CO.
