Glow Plugs - PCM-Controlled
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

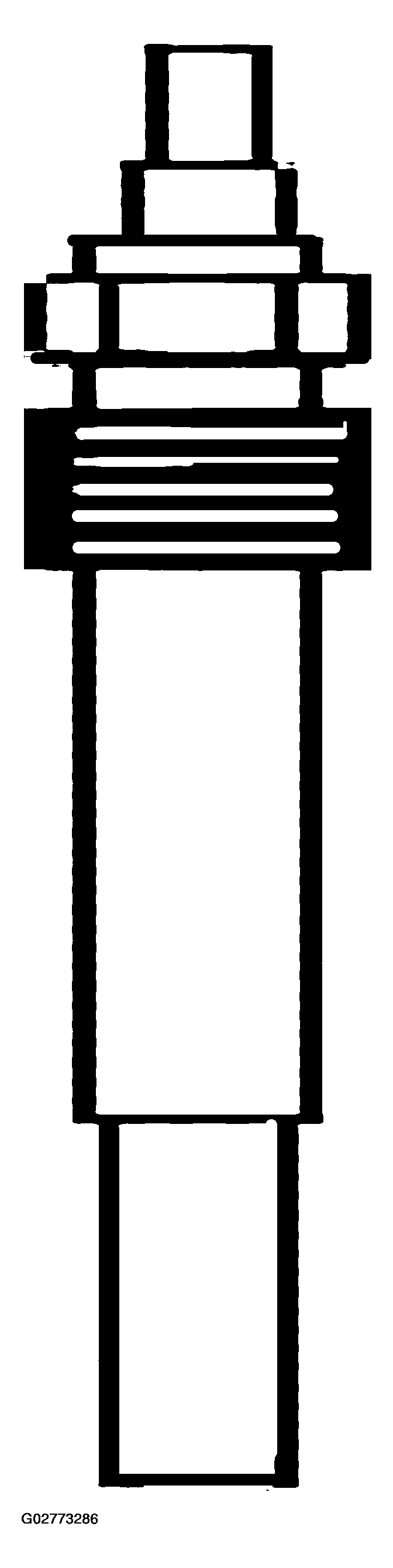

The glow plugs are located in the cylinder heads (6049), under the glow plug buss bar (14B112).
The glow plugs are self-regulating. If the engine oil temperature is above 55°C (131°F), the powertrain control module will bulb-check the WAIT TO START lamp but not energize the glow plug relay.
The glow plug ON time varies from 0-120 seconds depending on battery voltage, engine oil temperature and barometric pressure.
The glow plug control monitor (GPCM) system is designed to find failed glow plugs or failed wiring in the glow plug system.
