Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the turbocharger. Refer to TURBOCHARGER .
    2. NOTE: Late production shown, early production similar.

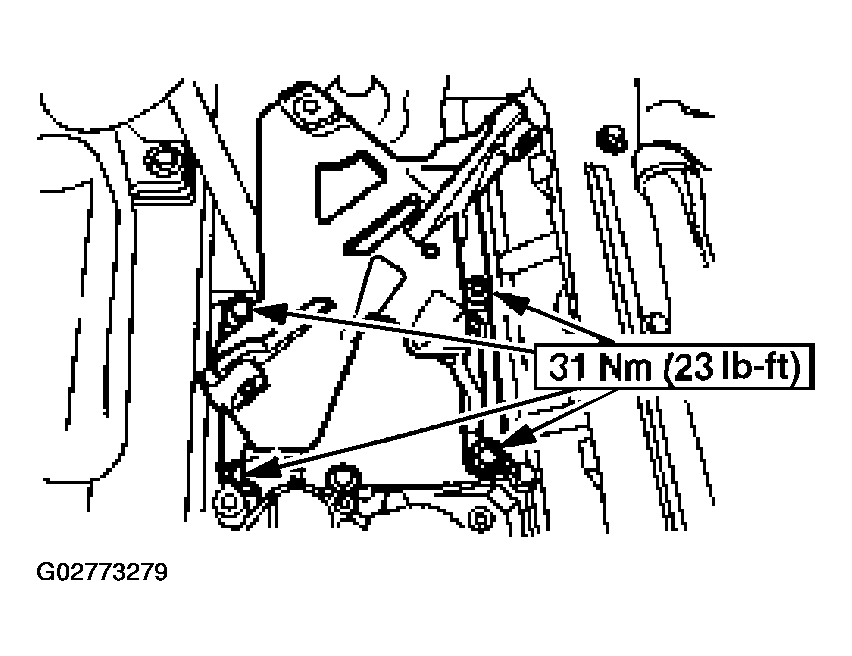

    Fig 1: Remove Bolts Of Turbocharger Pedestal
    G02773279Courtesy of FORD MOTOR CO.
  2. Remove the bolts and the turbocharger pedestal.
  3. To install, reverse the removal procedure.
