Removal and Installation
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air cleaner assembly. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
- Add Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent meeting Ford specification WSS-M97B51-A1 (yellow color). Always fill the cooling system with the same type of coolant that was drained from the system. Do not mix coolant types.
- Do not add orange-colored Motorcraft Specialty Orange Engine Coolant VC-2, or equivalent meeting WSS-M97B44-D. Mixing coolants may degrade the coolant's corrosion protection.
- Do not add alcohol, methanol, brine, or any engine coolants mixed with alcohol or methanol antifreeze. These can cause engine damage from overheating or freezing.

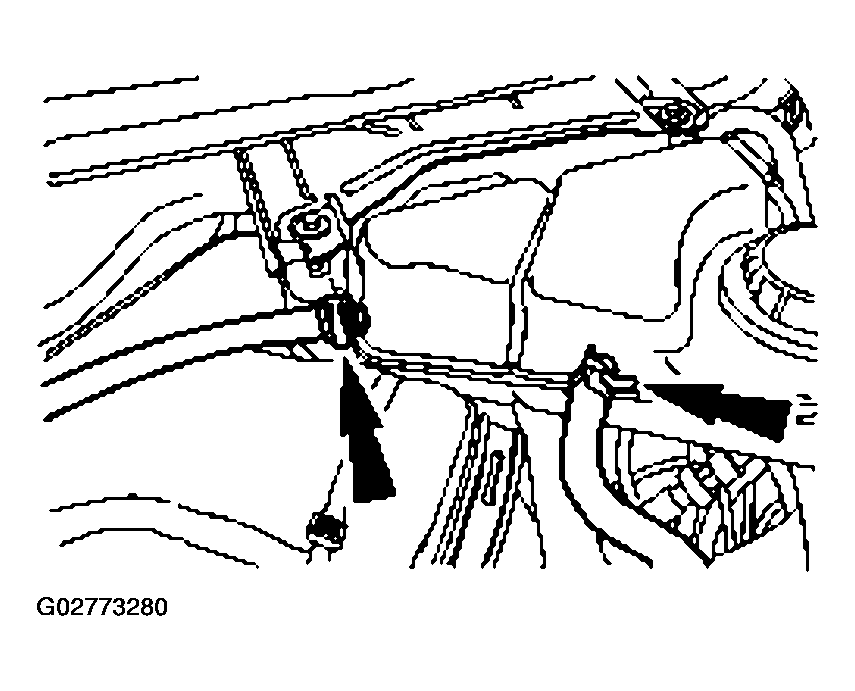

- Disconnect the engine vent and radiator vent hoses.

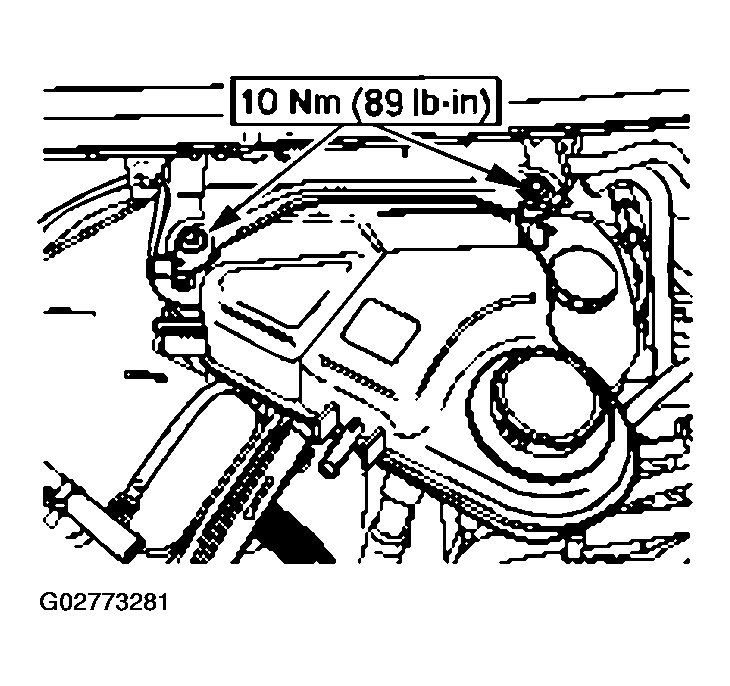

- Remove the bolts and position the degas bottle aside.

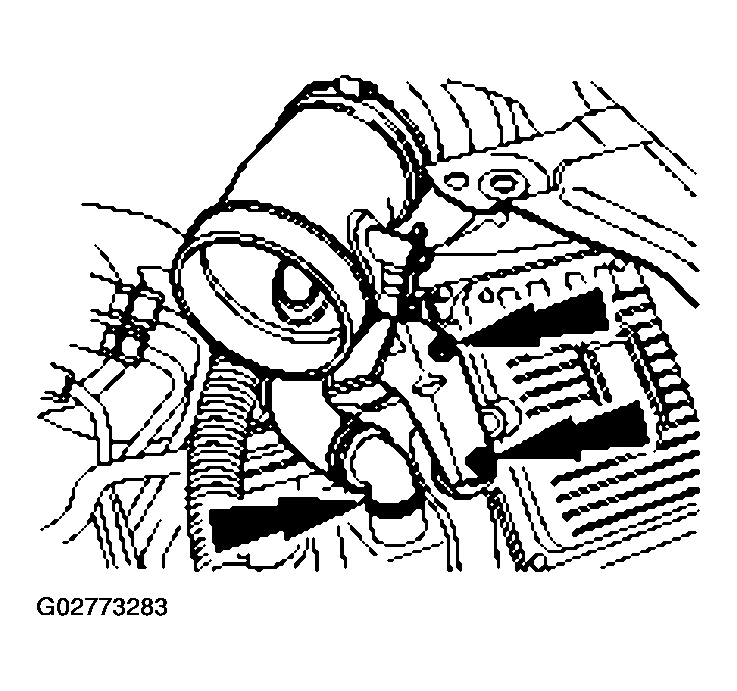

- Loosen the clamp at the turbocharger.
- Remove the nuts and the turbocharger intake tube.
- To install, reverse the removal procedure.
WARNING:
Never remove the pressure radiator relief cap while the engine is hot. Failure to follow these instructions can result in damage to the cooling system or engine or result in personal injury. To avoid having scalding hot coolant or steam blow out of the degas bottle when removing the pressure relief cap, wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap and turn it slowly. Step back while the pressure is released from the cooling system. When certain all the pressure has been released, (still with a cloth) turn and remove the pressure relief cap. Failure to follow these instructions can result in personal injury.
CAUTION:
The coolant must be recovered in a suitable, clean container for reuse. If the coolant is contaminated, it must be recycled or disposed of correctly and system filled with new coolant.
CAUTION:
Always fill the cooling system with the same type of coolant that was drained from the system. Do not mix coolant types.
CAUTION:
Engine coolant provides freeze protection, boil protection, cooling efficiency and corrosion protection to the engine and cooling components. In order to obtain these protections, the engine coolant must be maintained at the correct concentration and fluid level in the degas bottle.
When adding engine coolant, use a 50/50 mixture of engine coolant and distilled water.
To maintain the integrity of the coolant and the cooling system:
When adding engine coolant, use a 50/50 mixture of engine coolant and distilled water.
To maintain the integrity of the coolant and the cooling system:
NOTE:
Late production shown, early production similar.
