Check Axial End Play

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Radial shaft movement cannot readily be measured on this turbocharger.
  1. Position the dial indicator on the turbine end of the radial shaft and zero the indicator.
  2. Move the radial shaft back and forth by hand and record the reading.

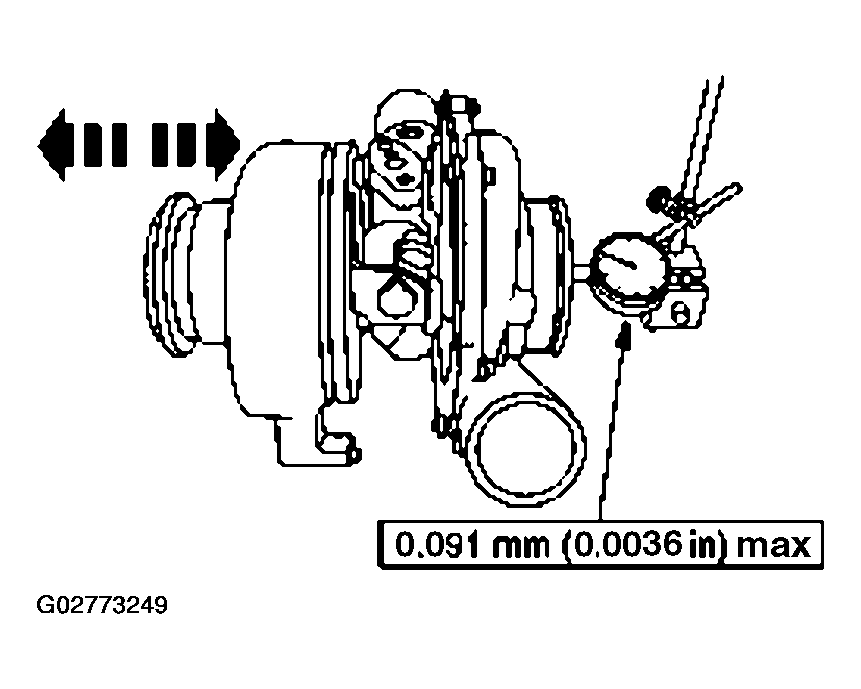

    Fig 1: Moving Radial Shaft Back And Forth
    G02773249Courtesy of FORD MOTOR CO.
  3. If readings exceed specifications, install a new turbocharger.
