Throttle Body - Spacer: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited, resulting in possible personal injury.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the air cleaner outlet tube and the accelerator cable splash shield. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Drain the engine cooling system. Refer to ENGINE COOLING .
  4. Disconnect the accelerator cable.
    1. Disconnect the speed control actuator.
    2. Disconnect the accelerator cable.
    3. Remove the acceleration control return spring.
      Fig 1: Disconnecting Accelerator Cable
      G02773095Courtesy of FORD MOTOR CO.
  5. Remove the accelerator cable bracket.
    1. Remove the bolts.
    2. Remove the accelerator cable bracket.

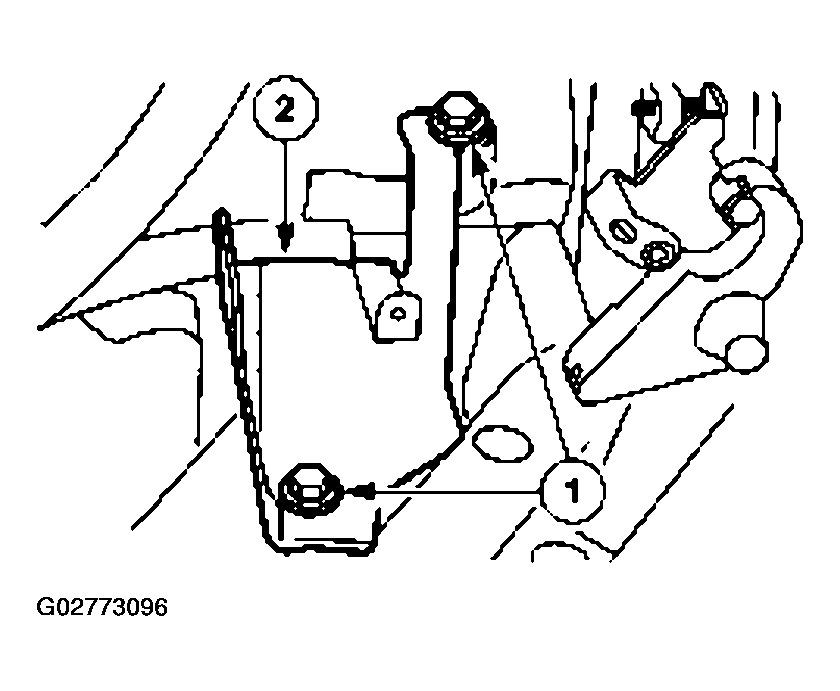

      Fig 2: Removing Accelerator Cable Bracket
      G02773096Courtesy of FORD MOTOR CO.
  6. Disconnect the positive crankcase ventilation (PCV) tube and the vacuum hoses.

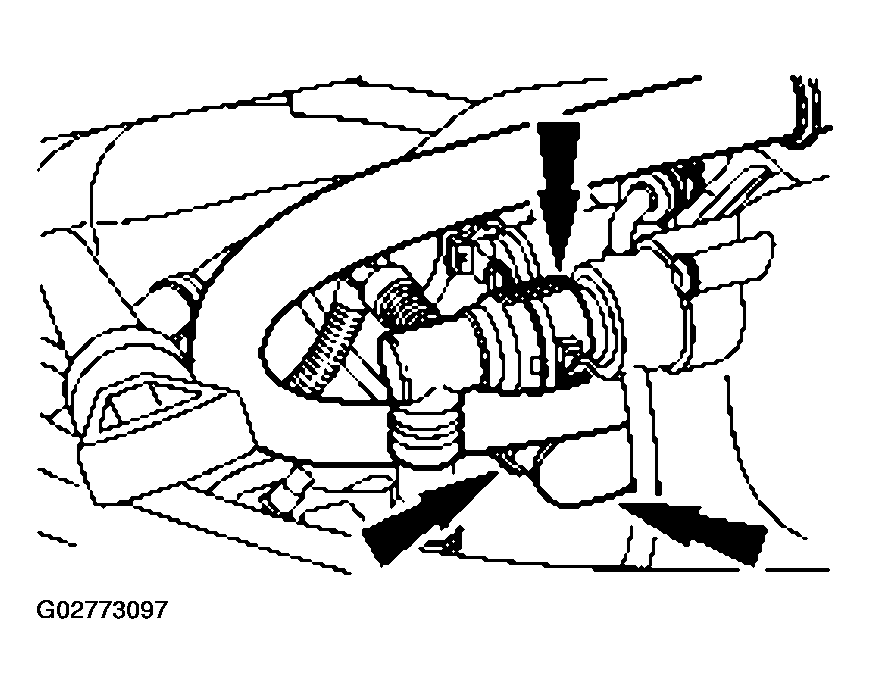

    Fig 3: Disconnecting Positive Crankcase Ventilation (PCV) Tube And Vacuum Hoses
    G02773097Courtesy of FORD MOTOR CO.
  7. Disconnect the heated PCV coolant hoses.

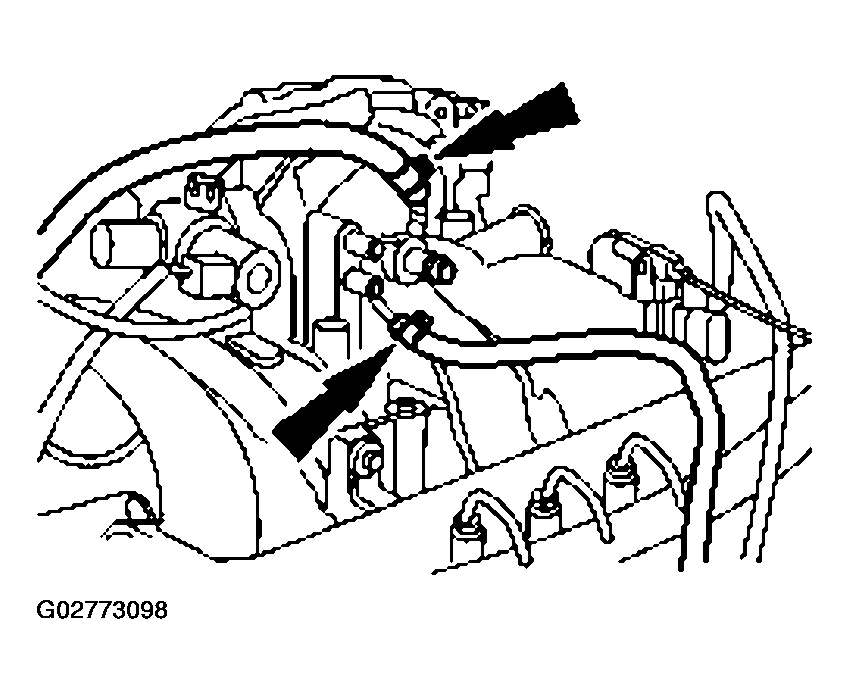

    Fig 4: Disconnecting Heated PCV Coolant Hoses
    G02773098Courtesy of FORD MOTOR CO.
  8. Disconnect the vacuum hose from the throttle body (TB).
    Fig 5: Disconnecting Vacuum Hose From Throttle Body (TB)
    G02773099Courtesy of FORD MOTOR CO.
  9. Disconnect the hose and electrical connector from the idle air control (IAC) valve.

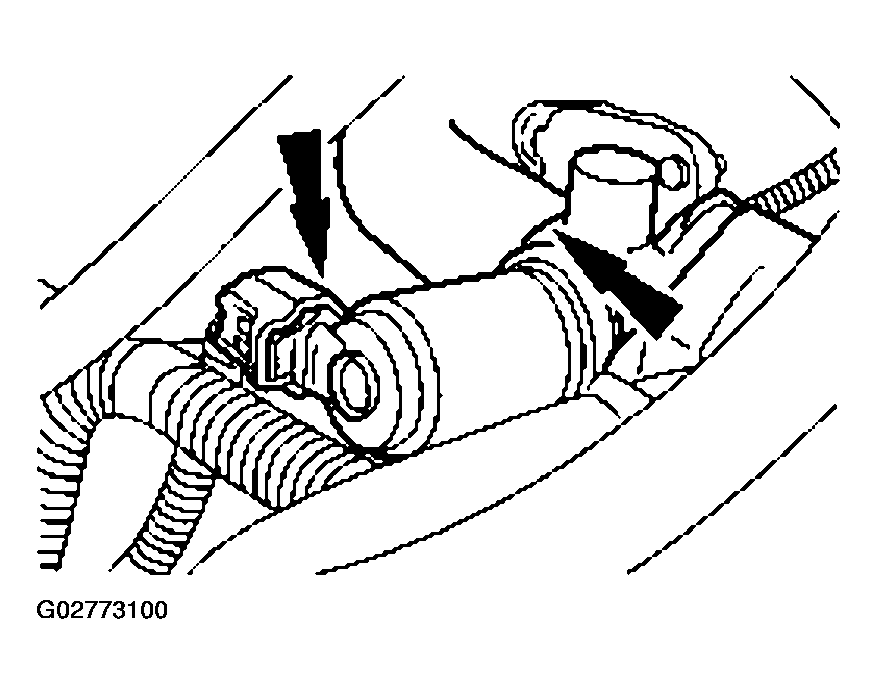

    Fig 6: Disconnecting Hose And Electrical Connector From Idle Air Control (IAC) Valve
    G02773100Courtesy of FORD MOTOR CO.
  10. Disconnect the throttle position (TP) sensor electrical connector.

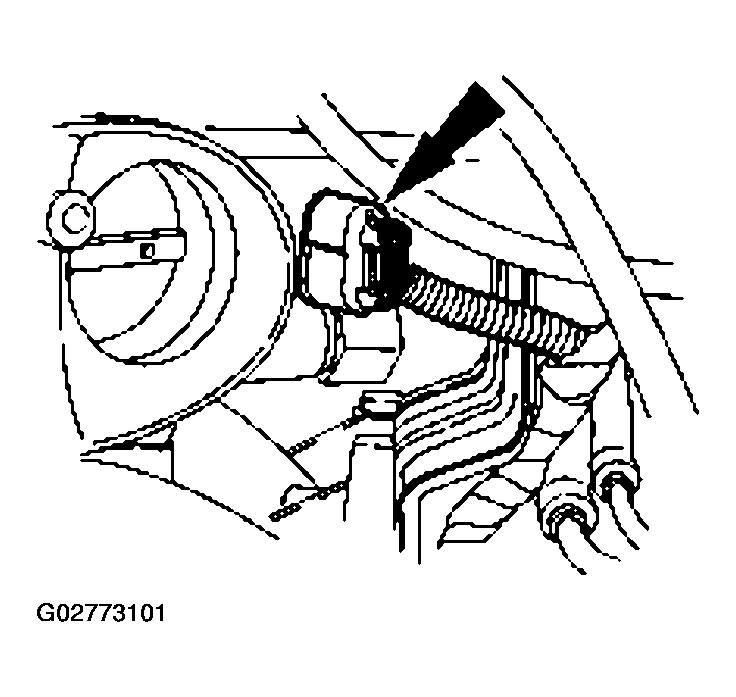

    Fig 7: Disconnecting Throttle Position (TP) Sensor Electrical Connector
    G02773101Courtesy of FORD MOTOR CO.
  11. Remove the four bolts and the TB spacer.
    • Discard the TB spacer gasket.

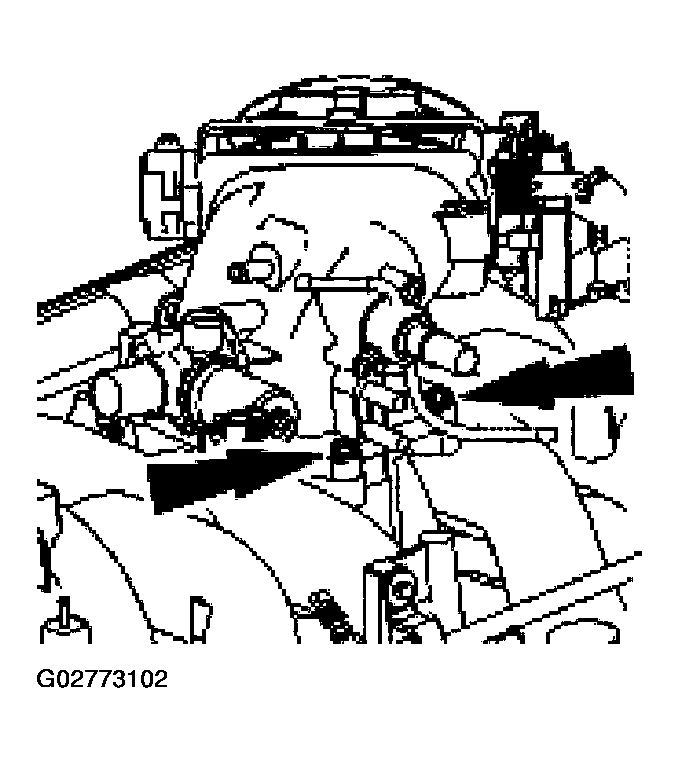

      Fig 8: Removing Bolts Of TB Spacer
      G02773102Courtesy of FORD MOTOR CO.
