Supply Manifold: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Check for fuel leakage after installation is complete.

NOTE: Be sure fuel injectors and fuel injection supply manifold are fully seated.

NOTE: Lubricate the new O-ring seals with engine oil.

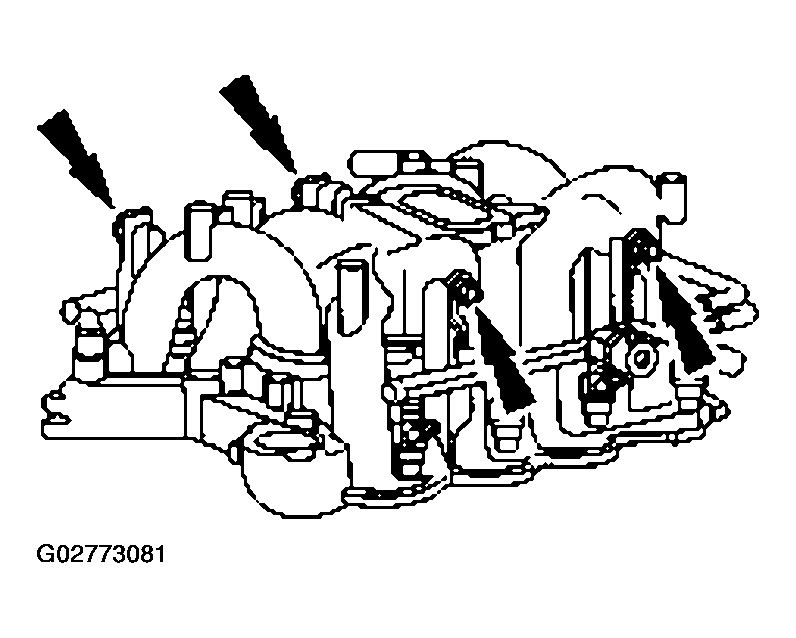

Fig 1: Identifying Fuel Injectors And Fuel Injection Supply Manifold

Courtesy of FORD MOTOR CO.

Fig 2: Disconnecting EGR Vacuum Hose

Courtesy of FORD MOTOR CO.

Follow the removal procedure in reverse order.
