Pressure Relief Valve: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve and tighten.

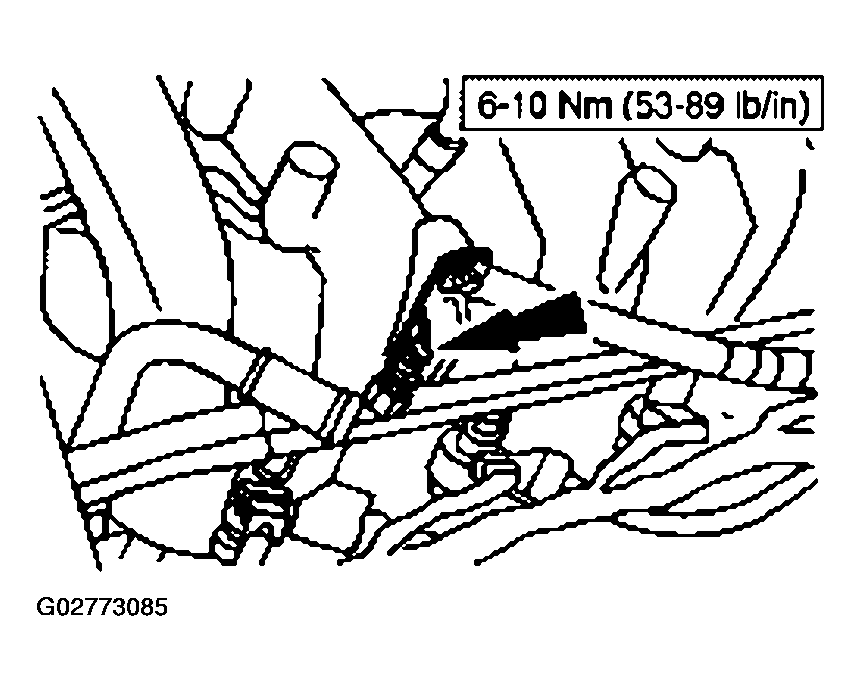

    Fig 1: Installing Pressure Relief Valve
    G02773085Courtesy of FORD MOTOR CO.
  2. Connect the battery ground cable.
  3. Perform the post-service procedures. Refer to FUEL SYSTEM-GENERAL INFORMATION - GASOLINE & DIESEL .
