Water Pump - Gasoline Engines: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
  2. Remove the engine cooling fan and clutch. Refer to COOLING FAN - BLADE, CLUTCH AND SHROUD, 5.4L, 6.8L .
  3. Remove the drive belt.
  4. Remove the coolant pump pulley.
    1. Remove the bolts.
    2. Remove the coolant pump pulley.

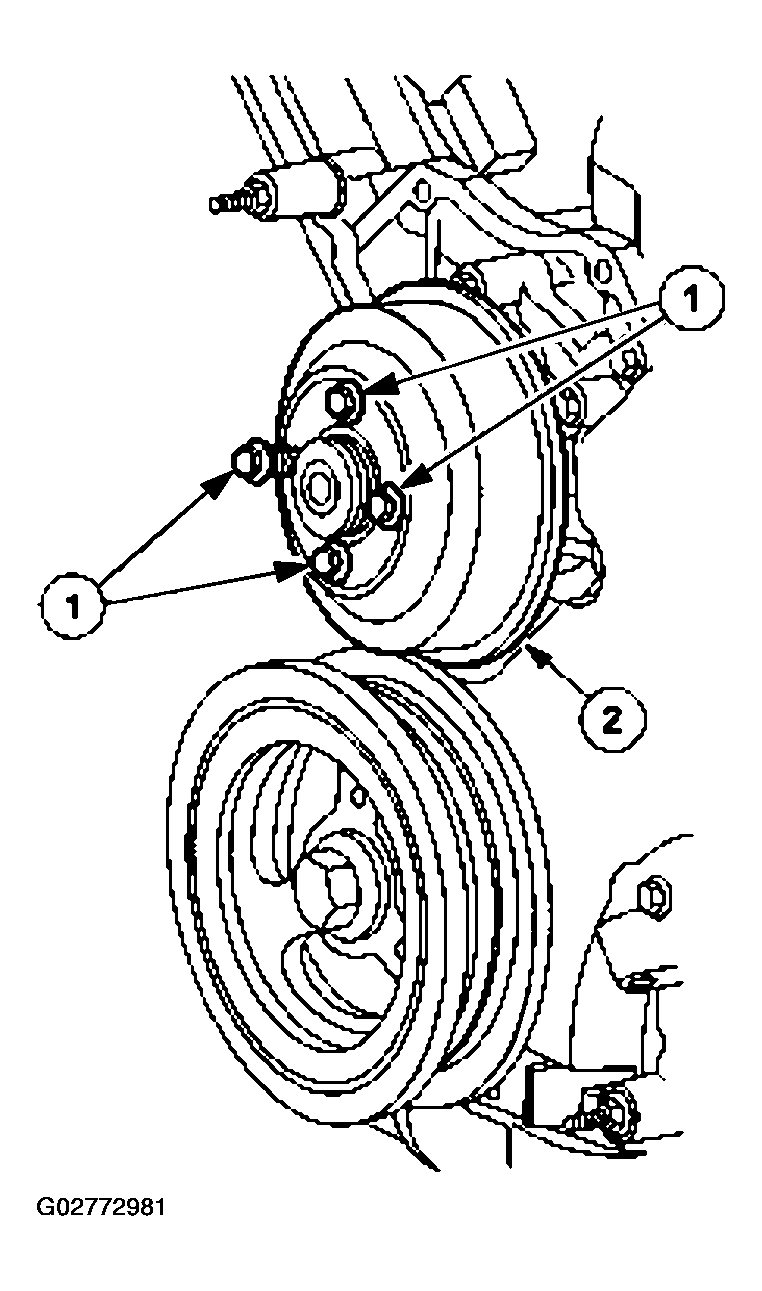

      Fig 1: Removing Coolant Pump Pulley
      G02772981Courtesy of FORD MOTOR CO.
  5. Remove the bolts.
    Fig 2: Removing Bolts
    G02772982Courtesy of FORD MOTOR CO.
  6. Remove the (A) coolant pump from the (B) cylinder block.
    • Clean and inspect the mating surfaces.
      Fig 3: Removing Coolant Pump From Cylinder Block
      G02772983Courtesy of FORD MOTOR CO.
