Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
Remove the radiator and shroud assembly.
Disconnect the cooling fan electrical connector. Unclip and position the fan wiring aside.

Fig 1: Disconnecting Cooling Fan Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Use a hole in the fan hub to prevent the fan from turning.

Fig 2: Loosening Cooling Fan And Clutch

Courtesy of FORD MOTOR CO.

Using the special tool, loosen the cooling fan and clutch.
Remove the cooling fan assembly.
Remove the stator bolts and the stator.

Fig 3: Removing Cooling Fan Assembly
Courtesy of FORD MOTOR CO.
Rotate the accessory drive belt tensioner clockwise and position the drive belt aside.

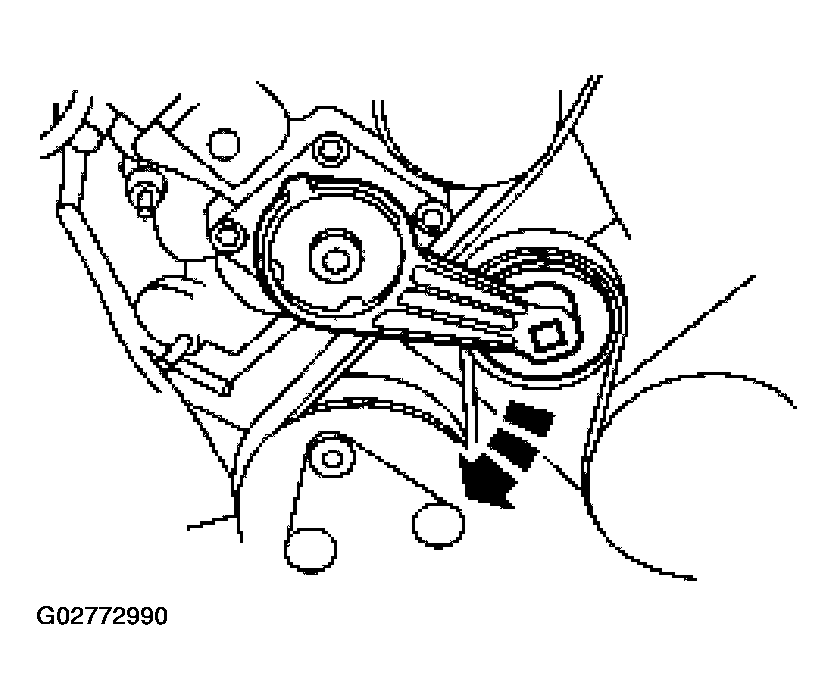

Fig 4: Rotating Accessory Drive Belt Tensioner
Courtesy of FORD MOTOR CO.
Remove the bolts and the coolant pump pulley.

Fig 5: Removing Bolts And Coolant Pump Pulley
Courtesy of FORD MOTOR CO.
Remove the bolts and the coolant pump.
- Remove and discard the O-ring seal.

  Fig 6: Removing Bolts And Coolant Pump
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Clean and inspect the coolant pump mounting.
