Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator assembly. Refer to RADIATOR - 6.0L DIESEL .
  2. Disconnect the cooling fan clutch electrical connector. Unclip and position the fan wiring aside.
    Fig 1: Disconnecting Cooling Fan Clutch Electrical Connector
    G02773017Courtesy of FORD MOTOR CO.
    3. NOTE: Use a hole in the fan hub to prevent the fan from turning.

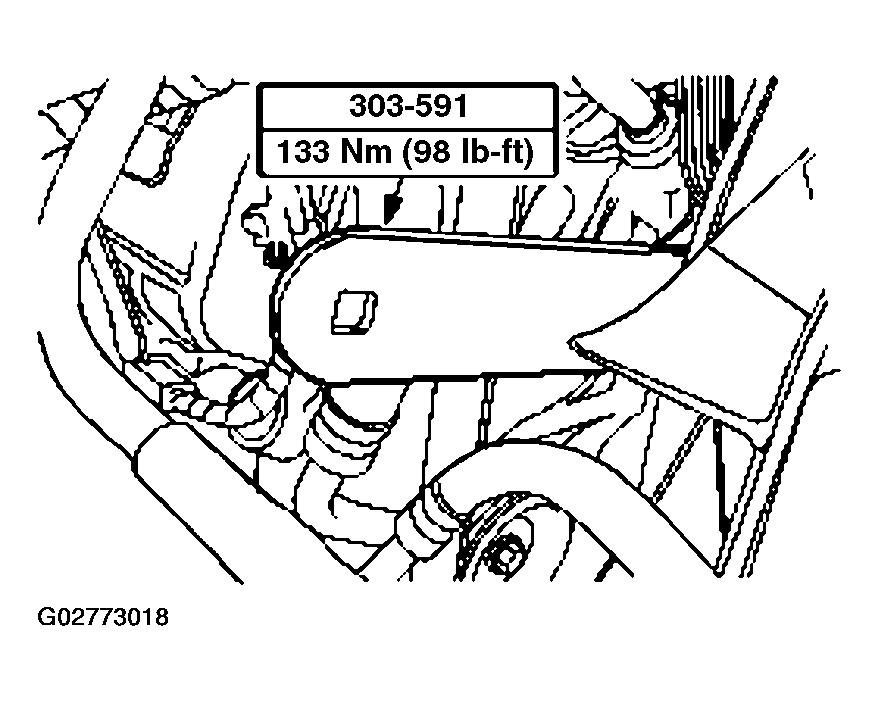

    Fig 2: Removing Cooling Fan And Clutch
    G02773018Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the cooling fan and clutch.
  4. Remove the cooling fan and clutch assembly.
  5. If necessary, remove the bolts and separate the cooling fan and the clutch.
    Fig 3: Removing Cooling Fan And Clutch Assembly
    G02773019Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
