Valve Cover - LH: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
Remove the engine air cleaner and the air cleaner outlet tube. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
Remove the crankcase ventilation tube from the valve cover.

Fig 1: Removing Crankcase Ventilation Tube From Valve Cover
Courtesy of FORD MOTOR CO.
Disconnect the LH fuel injector electrical connections and the LH ignition coil electrical connections.

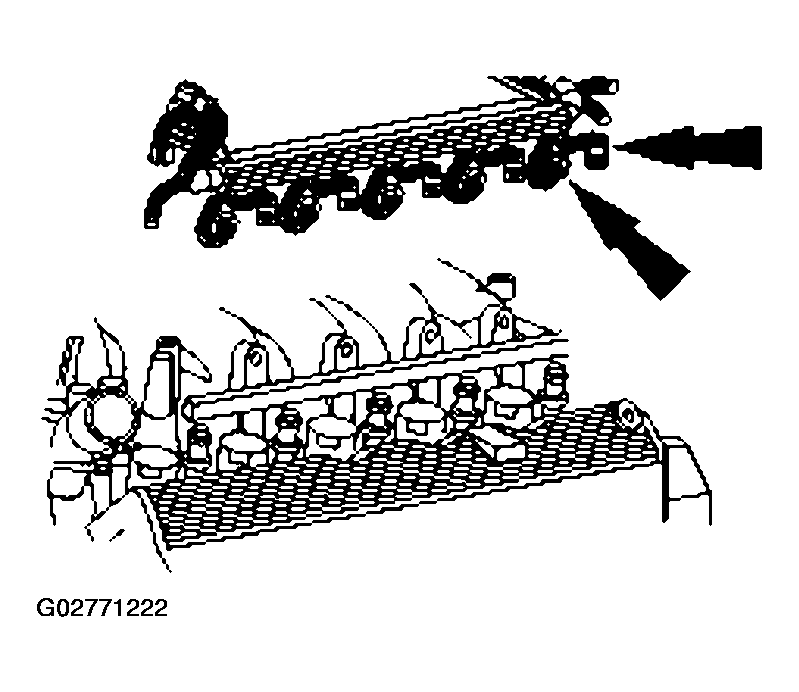

Fig 2: Disconnecting LH Fuel Injector Electrical Connections And LH Ignition Coil Electrical Connections
Courtesy of FORD MOTOR CO.
Remove the engine harness bracket.
1. Remove the retaining nuts.
2. Remove the bracket from the studs and position the bracket aside.

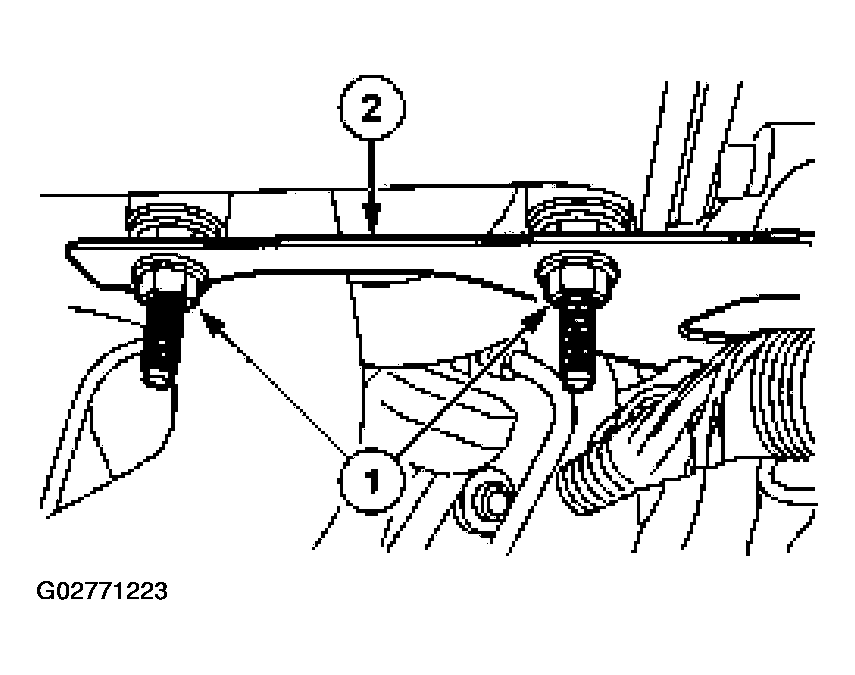

  Fig 3: Removing Engine Harness Bracket
  Courtesy of FORD MOTOR CO.
Lift the fuel charging wiring off the valve cover studs.

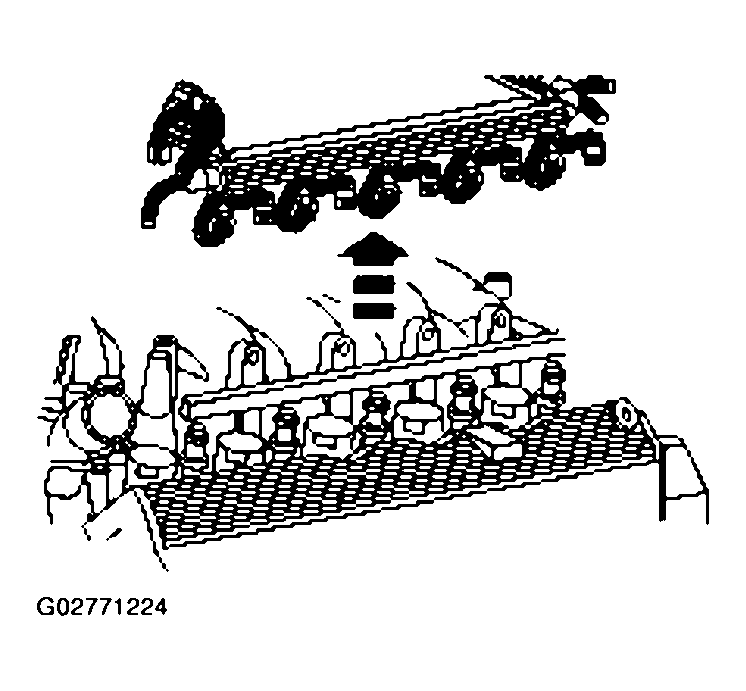

Fig 4: Lifting Fuel Charging Wiring Off Valve Cover Studs
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

NOTE: The intake manifold is shown removed for clarity.

NOTE: The bolts are part of the valve cover and should not be removed.

Remove the LH valve cover.
- Fully loosen the bolts and remove the valve cover.
- Inspect the valve cover gasket and clean the mating surface of the cylinder head.

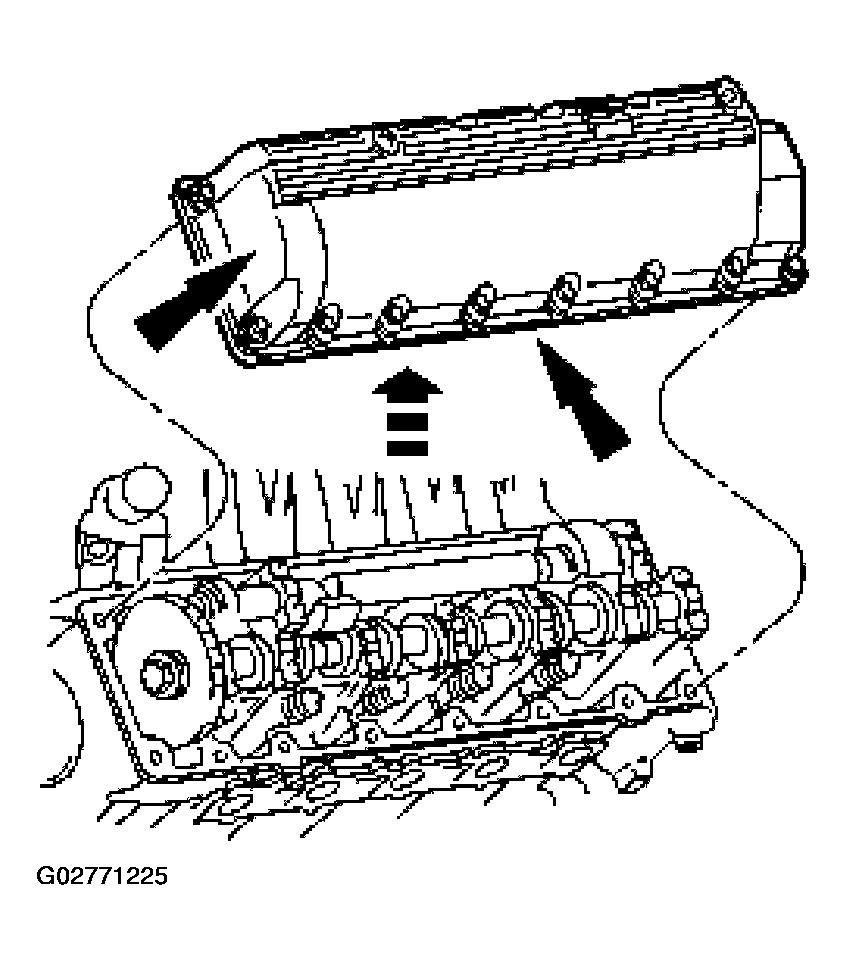

  Fig 5: Removing LH Valve Cover
  Courtesy of FORD MOTOR CO.
