Valve Cover - LH: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: If not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface prep and silicone gasket remover. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
    Fig 1: Applying Bead Of Silicone Gasket And Sealant In Two Places Where Engine Front Cover Meets Cylinder Head
    G02771226Courtesy of FORD MOTOR CO.
  1. Apply a bead of silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
  2. Position the valve cover and the valve cover gasket on the cylinder head and loosely install the bolts.

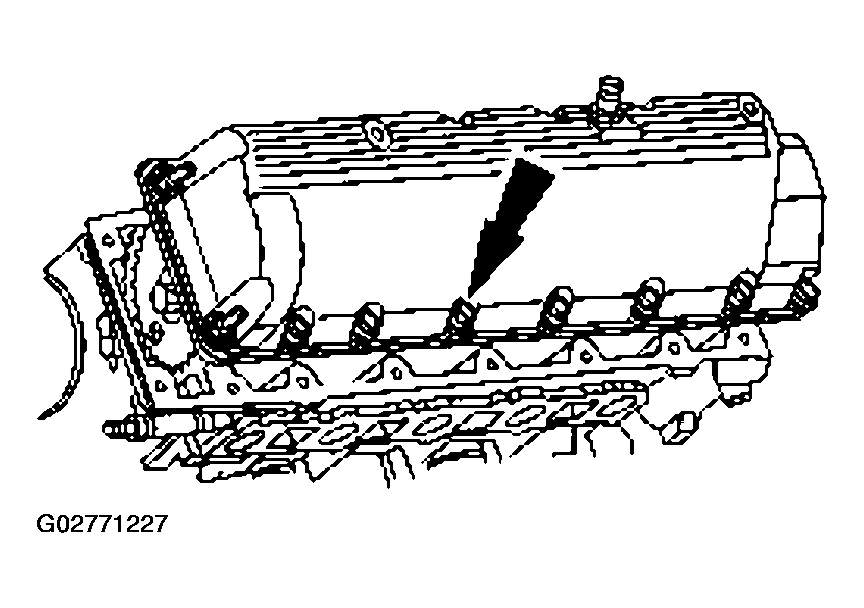

    Fig 2: Positioning Valve Cover And Valve Cover Gasket On Cylinder Head
    G02771227Courtesy of FORD MOTOR CO.
  3. Tighten the bolts in the sequence shown.

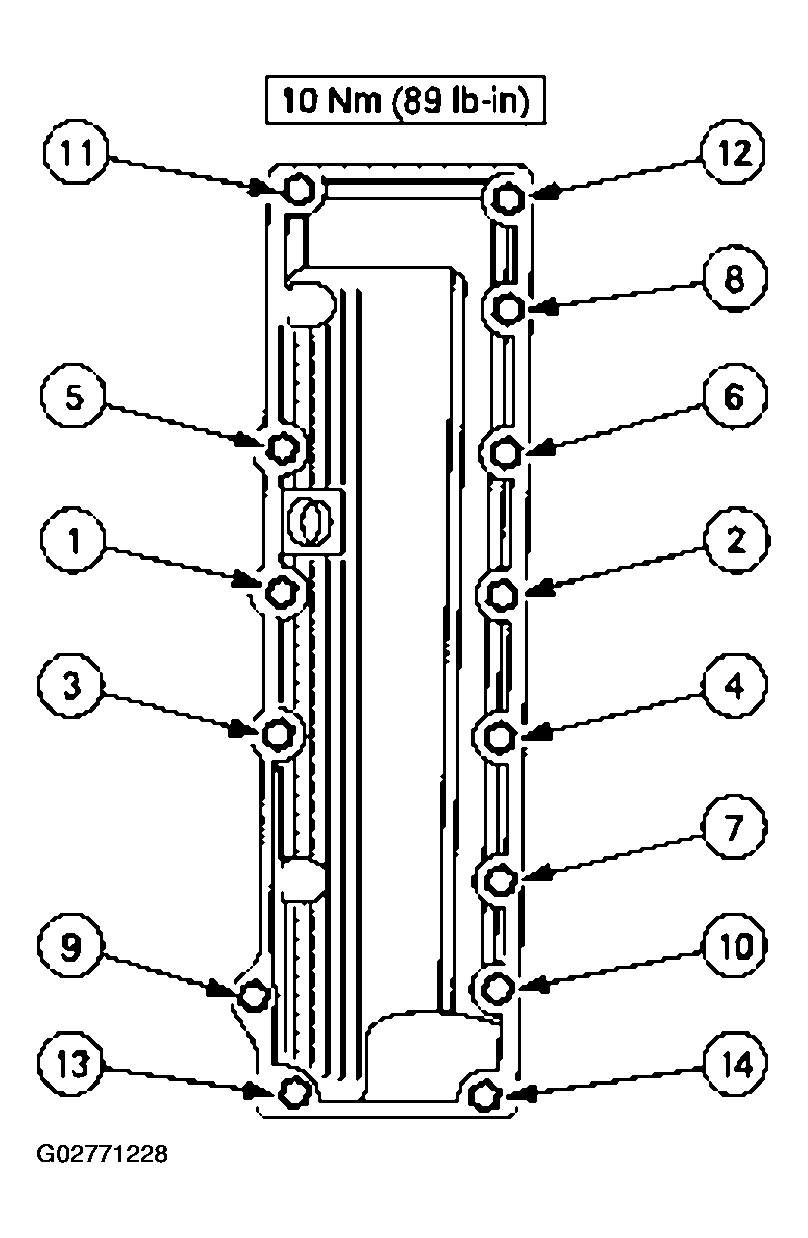

    Fig 3: Identifying Tightening Sequence Of LH Valve Cover Bolts
    G02771228Courtesy of FORD MOTOR CO.
  4. Position the fuel charging wiring onto the valve cover studs.

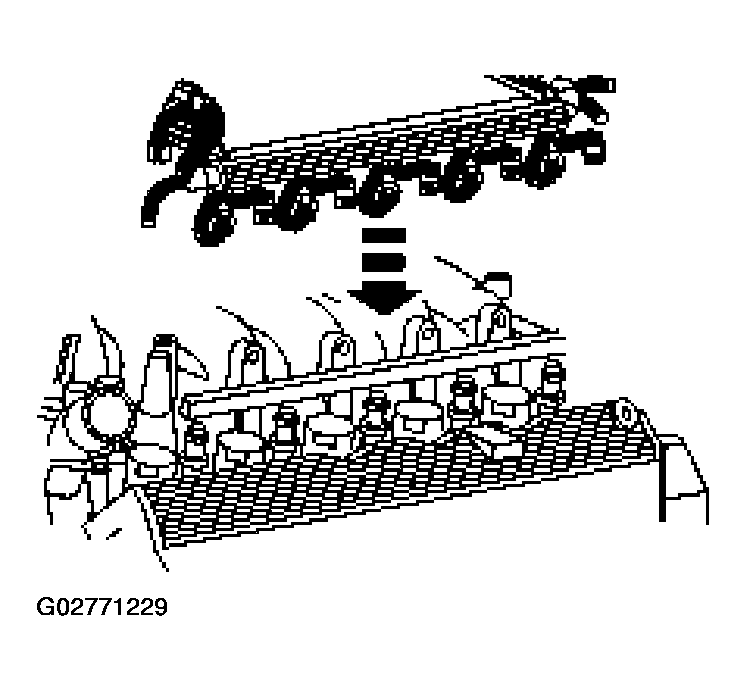

    Fig 4: Positioning Fuel Charging Wiring Onto Valve Cover Studs
    G02771229Courtesy of FORD MOTOR CO.
  5. Connect the LH ignition coil electrical connectors and the LH fuel injector electrical connectors.

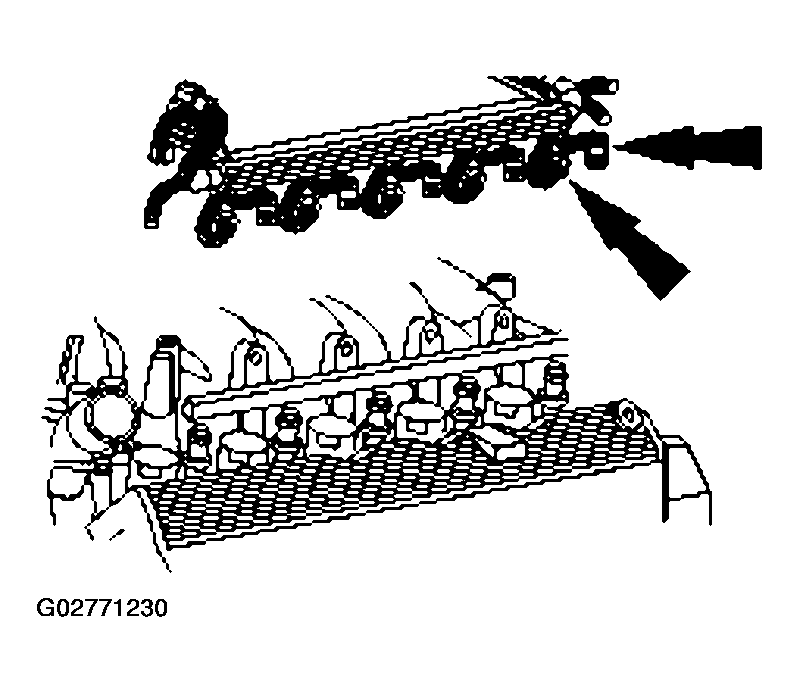

    Fig 5: Connecting LH Ignition Coil Electrical Connectors And LH Fuel Injector Electrical Connectors
    G02771230Courtesy of FORD MOTOR CO.
  6. Connect the crankcase ventilation tube to the valve cover.
    Fig 6: Connecting Crankcase Ventilation Tube To Valve Cover
    G02771231Courtesy of FORD MOTOR CO.
  7. Install the engine bracket.
    1. Install the bracket on the studs.
    2. Install the retaining nuts. Tighten the retaining nuts securely.

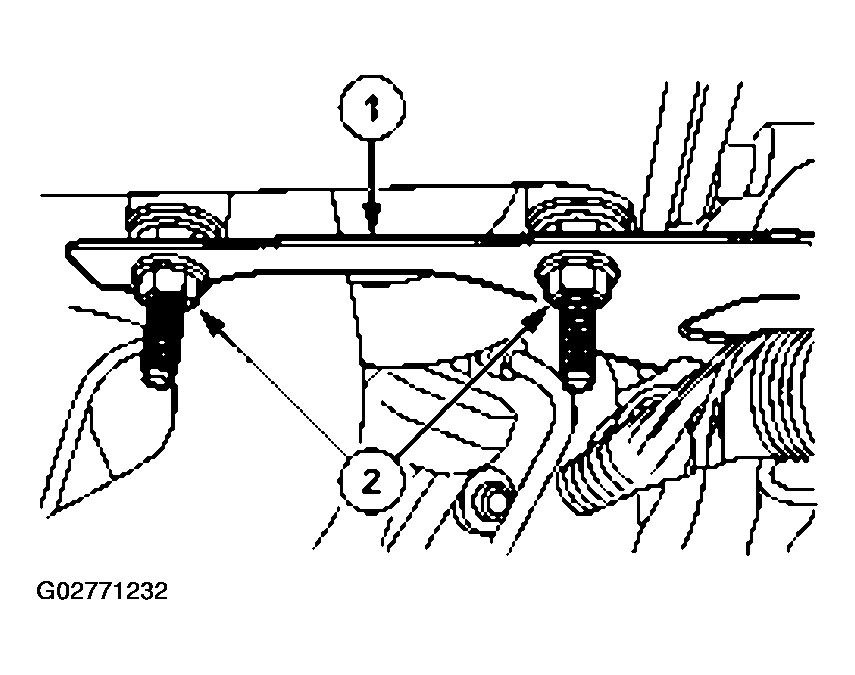

      Fig 7: Installing Engine Bracket
      G02771232Courtesy of FORD MOTOR CO.
  8. Install the engine air cleaner and engine air cleaner outlet tube. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  9. Connect the battery ground cable.
